Ball Bearings-Miniature Ball Bearings-Miniature ball bearings, CHROME STEEL AISI52100, INCH sizes - 1602

Part Number 1602
System of Measurement Inch
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Open
Bore Dia 0.25"
Bore Dia Tolerance -0.0003" to 0"
Outer Dia 0.6875"
Outer Dia Tolerance -0.0003" to 0"
Width 0.25"
Width Tolerance -0.005" to 0"
Ring Material 52100 Chrome Steel
Ball Material 52100 Chrome Steel
Cage Material 300 Series Stainless Steel
Dynamic Radial Load 635 lbf
Static Radial Load 240 lbf
Max Speed (X1000 rpm) 5
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -86 to 230 °F
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.00008" to 0.00051"
RoHS Compliant
Weight 6.3 g

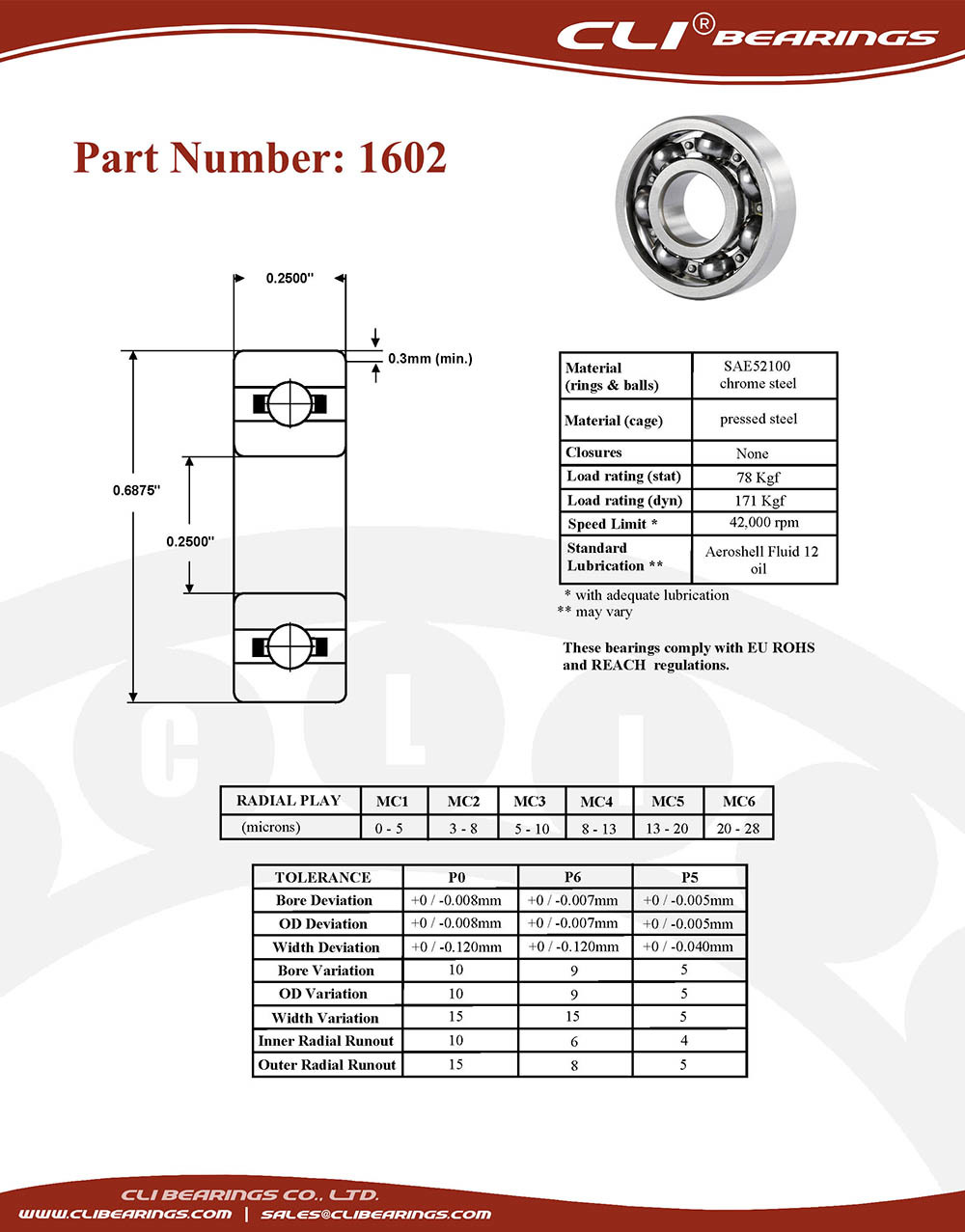

Original 1602 miniature bearing 1 4x11 16x1 4 0 25 x 0 6875 x 0 25   cli bearings co ltd nw
