Ball Bearings-Miniature Ball Bearings-Miniature ball bearings, CHROME STEEL AISI52100, INCH sizes - 1606-2RS

Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Sealed
Part Number 1606-2RS
For Shaft Diameter 0.375"
Bore Dia (d) 0.375" | 9.525 mm
Bore Dia Tolerance -0.008mm to 0
For Housing ID 0.9062"
Outer Dia (D) 0.9062" | 23.017 mm
Outer Dia Tolerance -0.009mm to 0
Width (B) 0.3125" | 7.938 mm
Width Tolerance -0.120mm to 0
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (lbs) 750
Static Load Rating (Cor) (lbs) 320
Max Speed (Grease) (X1000 RPM) 5
Max Speed (Oil) (X1000 RPM)  6
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.002mm to 0.013mm
RoHS Compliant
Ball Qty
Ball Dia
Weight (grams) 21.8

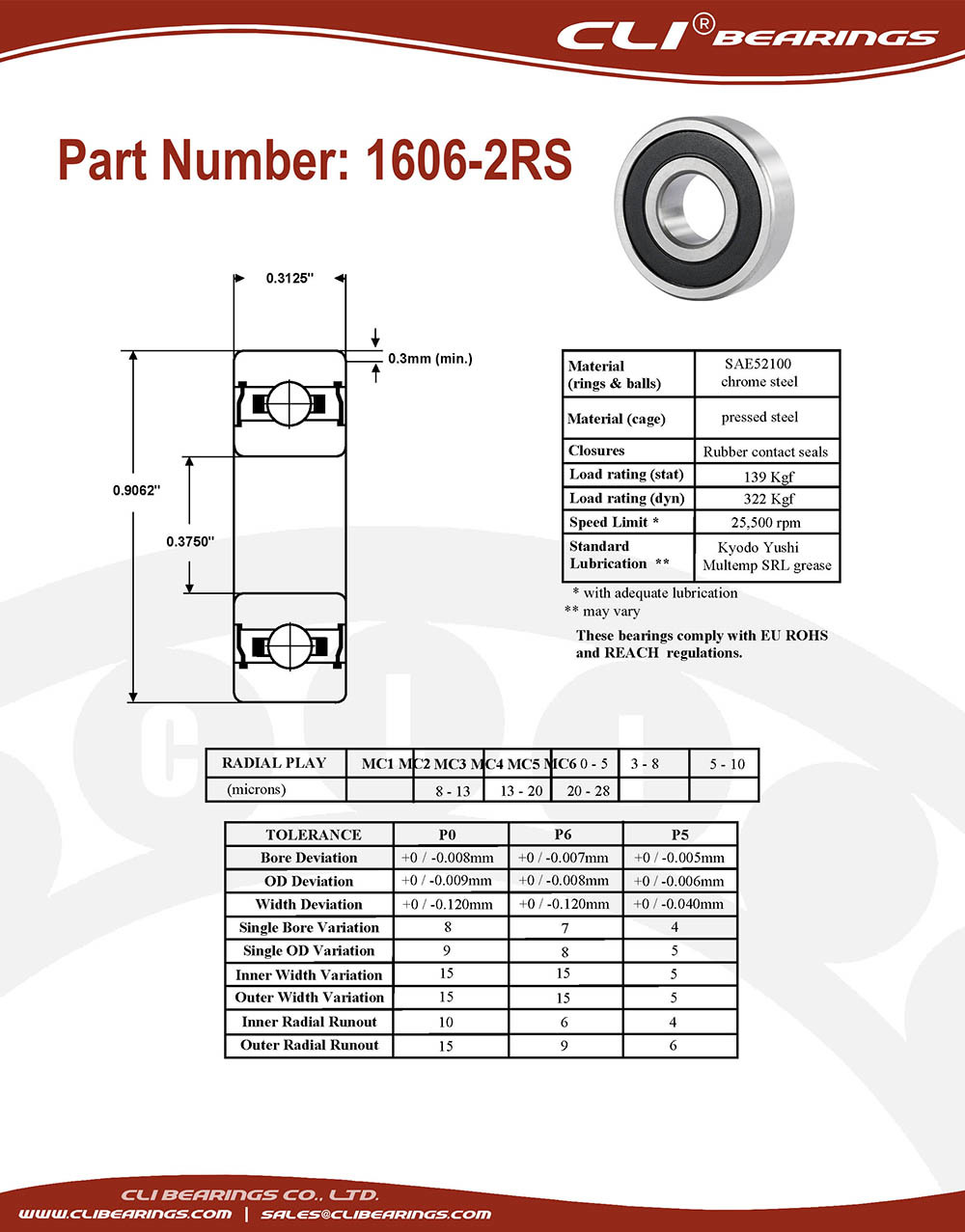

Original 1606 2rs bearing 3 8x29 32x5 16 0 375 x 0 9062 x 0 3125   cli bearings co ltd nw
