Ball Bearings-Miniature Ball Bearings-Miniature ball bearings, CHROME STEEL AISI52100, METRIC sizes - 601X

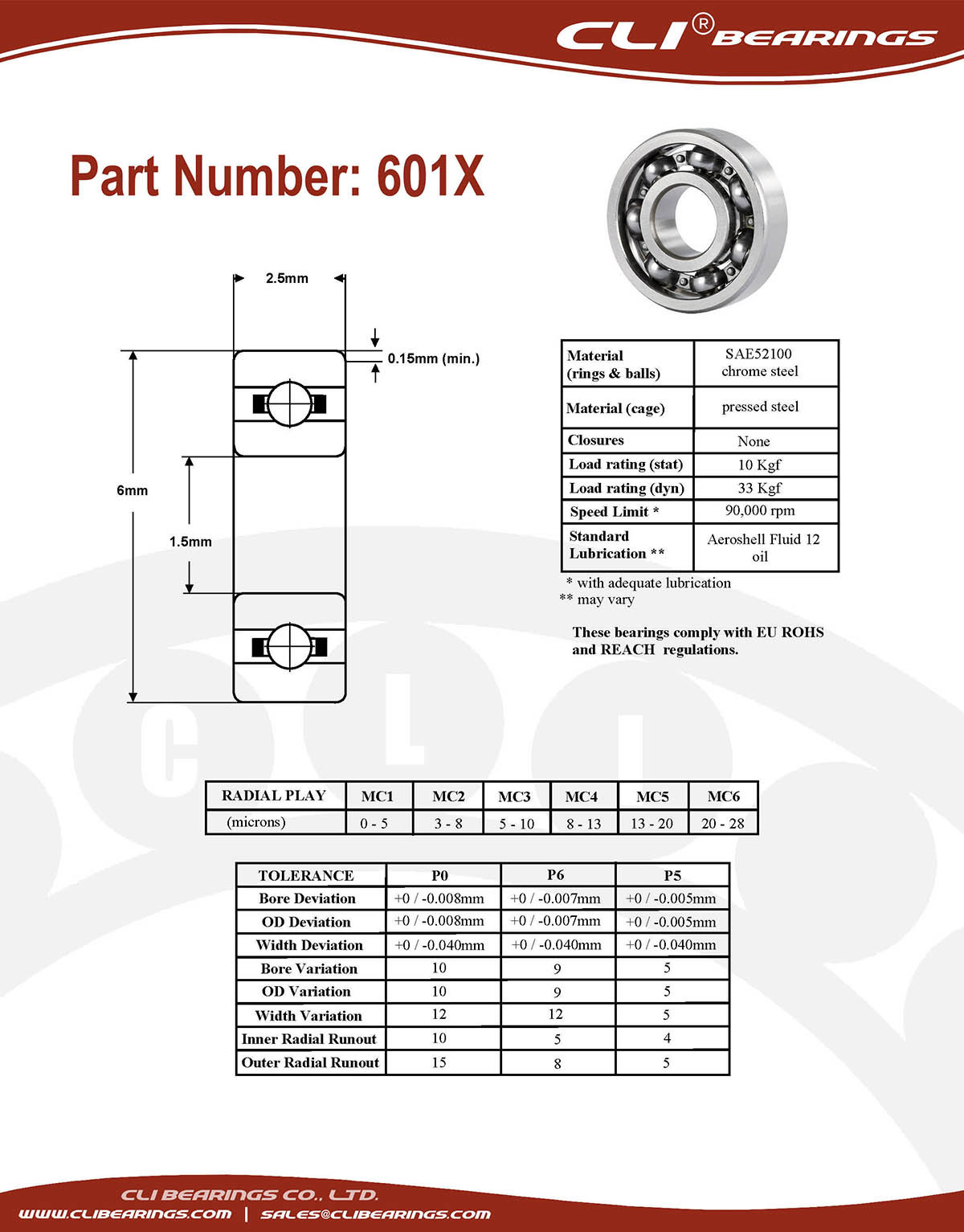

 Part Number: 601X
 System of Measurement  Metric Sizes
 Material  Chrome Steel
 Ring Material  52100 Chrome Steel
 Bearing Type  Ball
 For Load Direction  Radial
 Construction  Single Row
 Seal Type  Open
 Bore Dia  1.5 mm
 Bore Dia Tolerance  -0.008 mm to 0
 Outer Dia  6 mm
 Outer Dia Tolerance  -0.008mm to 0
 Width  2.5 mm
 Width Tolerance  -0.12mm to 0
 Ball Material  52100 Chrome Steel
 Cage Material  300 Series Stainless Steel
 Dynamic Radial Load  281.000 N
 Static Radial Load  79.000 N
 Max Speed (X1000 rpm)  75
 Lubrication  Required
 Shaft Mount Type  Press Fit
 Temperature Range  -30° to 110 °C
 ABEC Rating  ABEC-1
 Radial Clearance Trade No.  C0
 Radial Clearance  0.002 mm to 0.013 mm
 RoHS  Compliant
 REACH  Compliant
 Ball Qty  6
 Ball Dia  1.2000 mm
 Weight  0.31 g
 Brand  Neutral / CLI
Original 601x miniature bearing 1 5x6x2 5mm open chrome aisi52100 cli nw
