Ball Bearings-Miniature Ball Bearings-Miniature ball bearings, CHROME STEEL AISI52100, METRIC sizes - 605-2RS

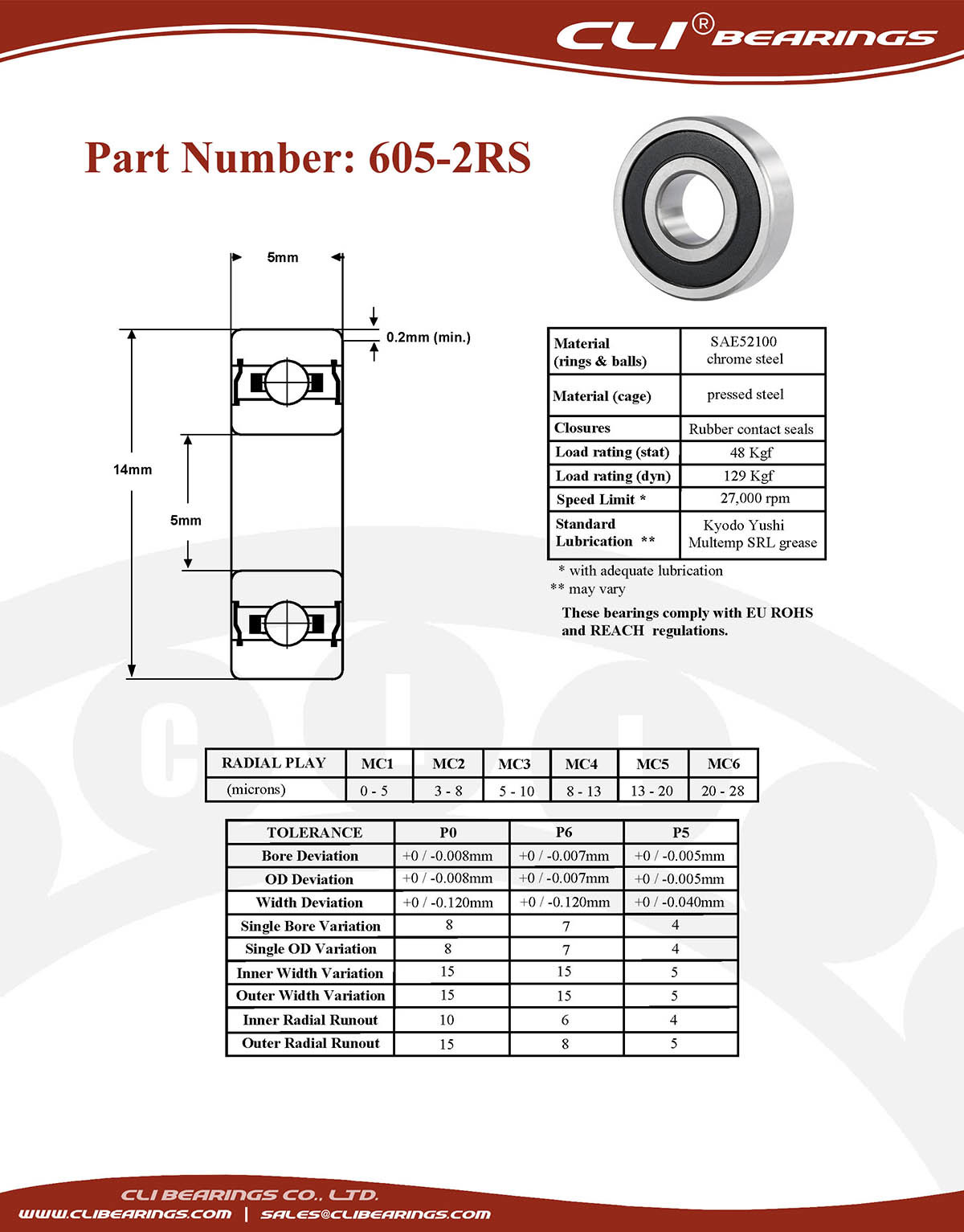

Part Number 605-2RS
System of Measurement Metric
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Sealed
Bore Dia 5 mm
Bore Dia Tolerance -0.008mm to 0
Outer Dia 14 mm
Outer Dia Tolerance -0.008mm to 0
Width 5 mm
Width Tolerance -0.12mm to 0
Ring Material 52100 Chrome Steel
Ball Material 52100 Chrome Steel
Cage Material 300 Series Stainless Steel
Shield Material Nitrile Rubber
Dynamic Radial Load 1130 N
Static Radial Load 406 N
Max Speed (X1000 rpm) 40
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.002mm to 0.013mm
RoHS Compliant
REACH Compliant
Ball Dia 2.3810 mm
Ball Qty 7
Weight 3.75 g
Original 605 2rs miniature bearing 5x14x5mm double sealed chrome aisi52100   cli bearings co ltd nw
