Ball Bearings-Miniature Ball Bearings-Miniature ball bearings, CHROME STEEL AISI52100, METRIC sizes - 623ZZ

Part Number 623ZZ
System of Measurement Metric
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Shielded
Bore Dia 3 mm
Bore Dia Tolerance -0.008mm to 0
Outer Dia 10 mm
Outer Dia Tolerance -0.008mm to 0
Width 4 mm
Width Tolerance -0.12mm to 0
Ring Material 52100 Chrome Steel
Ball Material 52100 Chrome Steel
Cage Material 300 Series Stainless Steel
Shield Material 300 Series Stainless Steel
Dynamic Radial Load 536 N
Static Radial Load 175 N
Max Speed (X1000 rpm) 50
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.002mm to 0.013mm
RoHS Compliant
REACH Compliant
Ball Dia 1.5880 mm
Ball Qty 7
Weight 1.65 g

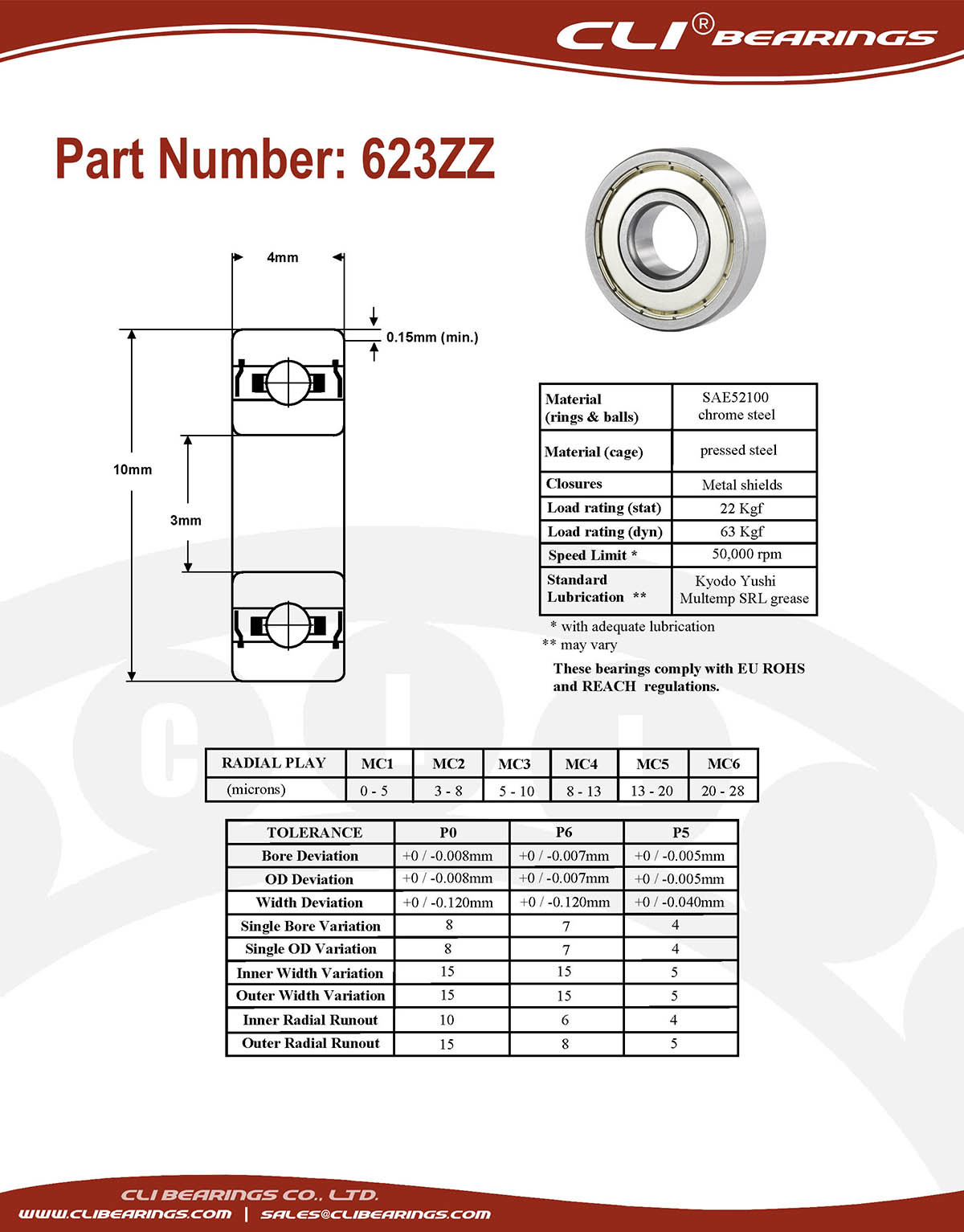

Original 623zz miniature bearing 3x10x4mm double shielded chrome aisi52100   cli bearings co ltd nw
