Ball Bearings-Miniature Ball Bearings-Miniature ball bearings, CHROME STEEL AISI52100, METRIC sizes - 627

Part Number 627
System of Measurement Metric
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Open
Bore Dia 7 mm
Bore Dia Tolerance -0.008mm to 0
Outer Dia 22 mm
Outer Dia Tolerance -0.008mm to 0
Width 7 mm
Width Tolerance -0.12mm to 0
Ring Material 52100 Chrome Steel
Ball Material 52100 Chrome Steel
Cage Material 300 Series Stainless Steel
Dynamic Radial Load 2794 N
Static Radial Load 1103 N
Max Speed (X1000 rpm) 30
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.002mm to 0.013mm
RoHS Compliant
REACH Compliant
Ball Dia 3.9690 mm
Ball Qty 7
Weight 12.7 g

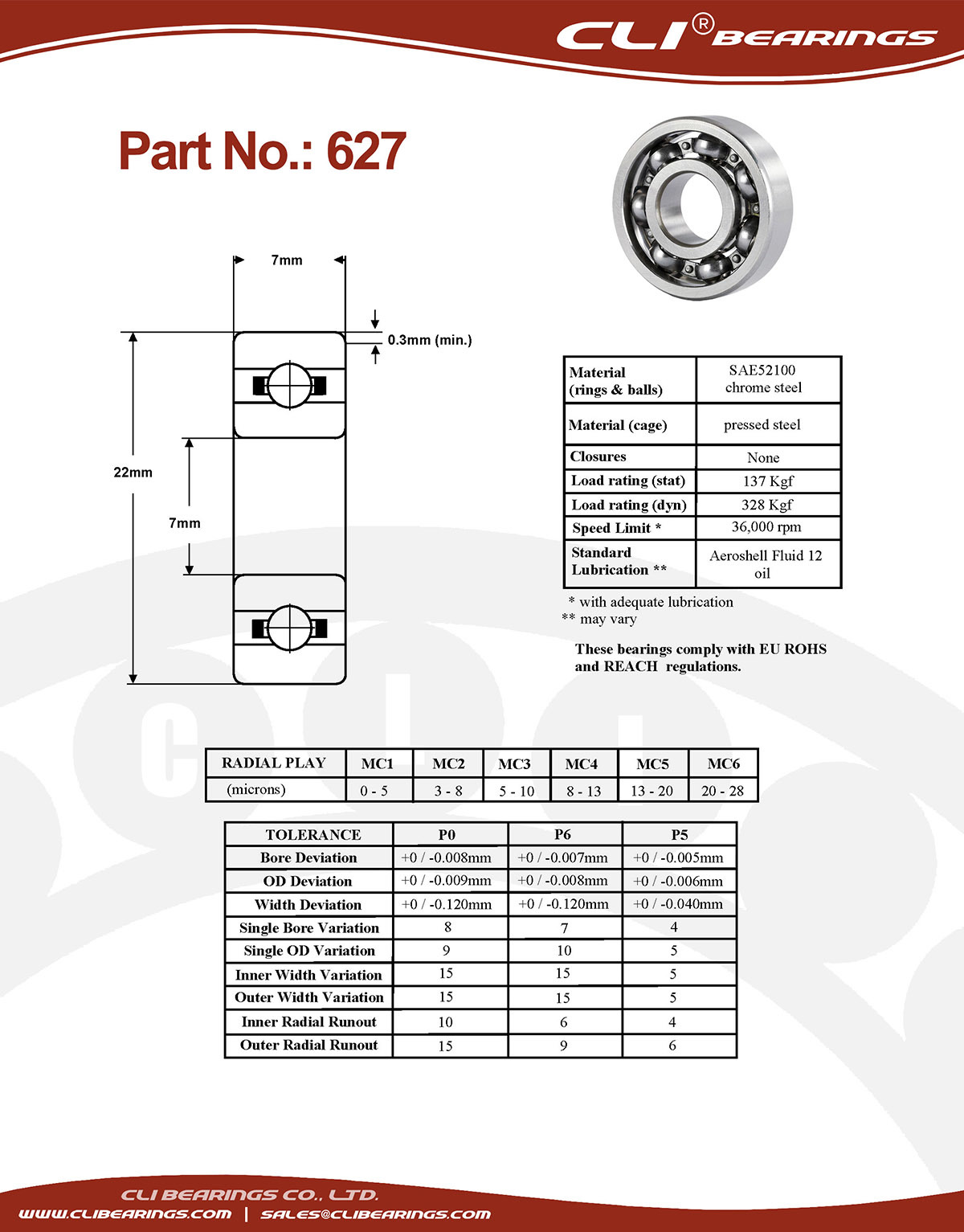

Original 627 miniature bearing 7x22x7mm open chrome aisi52100   cli bearings co ltd nw
