Ball Bearings-Miniature Ball Bearings-Miniature ball bearings, CHROME STEEL AISI52100, METRIC sizes - 636

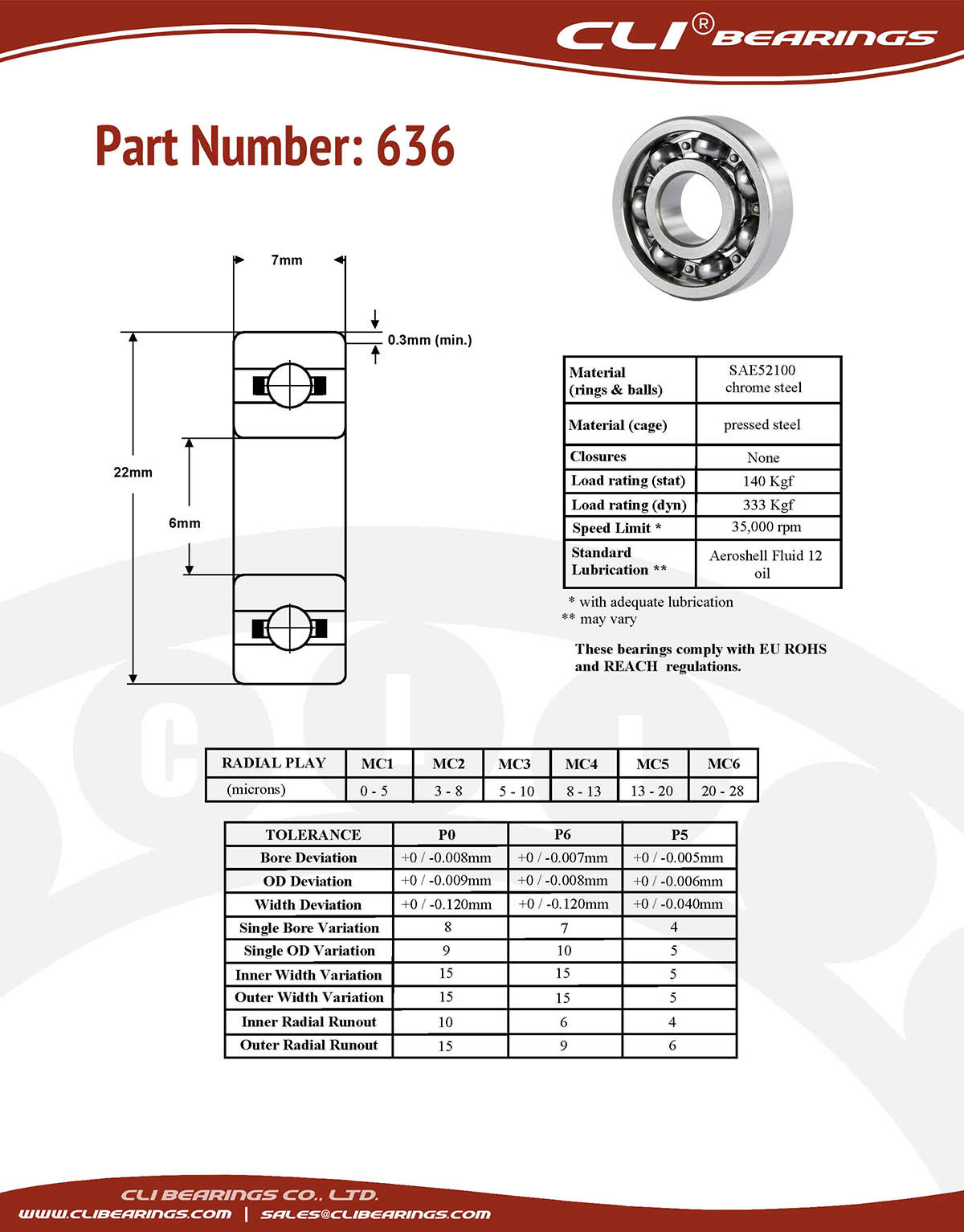

 Part Number: 636
 Standard Measurement  Metric
 Material  Chrome Steel
 Ring Material  52100 Chrome Steel
 Bearing Type  Ball
 For Load Direction  Radial
 Construction  Single Row
 Seal Type  Open
 Bore Dia  6 mm
 Bore Dia Tolerance  -0.008mm to 0
 Outer Dia  22 mm
 Outer Dia Tolerance  -0.008mm to 0
 Width  7 mm
  Width Tolerance  -0.12mm to 0
 Ball Material  52100 Chrome Steel
 Cage Material  300 Series Stainless Steel
 Dynamic Radial Load  2833.000 N
 Static Radial Load  1138.000 N
 Max Speed (X1000 rpm)  30
 Lubrication  Required
 Shaft Mount Type  Press Fit
 Temperature Range  -30° to 110 °C
 ABEC Rating  ABEC-1
 Radial Clearance Trade No.  C0
 Radial Clearance  0.002mm to 0.013mm
 RoHS  Compliant
 REACH  Compliant
 Ball Qty  7
 Ball Dia  3.9690 mm
 Weight  13.9 g
 Brand  Neutral / CLI
Original 636 miniature bearing 6x22x7mm open chrome aisi52100   cli bearings co ltd nw
