Ball Bearings-Miniature Ball Bearings-Miniature ball bearings, CHROME STEEL AISI52100, METRIC sizes - 681X

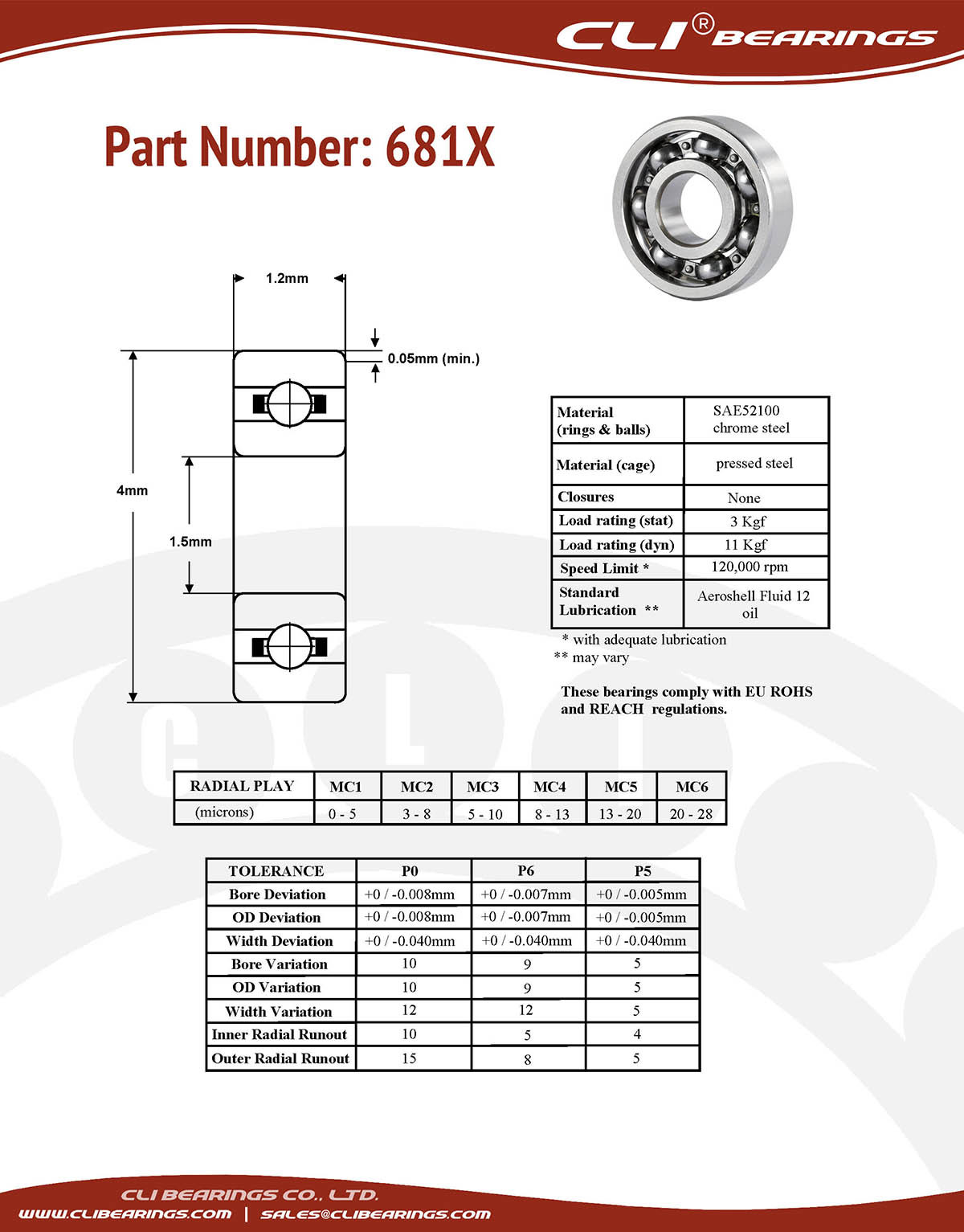

 Part Number: 681X
 Standard Measurement  Metric Sizes
 Material  Chrome Steel
 Ring Material  52100 Chrome Steel
 Bearing Type  Ball
 For Load Direction  Radial
 Construction  Single Row
 Seal Type  Open
 Bore Dia  1.5 mm
 Bore Dia Tolerance  -0.008mm to 0
 Outer Dia  4 mm
 Outer Dia Tolerance  -0.008mm to 0
 Width  1.2 mm
 Width Tolerance  -0.12mm to 0
 Ball Material  52100 Chrome Steel
 Cage Material  300 Series Stainless Steel
 Dynamic Radial Load  95.000 lbf
 Static Radial Load  26.000 lbf
 Max Speed (X1000 rpm)  100
 Lubrication  Required
 Shaft Mount Type  Press Fit
 Temperature Range  -30° to 110 °C
 ABEC Rating  ABEC-1
 Radial Clearance Trade No.  C0
 Radial Clearance  0.002mm to 0.013mm
 RoHS  Compliant
 REACH  Compliant
 Ball Qty  7
 Ball Dia  0.6000 mm
 Weight  0.1 g
 Brand  CLI / Neutral
Original 681x miniature bearing 1 5x4x1 2mm cli nw
