Ball Bearings-Miniature Ball Bearings-Miniature ball bearings, CHROME STEEL AISI52100, METRIC sizes - 685

 Part Number: 685
 Standard Measurement  Metric Size
 Material  Chrome Steel
 Ring Material  52100 Chrome Steel
 Bearing Type  Ball
 For Load Direction  Radial
 Construction  Single Row
 Seal Type  Open
 Bore Dia  5 mm
 Bore Dia Tolerance  -0.008mm to 0
 Outer Dia  11 mm
 Outer Dia Tolerance  -0.008mm to 0
 Width  3 mm
 Width Tolerance  -0.12mm to 0
 Ball Material  52100 Chrome Steel
 Cage Material  300 Series Stainless Steel
 Dynamic Radial Load  609.000 N
 Static Radial Load  226.000 N
 Max Speed (X1000 rpm)  45
 Lubrication  Required
 Shaft Mount Type  Press Fit
 Temperature Range  -30° to 110 °C
 ABEC Rating  ABEC-1
 Radial Clearance Trade No.  C0
 Radial Clearance  0.002mm to 0.013mm
 RoHS  Compliant
 REACH  Compliant
 Ball Qty  8
 Ball Dia  1.5880 mm
 Weight  1.16 g
 Brand  Neutral / CLI

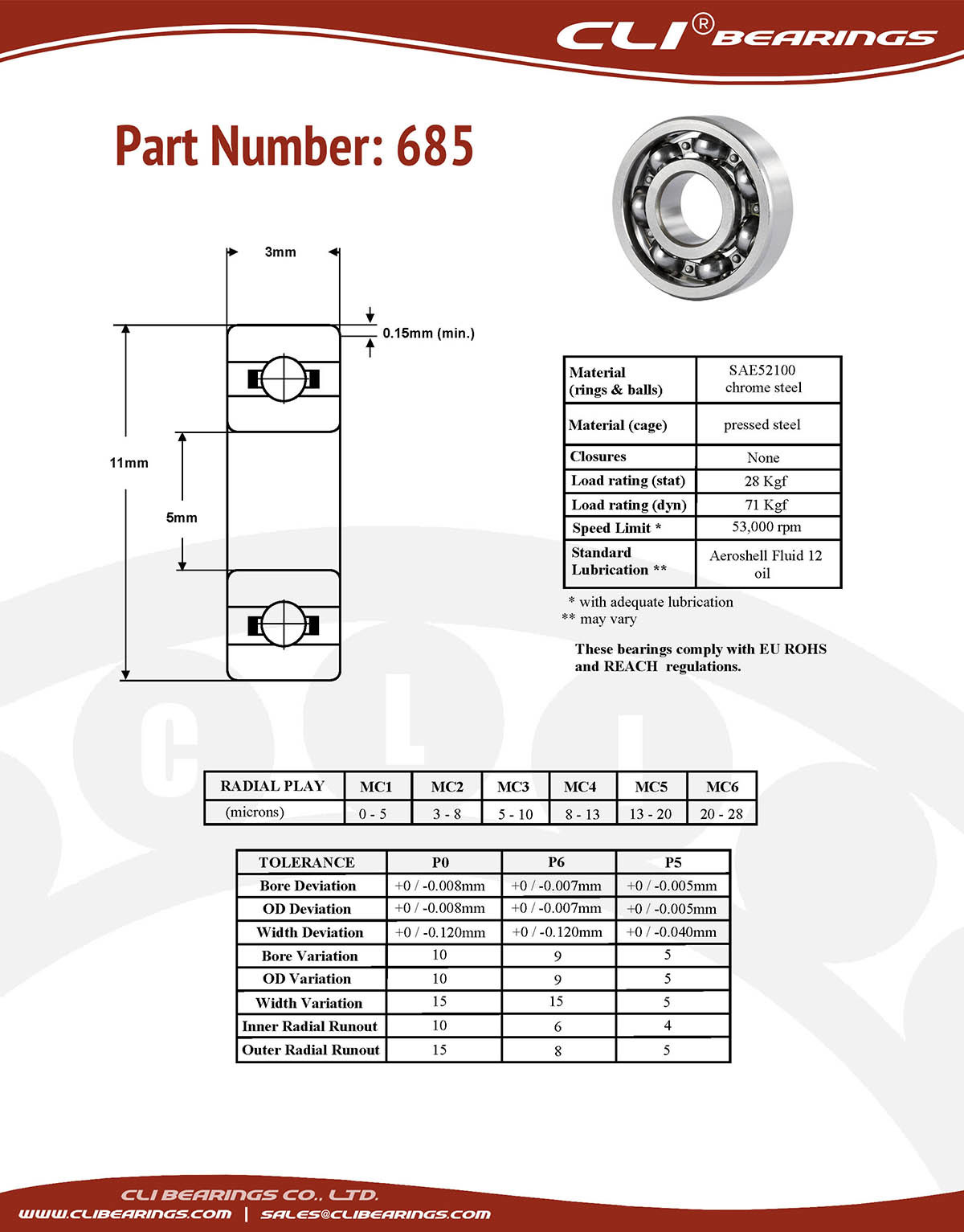

Original 685 miniature bearing 5x11x3mm open chrome aisi52100   cli bearings co ltd nw
