Ball Bearings-Miniature Ball Bearings-Miniature ball bearings, CHROME STEEL AISI52100, METRIC sizes - 688ZZW4

Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Shielded
Part Number 688ZZW4
For Shaft Diameter 8mm
Bore Dia (d) 8 mm
Bore Dia Tolerance -0.008mm to 0
For Housing ID 16mm
Outer Dia (D) 16mm
Outer Dia Tolerance -0.008mm to 0
Width (B) 5mm
Width Tolerance -0.12mm to 0
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Shield Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (Newtons) 1064
Static Load Rating (Cor) (Newtons) 474
Max Speed (Grease) (X1000 RPM) 36
Max Speed (Oil) (X1000 RPM)  43
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.002mm to 0.013mm
RoHS Compliant
Ball Qty 10
Ball Dia 2.0000mm
Weight (grams) 4.05

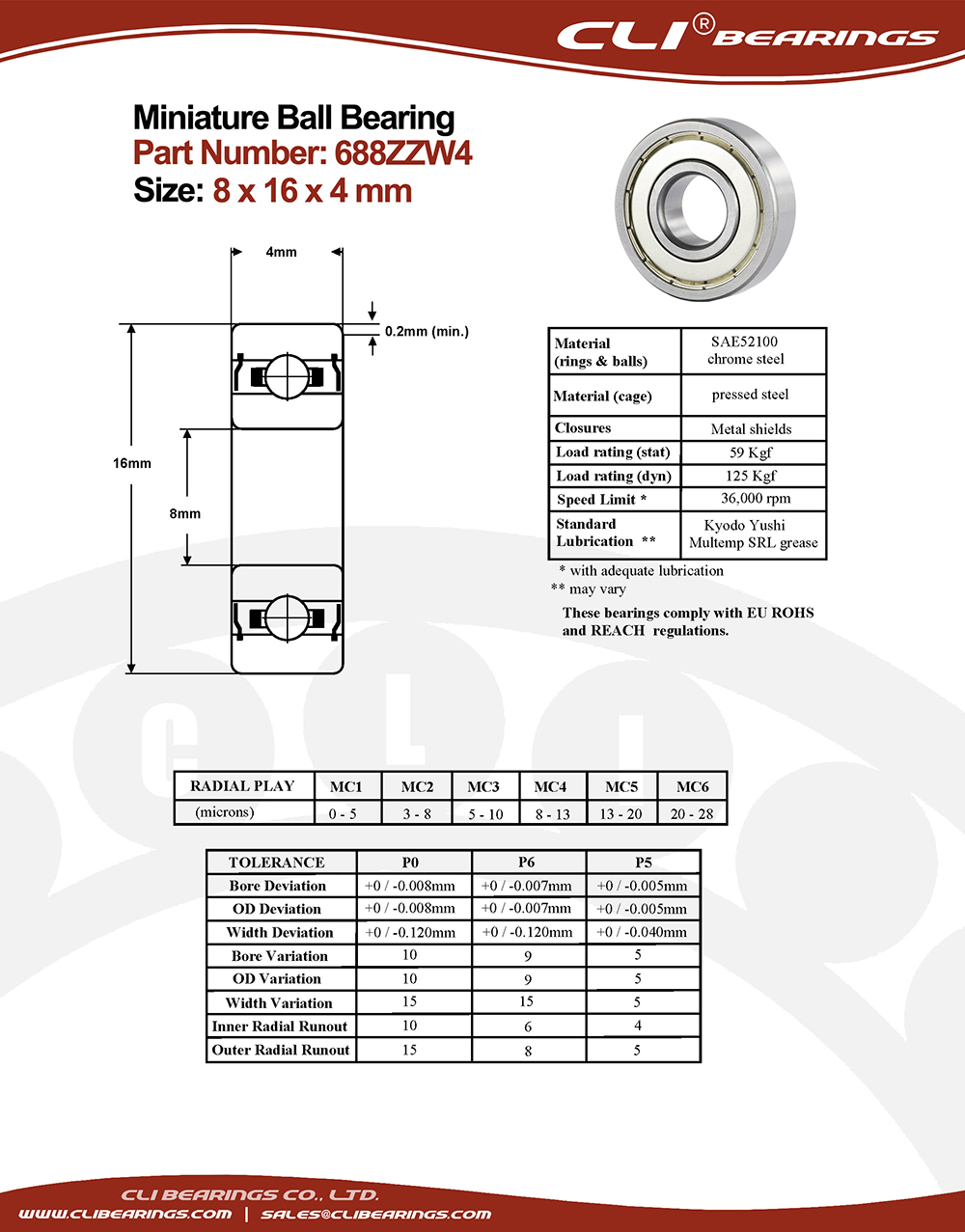

Original 688zzw4 miniature bearing 8x16x4mm nw
