Ball Bearings-Miniature Ball Bearings-Miniature ball bearings, CHROME STEEL AISI52100, METRIC sizes - 699ZZ

Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Shielded
Part Number 699ZZ
For Shaft Diameter 9mm
Bore Dia (d) 9 mm
Bore Dia Tolerance -0.008mm to 0
For Housing ID 20mm
Outer Dia (D) 20mm
Outer Dia Tolerance -0.008mm to 0
Width (B) 6mm
Width Tolerance -0.12mm to 0
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Shield Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (Newtons) 2097
Static Load Rating (Cor) (Newtons) 865
Max Speed (Grease) (X1000 RPM) 34
Max Speed (Oil) (X1000 RPM)  40
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.002mm to 0.013mm
RoHS Compliant
Ball Qty 8
Ball Dia 3.1750mm
Weight (grams) 8.54

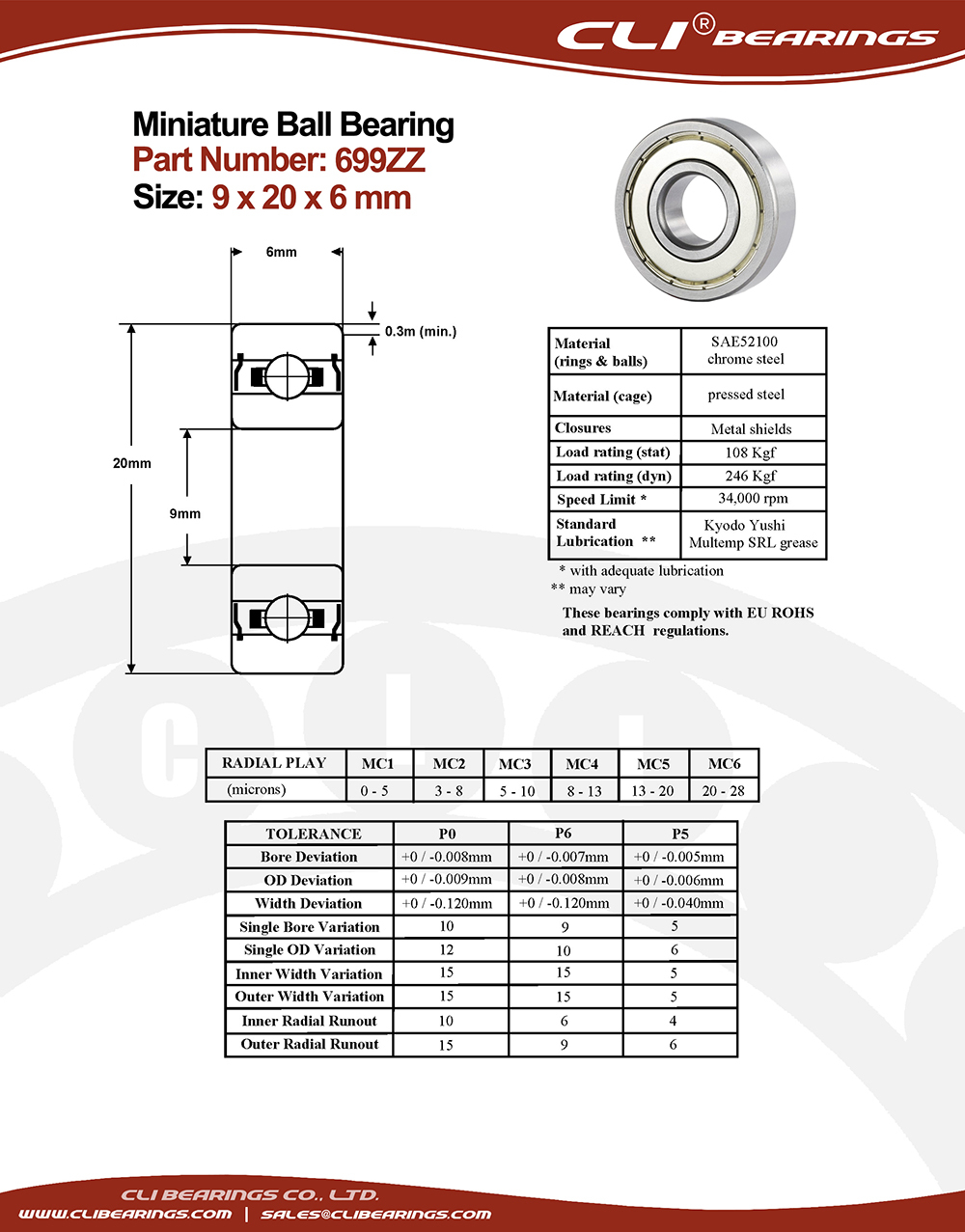

Original 699zz miniature bearing 9x20x6mm nw
