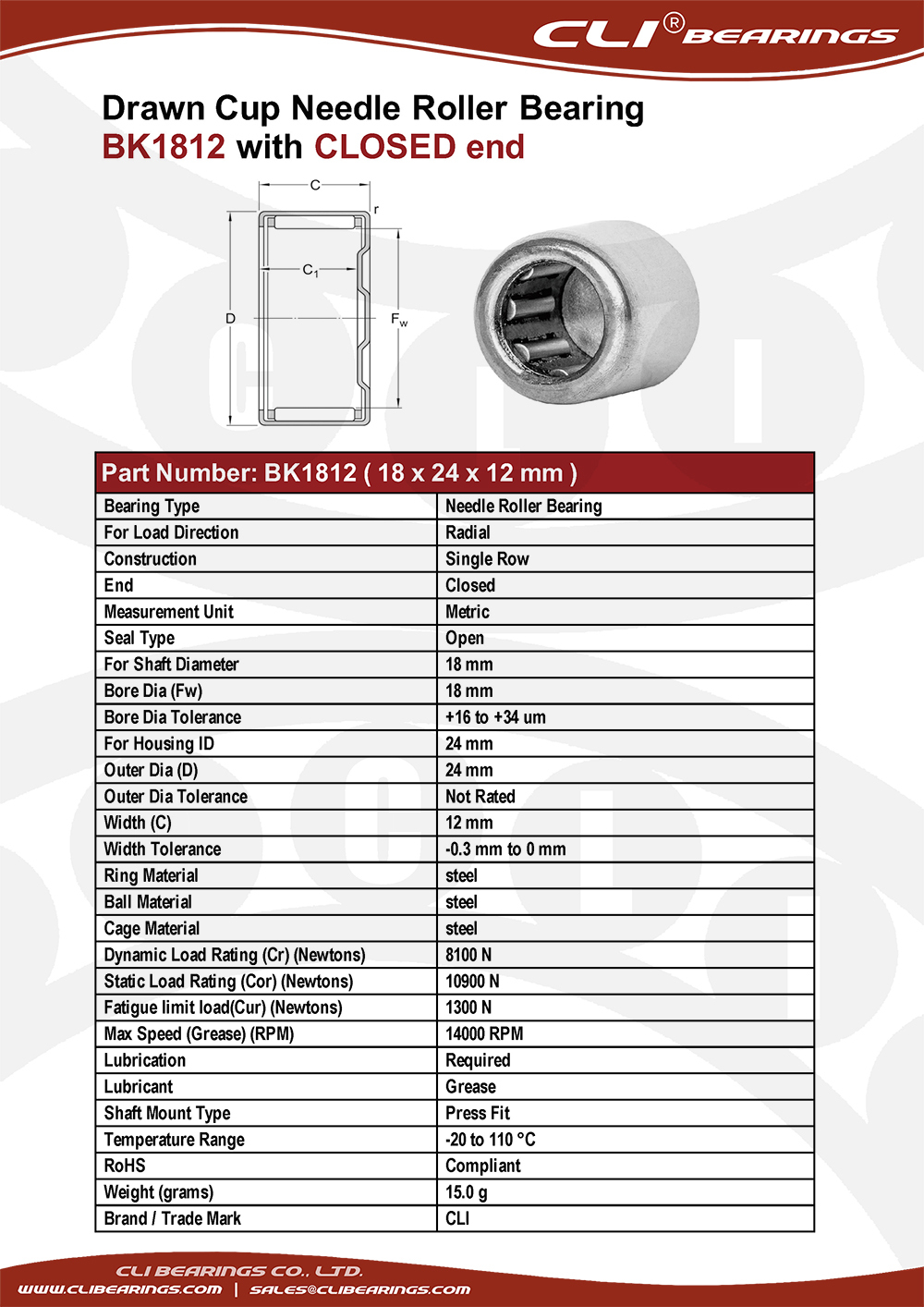

Roller Bearings-Needle Roller Bearings-BK drawn cup needle roller bearings with CLOSED end, chrome steel AISI52100, METRIC SIZE- BK1812

 Part Number: BK1812 (18x24x12 mm)
 Bearing Type  Needle Roller Bearing
 For Load Direction  Radial
 Construction  Single Row
 End  Closed
 Measurement Unit  Metric
 Seal Type  Open
 For Shaft Diameter  18 mm
 Bore Dia (Fw)  18 mm
 Bore Dia Tolerance  +16 to +34 um
 For Housing ID  24 mm
 Outer Dia (D)  24 mm
 Outer Dia Tolerance  Not Rated
 Width (C)  12 mm
 Width Tolerance  -0.3 mm to 0 mm
 Ring Material  steel
 Ball Material  steel
 Cage Material  steel
 Dynamic Load Rating (Cr) (Newtons)  8100 N
 Static Load Rating (Cor) (Newtons)  10900 N
 Fatigue limit load(Cur) (Newtons)  1300 N
 Max Speed (Grease) (RPM)  14000 RPM
 Lubrication  Required
 Lubricant  Grease
 Shaft Mount Type  Press Fit
 Temperature Range  -20 to 110 °C
 RoHS  Compliant
 Weight (grams)  15.0 g
 Brand / Trade Mark  CLI
Original bk1812 18x24x12 mm drawn cup needle roller bearings cli bearings co ltd nw
