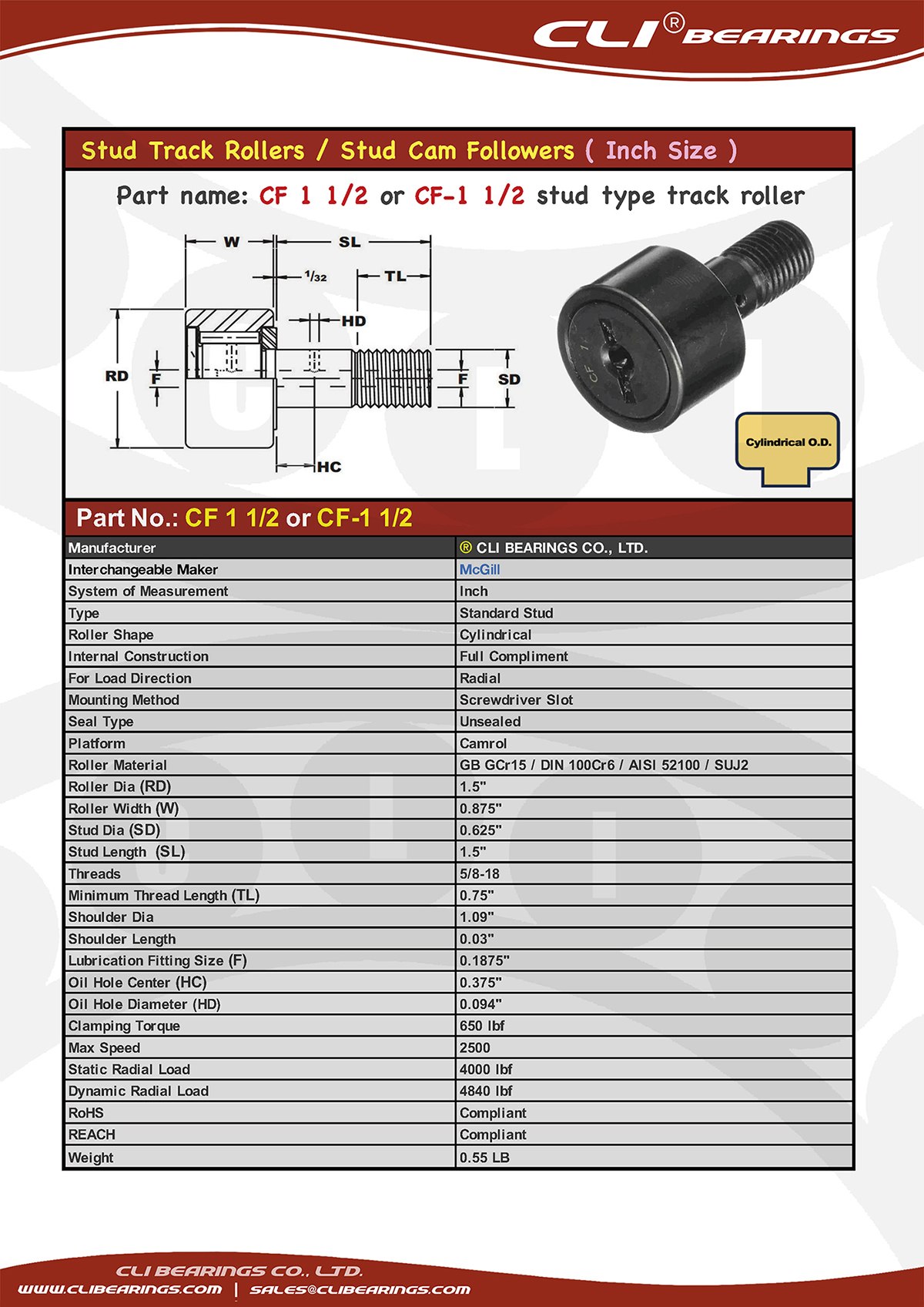

| Part No.: CF 1 1/2 or CF-1 1/2 |
 |
| Manufacturer |
® CLI BEARINGS CO., LTD. |
| Interchangeable Maker |
McGill |
| System of Measurement |
Inch |
| Type |
Standard Stud |
| Roller Shape |
Cylindrical |
| Internal Construction |
Full Compliment |
| For Load Direction |
Radial |
| Mounting Method |
Screwdriver Slot |
| Seal Type |
Unsealed |
| Platform |
Camrol |
| Roller Material |
GB GCr15 / DIN 100Cr6 / AISI 52100 / SUJ2 |
| Roller Dia (RD) |
1.5" |
| Roller Width (W) |
0.875" |
| Stud Dia (SD) |
0.625" |
| Stud Length (SL) |
1.5" |
| Threads |
5/8-18 |
| Minimum Thread Length (TL) |
0.75" |
| Shoulder Dia |
1.09" |
| Shoulder Length |
0.03" |
| Lubrication Fitting Size (F) |
0.1875" |
| Oil Hole Center (HC) |
0.375" |
| Oil Hole Diameter (HD) |
0.094" |
| Clamping Torque |
650 lbf |
| Max Speed |
2500 |
| Static Radial Load |
4000 lbf |
| Dynamic Radial Load |
4840 lbf |
| RoHS |
Compliant |
| REACH |
Compliant |
| Weight |
0.55 LB |
