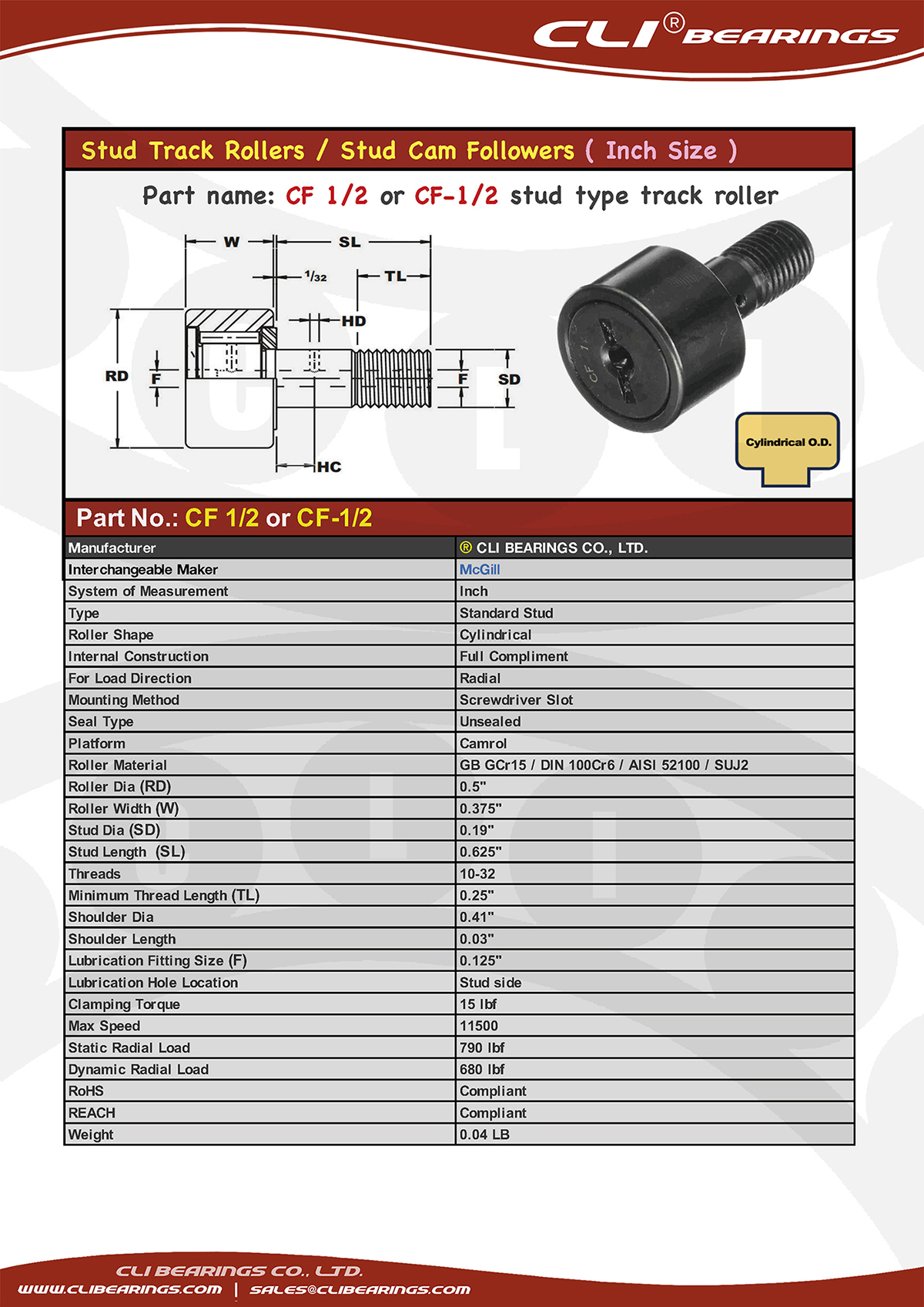

| Part No.: CF 1/2 or CF-1/2 | |
 |
|
| Manufacturer | ® CLI BEARINGS CO., LTD. |
| Interchangeable Maker | McGill |
| System of Measurement | Inch |
| Type | Standard Stud |
| Roller Shape | Cylindrical |
| Internal Construction | Full Compliment |
| For Load Direction | Radial |
| Mounting Method | Screwdriver Slot |
| Seal Type | Unsealed |
| Platform | Camrol |
| Roller Material | GB GCr15 / DIN 100Cr6 / AISI 52100 / SUJ2 |
| Roller Dia (RD) | 0.5" |
| Roller Width (W) | 0.375" |
| Stud Dia (SD) | 0.19" |
| Stud Length (SL) | 0.625" |
| Threads | 10-32 |
| Minimum Thread Length (TL) | 0.25" |
| Shoulder Dia | 0.41" |
| Shoulder Length | 0.03" |
| Lubrication Fitting Size (F) | 0.125" |
| Lubrication Hole Location | Stud side |
| Clamping Torque | 15 lbf |
| Max Speed | 11500 |
| Static Radial Load | 790 lbf |
| Dynamic Radial Load | 680 lbf |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 0.04 LB |
