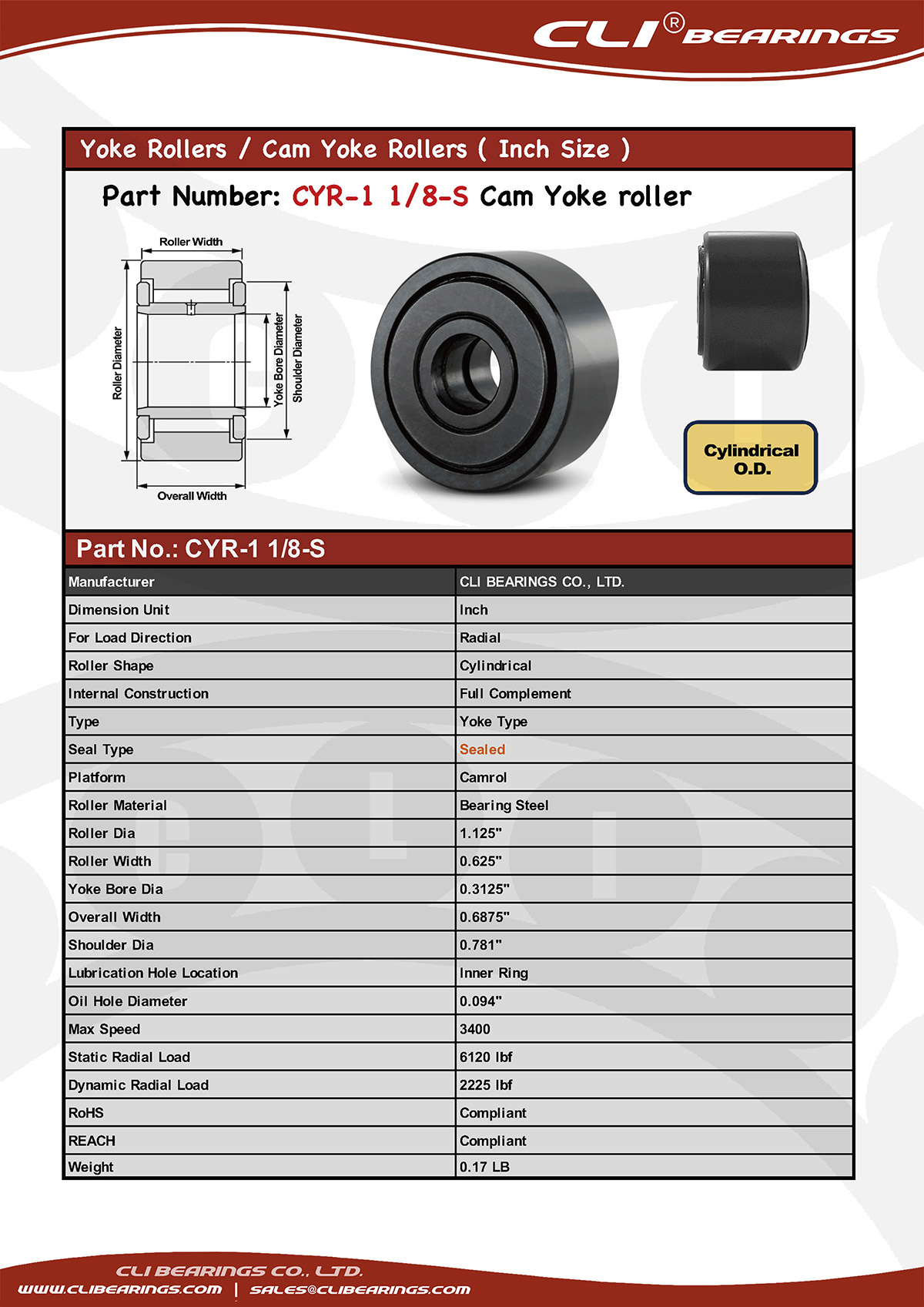

| Part No.: CYR-1 1/8-S | |
| Manufacturer | CLI BEARINGS CO., LTD. |
| Dimension Unit | Inch |
| For Load Direction | Radial |
| Roller Shape | Cylindrical |
| Internal Construction | Full Complement |
| Type | Yoke Type |
| Seal Type | Sealed |
| Platform | Camrol |
| Roller Material | Bearing Steel |
| Roller Dia | 1.125" |
| Roller Width | 0.625" |
| Yoke Bore Dia | 0.3125" |
| Overall Width | 0.6875" |
| Shoulder Dia | 0.781" |
| Lubrication Hole Location | Inner Ring |
| Oil Hole Diameter | 0.094" |
| Max Speed | 3400 |
| Static Radial Load | 6120 lbf |
| Dynamic Radial Load | 2225 lbf |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 0.17 LB |
 |
|
