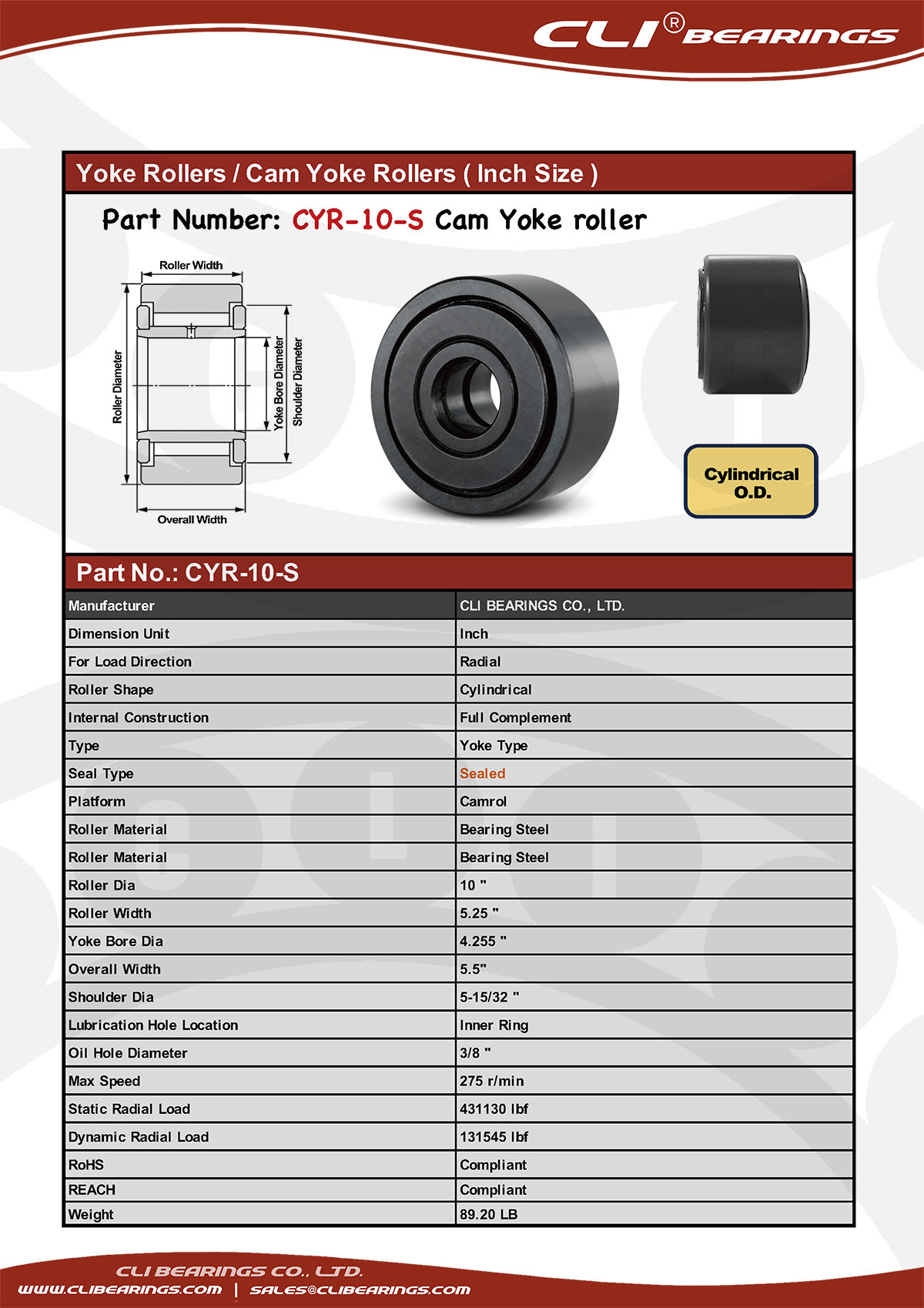

| Part No.: CYR-10-S | |
| Manufacturer | CLI BEARINGS CO., LTD. |
| Dimension Unit | Inch |
| For Load Direction | Radial |
| Roller Shape | Cylindrical |
| Internal Construction | Full Complement |
| Type | Yoke Type |
| Seal Type | Sealed |
| Platform | Camrol |
| Roller Material | Bearing Steel |
| Roller Material | Bearing Steel |
| Roller Dia | 10 " |
| Roller Width | 5.25 " |
| Yoke Bore Dia | 4.255 " |
| Overall Width | 5.5" |
| Shoulder Dia | 5-15/32 " |
| Lubrication Hole Location | Inner Ring |
| Oil Hole Diameter | 3/8 " |
| Max Speed | 275 r/min |
| Static Radial Load | 431130 lbf |
| Dynamic Radial Load | 131545 lbf |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 89.20 LB |
 |
|
