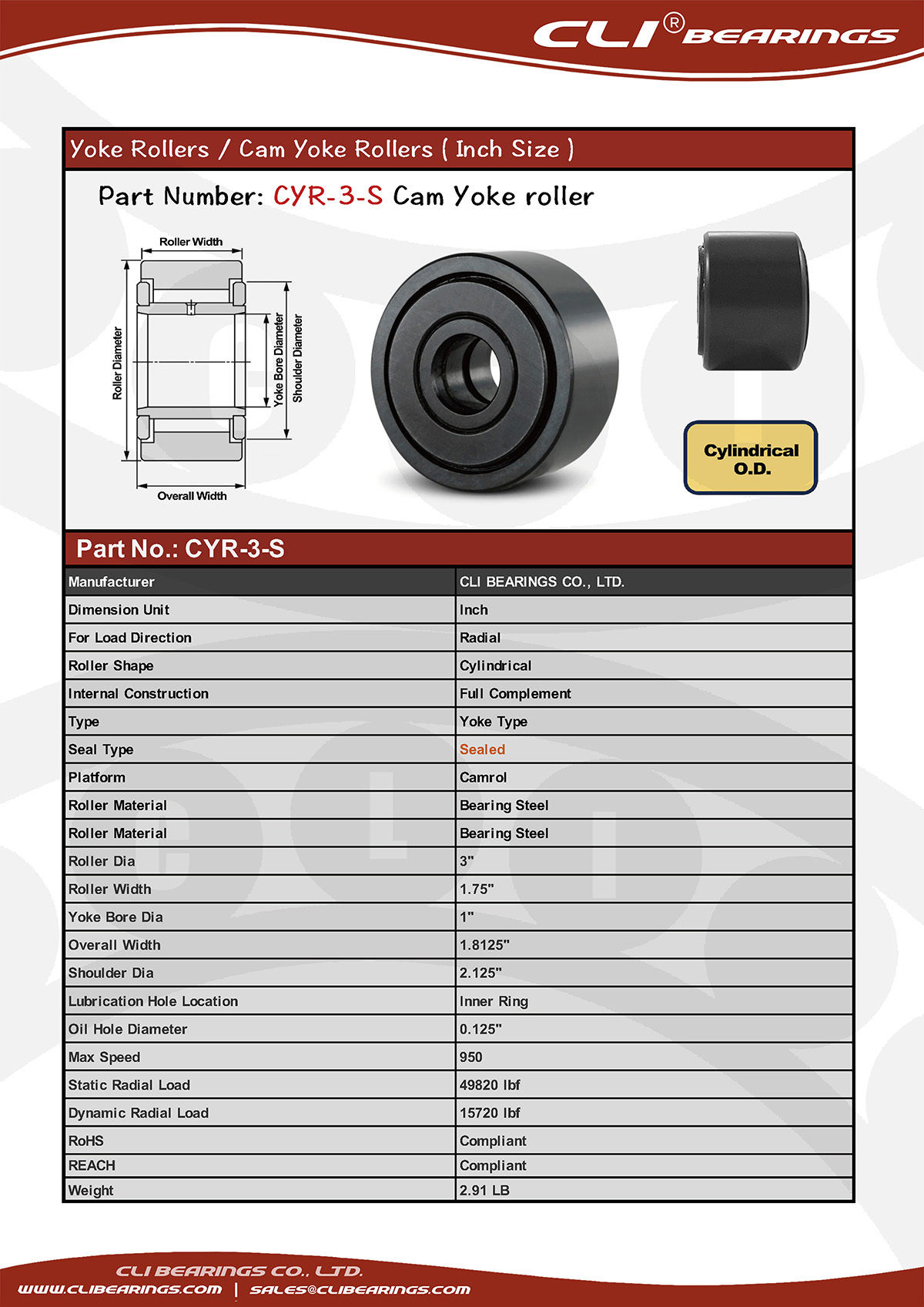

| Part No.: CYR-3-S | |
| Manufacturer | CLI BEARINGS CO., LTD. |
| Dimension Unit | Inch |
| For Load Direction | Radial |
| Roller Shape | Cylindrical |
| Internal Construction | Full Complement |
| Type | Yoke Type |
| Seal Type | Sealed |
| Platform | Camrol |
| Roller Material | Bearing Steel |
| Roller Material | Bearing Steel |
| Roller Dia | 3" |
| Roller Width | 1.75" |
| Yoke Bore Dia | 1" |
| Overall Width | 1.8125" |
| Shoulder Dia | 2.125" |
| Lubrication Hole Location | Inner Ring |
| Oil Hole Diameter | 0.125" |
| Max Speed | 950 |
| Static Radial Load | 49820 lbf |
| Dynamic Radial Load | 15720 lbf |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 2.91 LB |
 |
|
