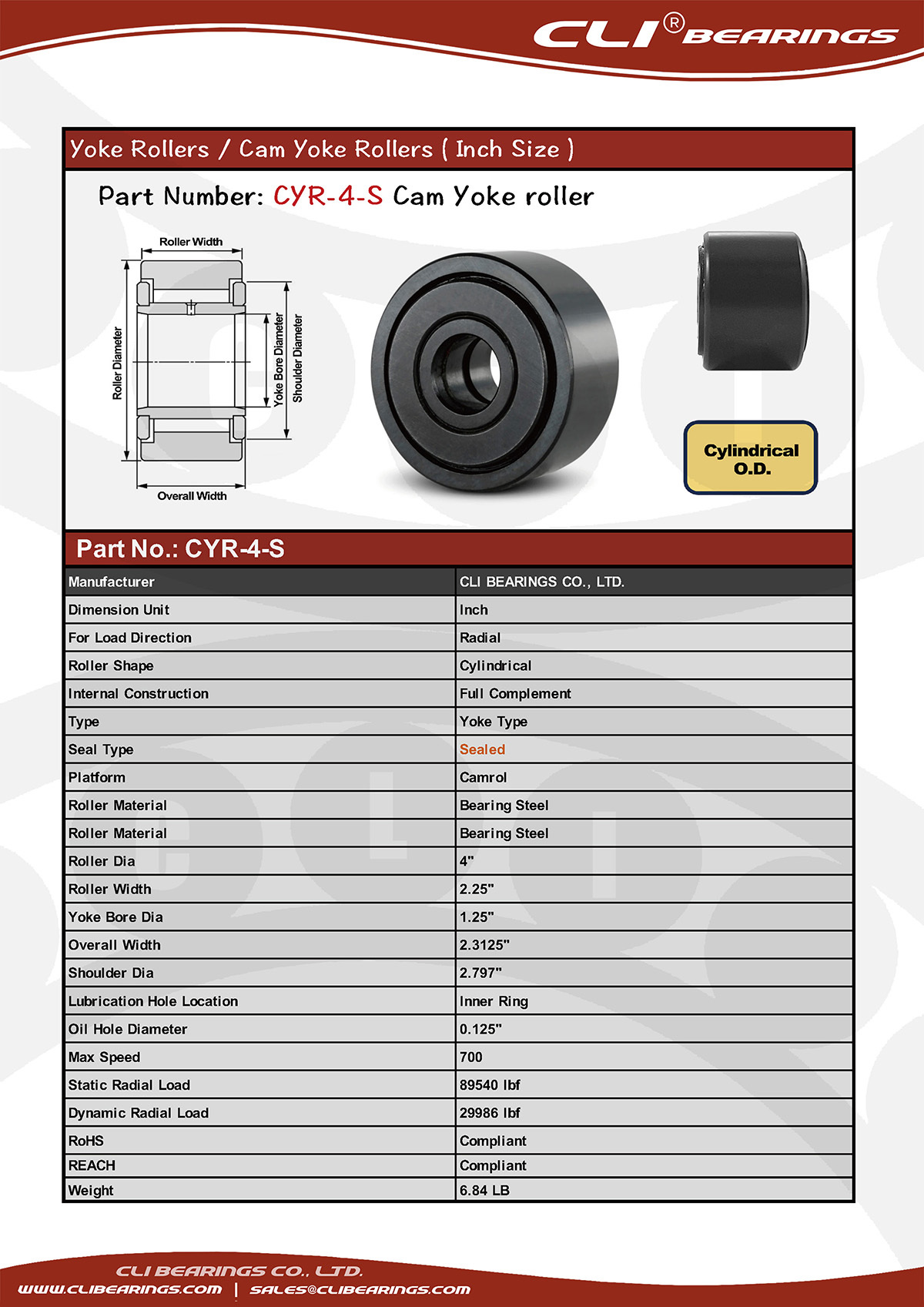

| Part No.: CYR-4-S | |
| Manufacturer | CLI BEARINGS CO., LTD. |
| Dimension Unit | Inch |
| For Load Direction | Radial |
| Roller Shape | Cylindrical |
| Internal Construction | Full Complement |
| Type | Yoke Type |
| Seal Type | Sealed |
| Platform | Camrol |
| Roller Material | Bearing Steel |
| Roller Material | Bearing Steel |
| Roller Dia | 4" |
| Roller Width | 2.25" |
| Yoke Bore Dia | 1.25" |
| Overall Width | 2.3125" |
| Shoulder Dia | 2.797" |
| Lubrication Hole Location | Inner Ring |
| Oil Hole Diameter | 0.125" |
| Max Speed | 700 |
| Static Radial Load | 89540 lbf |
| Dynamic Radial Load | 29986 lbf |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 6.84 LB |
 |
|
