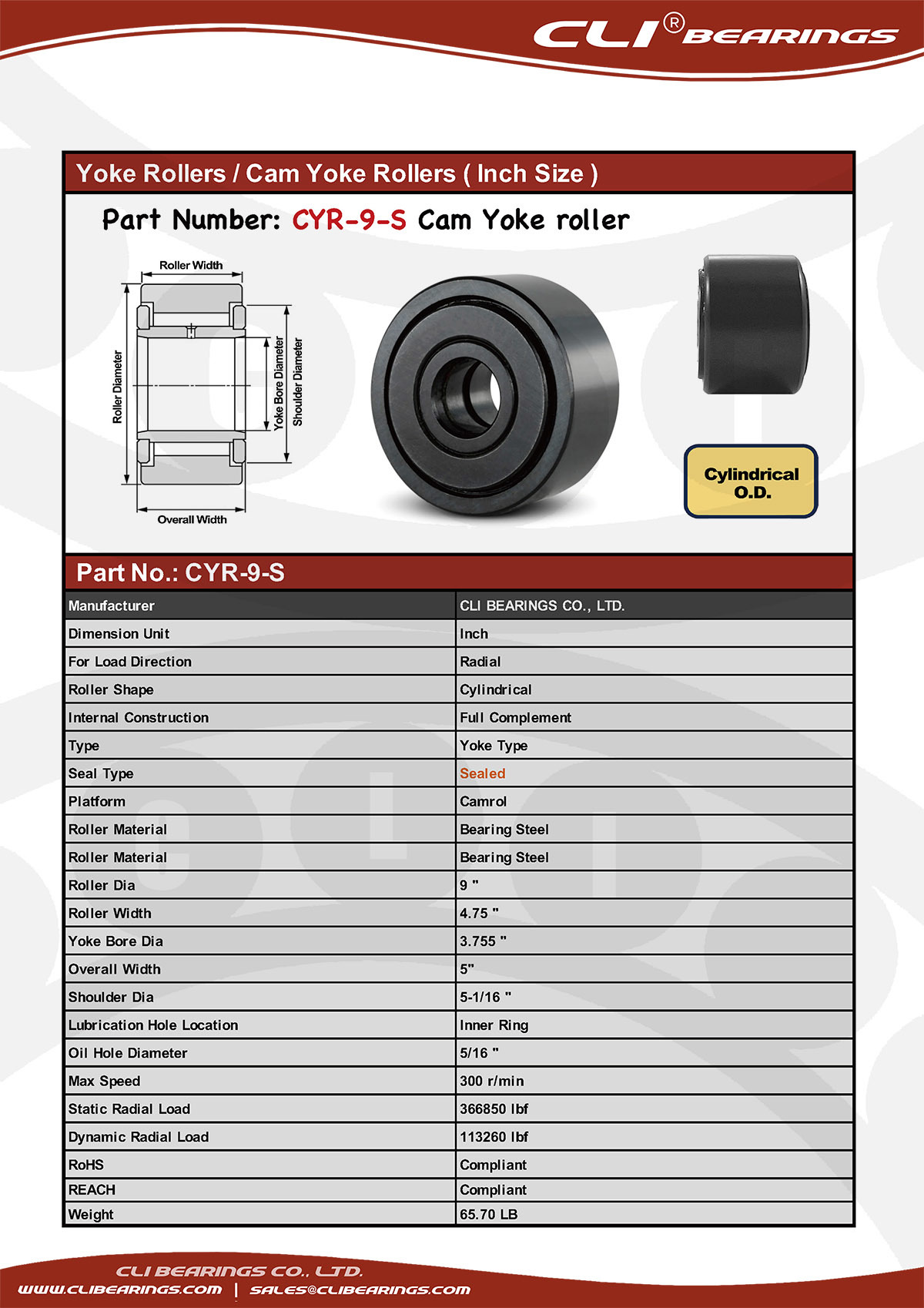

| Part No.: CYR-9-S | |
| Manufacturer | CLI BEARINGS CO., LTD. |
| Dimension Unit | Inch |
| For Load Direction | Radial |
| Roller Shape | Cylindrical |
| Internal Construction | Full Complement |
| Type | Yoke Type |
| Seal Type | Sealed |
| Platform | Camrol |
| Roller Material | Bearing Steel |
| Roller Material | Bearing Steel |
| Roller Dia | 9 " |
| Roller Width | 4.75 " |
| Yoke Bore Dia | 3.755 " |
| Overall Width | 5" |
| Shoulder Dia | 5-1/16 " |
| Lubrication Hole Location | Inner Ring |
| Oil Hole Diameter | 5/16 " |
| Max Speed | 300 r/min |
| Static Radial Load | 366850 lbf |
| Dynamic Radial Load | 113260 lbf |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 65.70 LB |
 |
|
