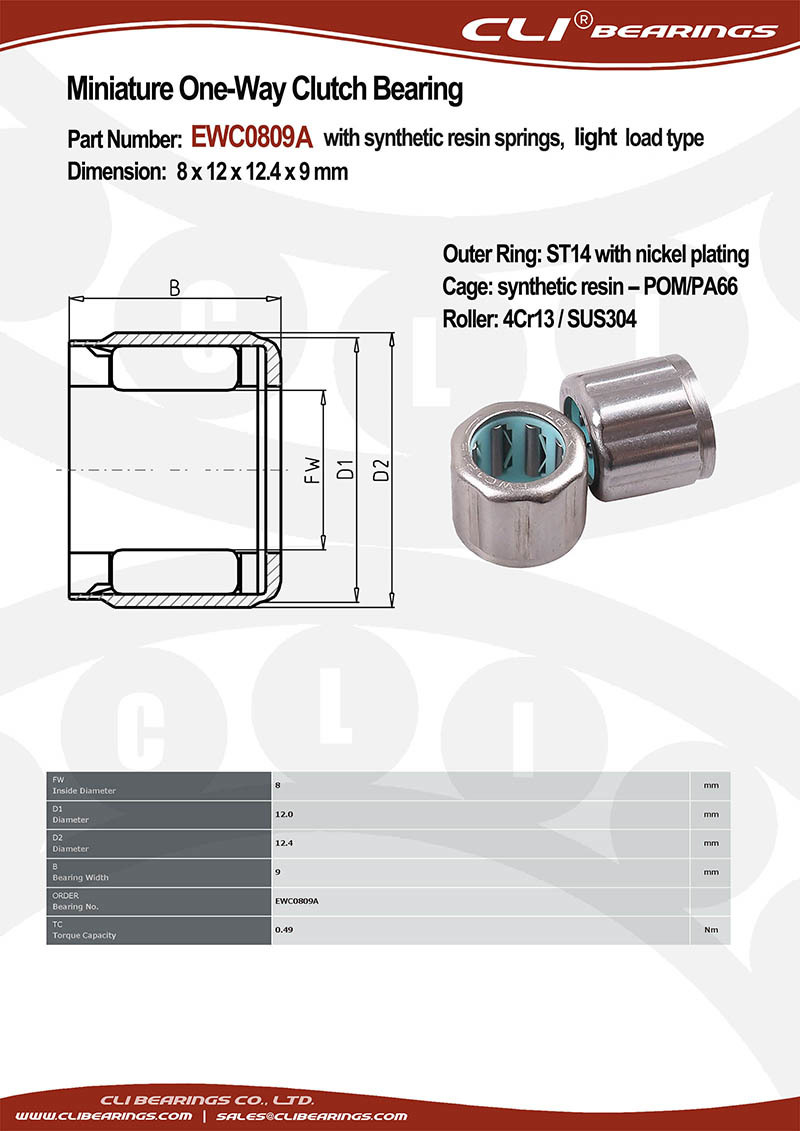

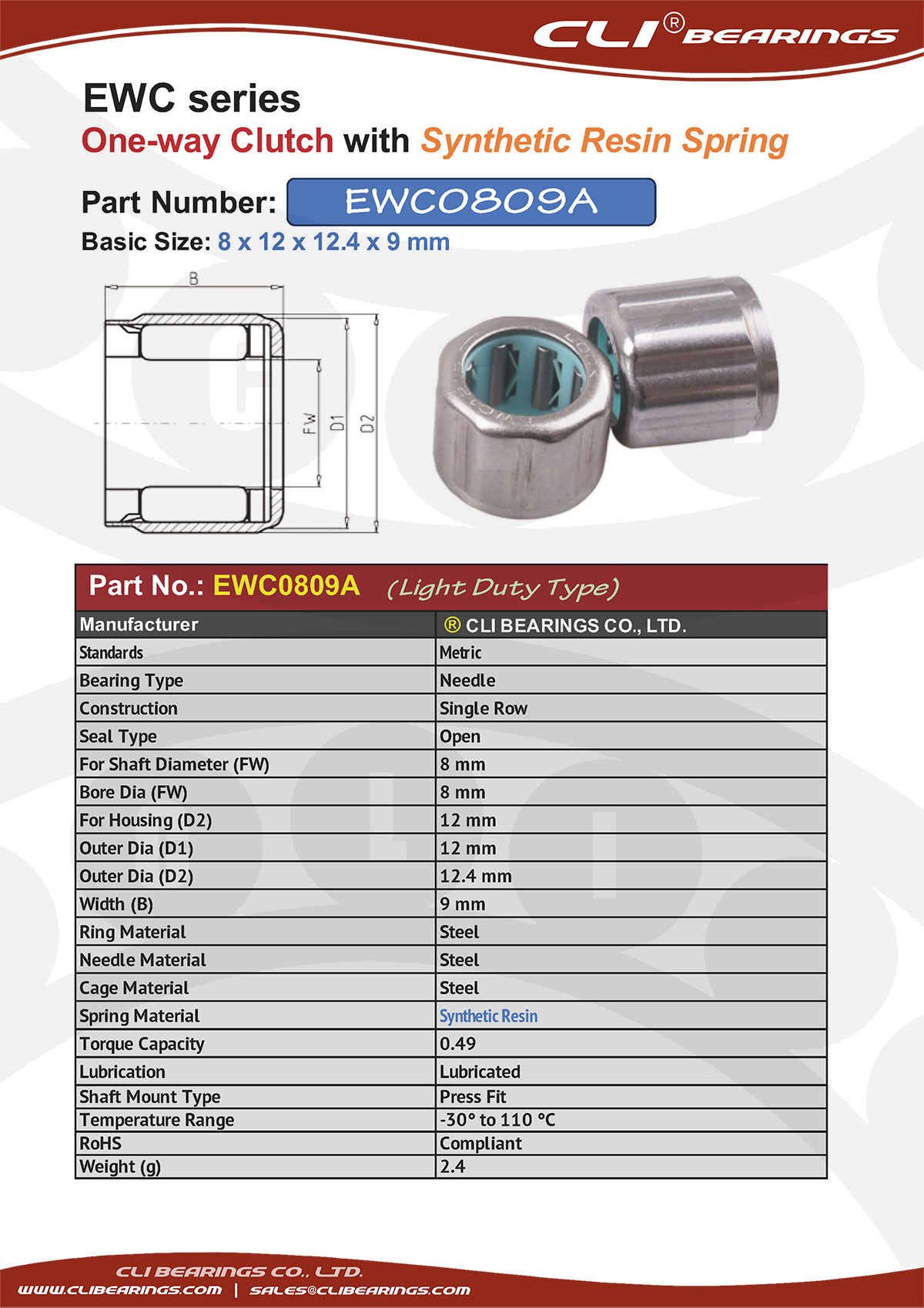

Roller Bearings-One-Way Clutch Bearings-EWC, EWC-A, EWC-C ( METRIC )- EWC0809A

 Part No.: EWC0809A
 Standards  Metric Size
 Bearing Type  One-way Clutch
 Construction  Single Row
 Seal Type  Open
 For Shaft Diameter  8 mm
 Bore Dia (Fw)  8 mm
 For Housing ID  12 mm
 Outer Dia (D1)  12 mm
 Outer Dia (D2)  12.4 mm
 Width (B)  9 mm
 Ring Material  Steel
 Needle Material  Steel
 Cage Material  Plastic
 Spring Material  Plastic
 Torque Capacity  0.49
 Lubrication  Lubricated
 Shaft Mount Type  Press Fit
 Temperature Range  -30° to 110 °C
 RoHS  Compliant
 Weight (g)  2.4 g
 Brand  Neutral / CLI
Original ewc0809a 8x12x12 4x9 mm miniature one way clutch bearing with resin springs rust prevention light load type   cli bearings co ltd nw
