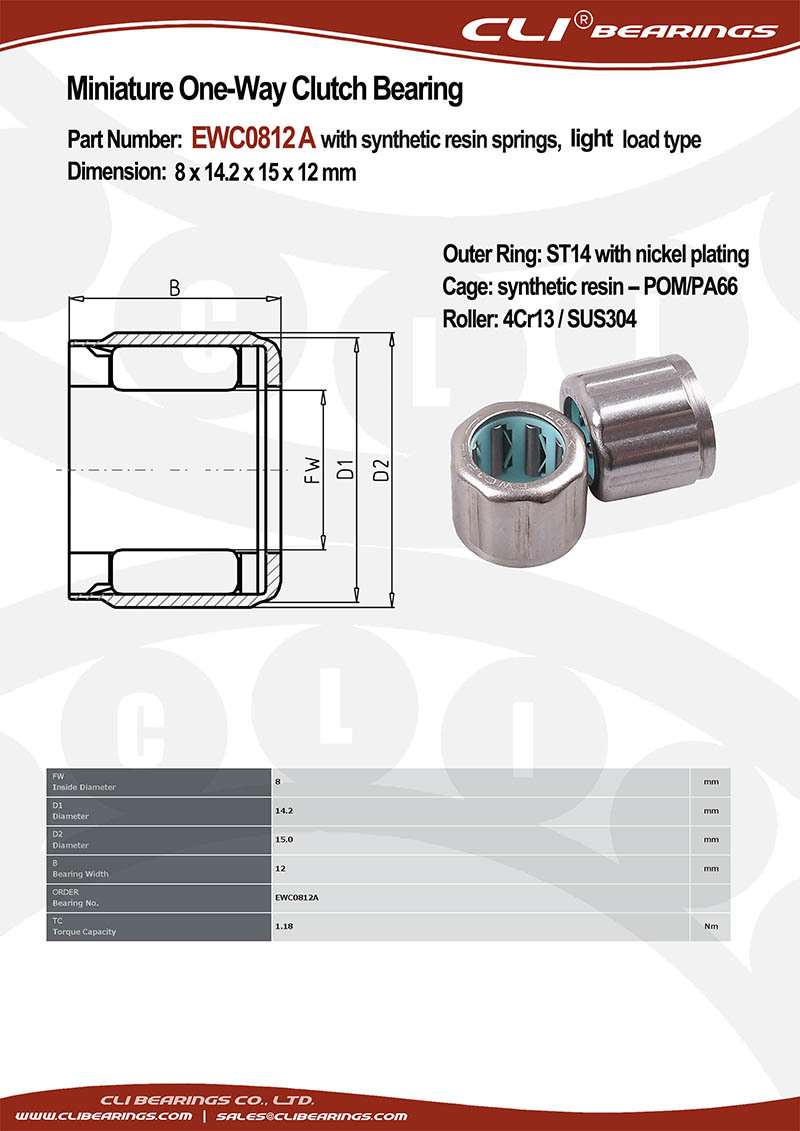

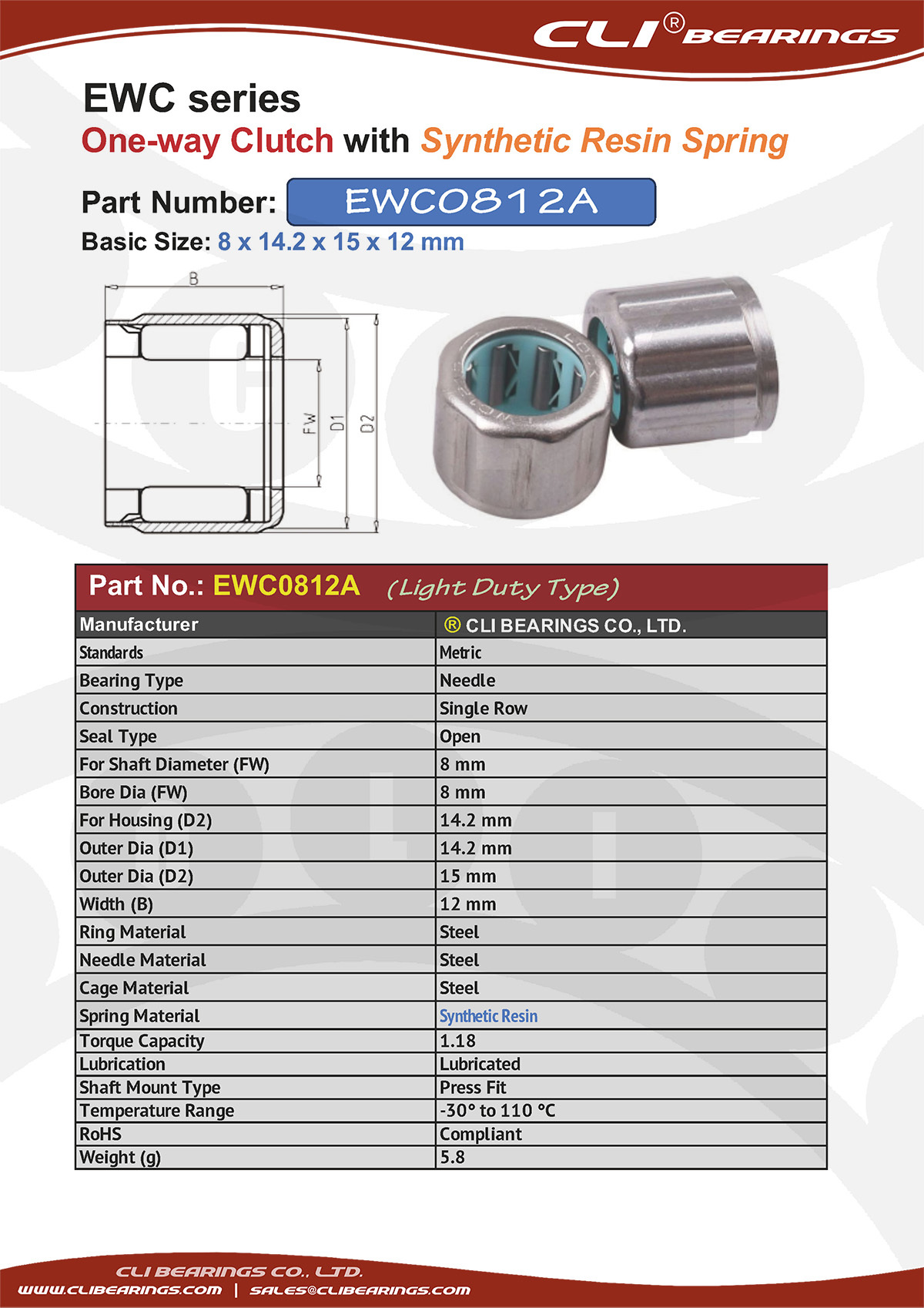

Roller Bearings-One-Way Clutch Bearings-EWC, EWC-A, EWC-C ( METRIC )- EWC0812A
| Part No.: EWC0812A |
| Standards |
Metric Size |
| Bearing Type |
One-way Clutch |
| Construction |
Single Row |
| Seal Type |
Open |
| For Shaft Diameter |
8 mm |
| Bore Dia (Fw) |
8 mm |
| For Housing ID |
14.2 mm |
| Outer Dia (D1) |
14.2 mm |
| Outer Dia (D2) |
15 mm |
| Width (B) |
12 mm |
| Ring Material |
Steel |
| Needle Material |
Steel |
| Cage Material |
Plastic |
| Spring Material |
Plastic |
| Torque Capacity |
1.18 |
| Lubrication |
Lubricated |
| Shaft Mount Type |
Press Fit |
| Temperature Range |
-30° to 110 °C |
| RoHS |
Compliant |
| Weight (g) |
5.8 g |
| Brand |
Neutral / CLI |
