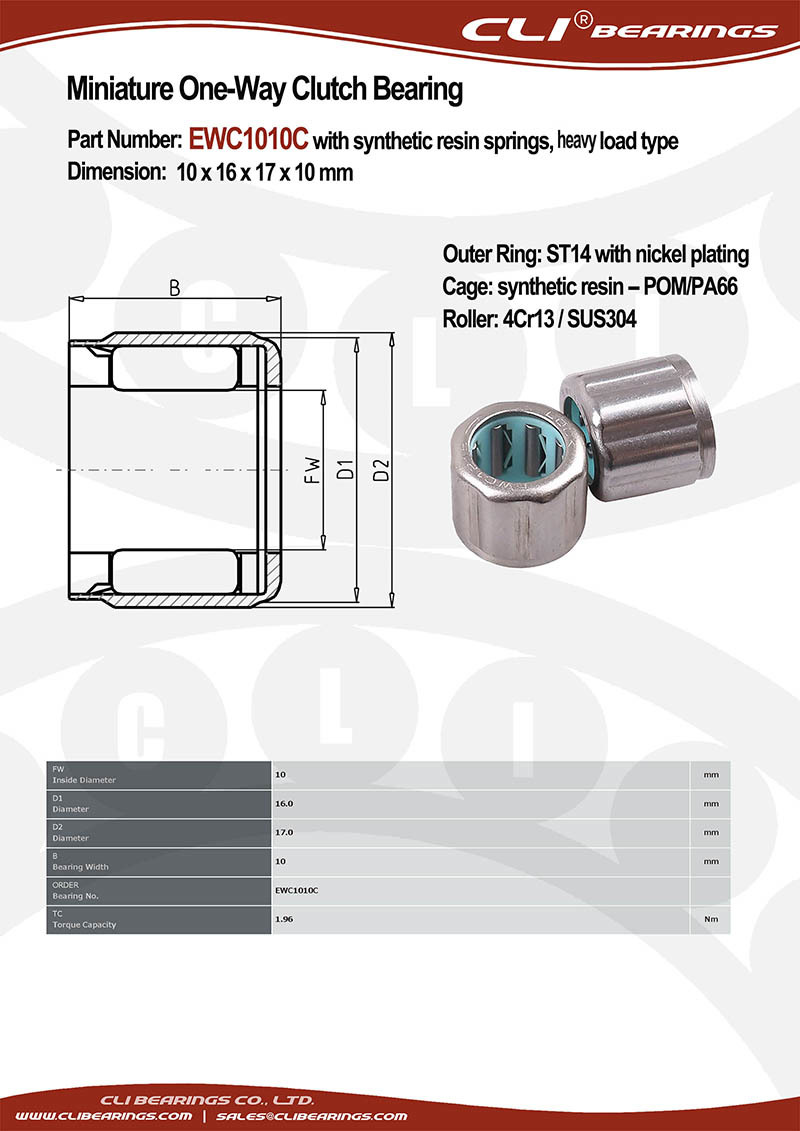

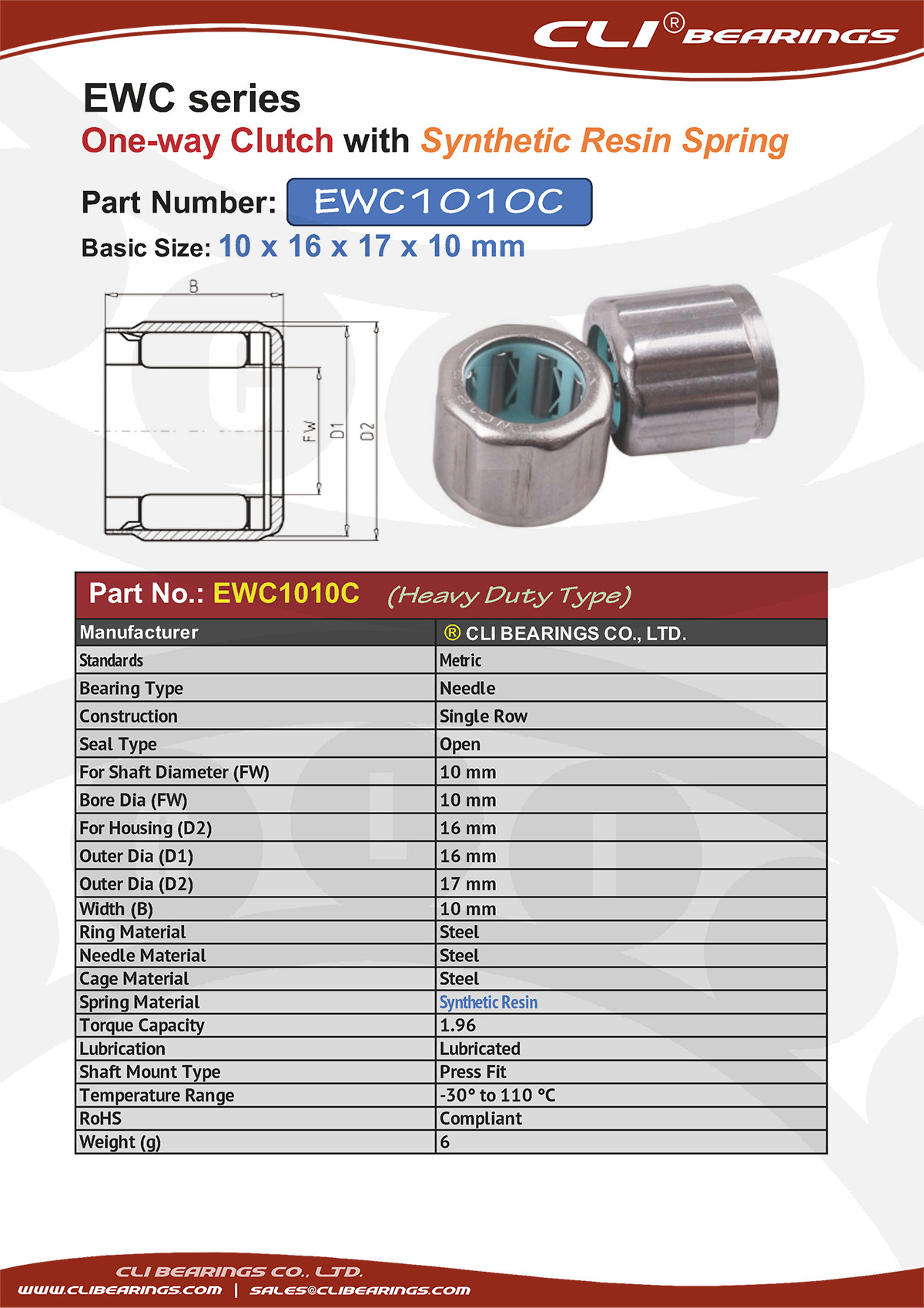

Roller Bearings-One-Way Clutch Bearings-EWC, EWC-A, EWC-C ( METRIC )- EWC1010C

 Part No.: EWC1010C
 Standards  Metric Size
 Bearing Type  One-way Clutch
 Construction  Single Row
 Seal Type  Open
 For Shaft Diameter  10 mm
 Bore Dia (Fw)  10 mm
 For Housing ID  16 mm
 Outer Dia (D1)  16 mm
 Outer Dia (D2)  17 mm
 Width (B)  10 mm
 Ring Material  Steel
 Needle Material  Steel
 Cage Material  Plastic
 Spring Material  Plastic
 Torque Capacity  1.96
 Lubrication  Lubricated
 Shaft Mount Type  Press Fit
 Temperature Range  -30° to 110 °C
 RoHS  Compliant
 Weight (g)  6
 Brand  Neutral / CLI
Original ewc1010c 10x16x17x10 mm miniature one way clutch bearing with resin springs rust prevention heavy load type   cli bearings co ltd nw
