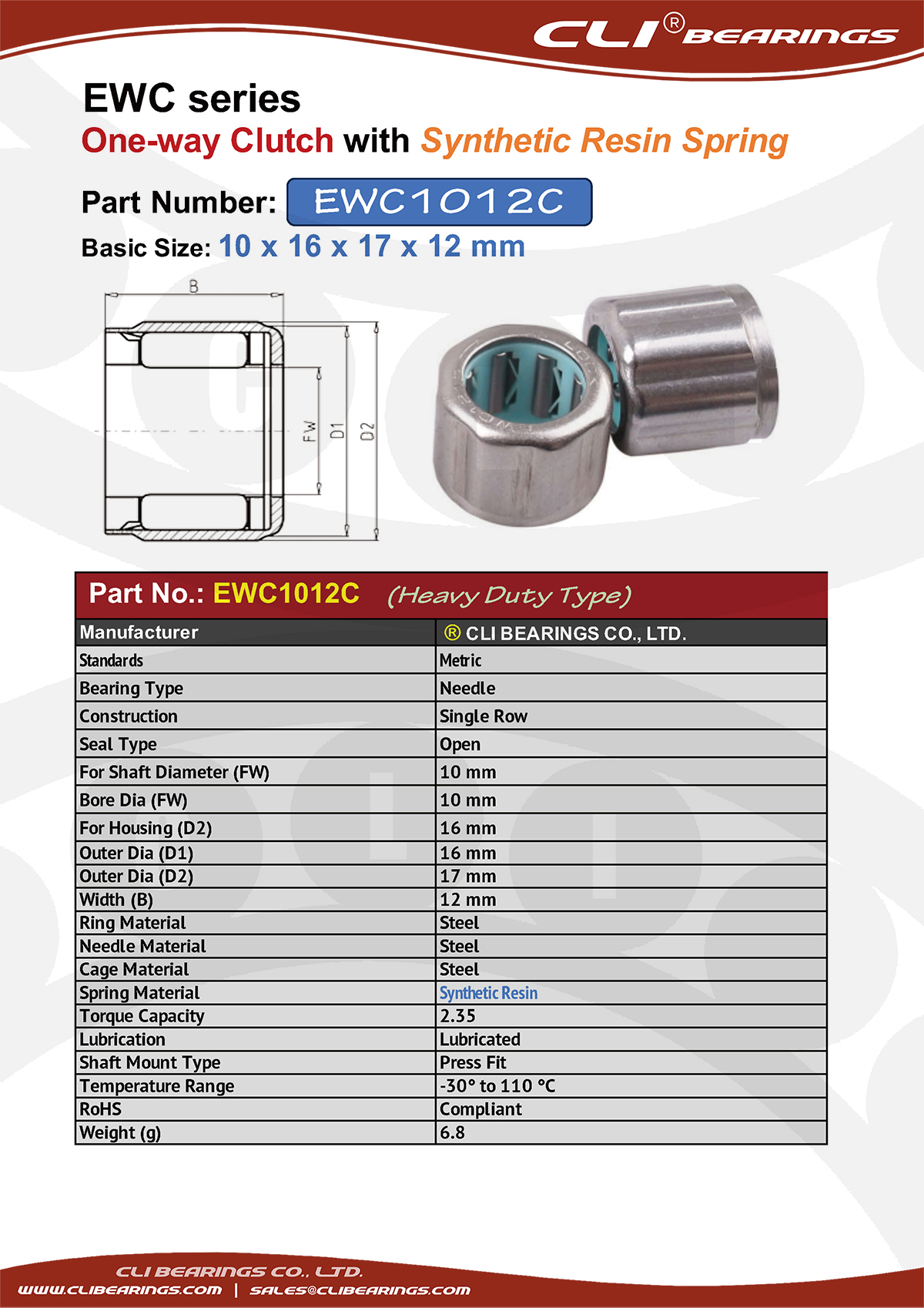

| Part No.: EWC1012C | |
| Standards | Metric Size |
| Bearing Type | One-way Clutch |
| Construction | Single Row |
| Seal Type | Open |
| For Shaft Diameter | 10 mm |
| Bore Dia (Fw) | 10 mm |
| For Housing ID | 16 mm |
| Outer Dia (D1) | 16 mm |
| Outer Dia (D2) | 17 mm |
| Width (B) | 12 mm |
| Ring Material | Steel |
| Needle Material | Steel |
| Cage Material | Plastic |
| Spring Material | Plastic |
| Torque Capacity | 2.35 |
| Lubrication | Lubricated |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| Weight (g) | 6.8 |
| Brand | Neutral / CLI |
