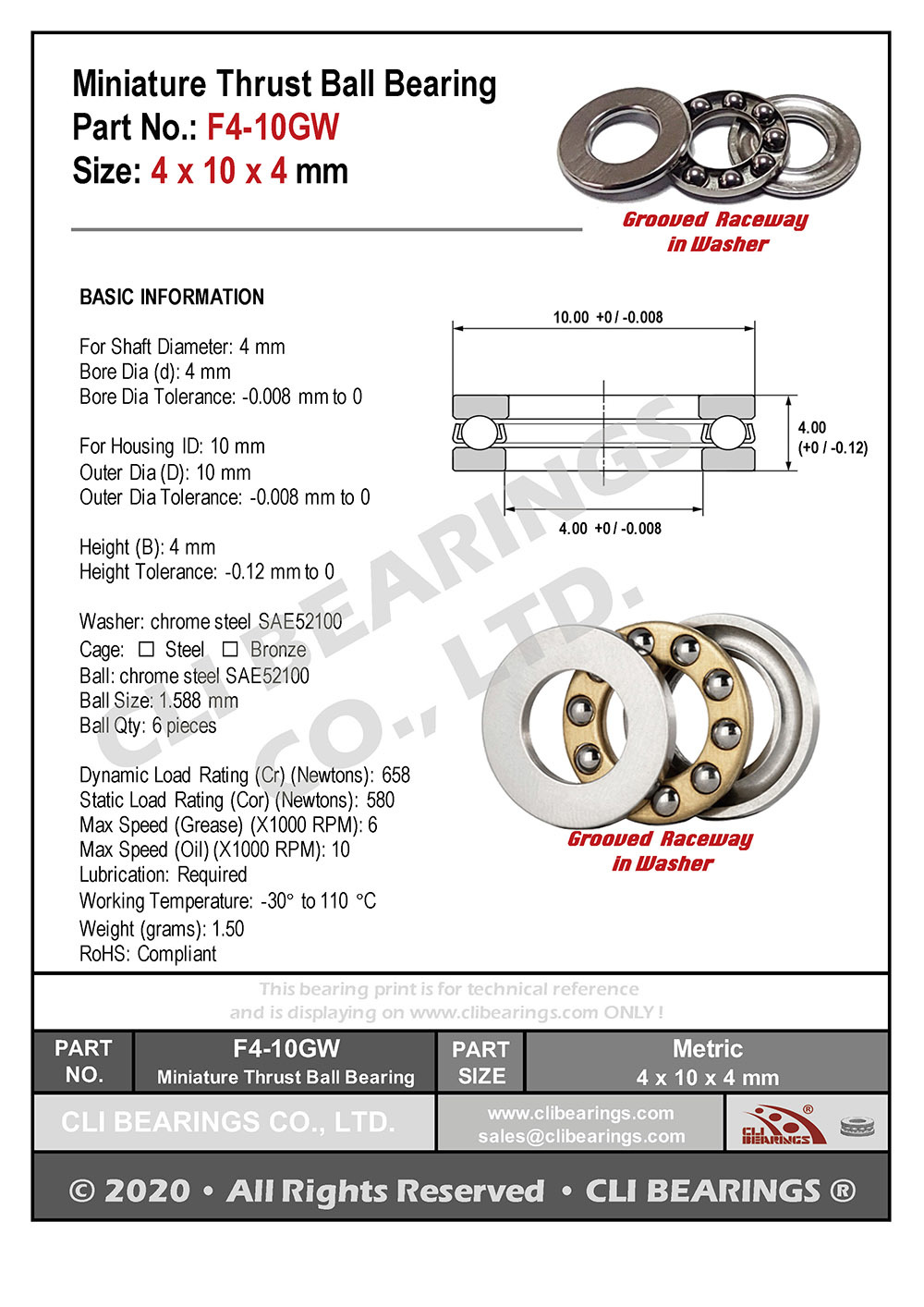

Ball Bearings-Miniature Ball Bearings-Miniature thrust ball bearings with GROOVED WASHER, chrome steel AISI52100, METRIC sizes - F4-10GW (F4-10M) miniature thrust ball bearing 4x10x4 mm

 Part No.: F4-10GW (F4-10M)
 Standards  Metric Size
 Bearing Type  Miniature Thrust Ball Bearing
 For Load Direction  Thrust
 Seal Type  Open
 Flat Washer / Grooved Wahser  with grooved raceway
 For Shaft Diameter  4 mm
 Bore Dia (d)  4 mm
 Bore Dia Tolerance  -0.008 mm to 0
 For Housing ID  10 mm
 Outer Dia (D)  10 mm
 Outer Dia Tolerance  -0.008 mm to 0
 Height  4 mm
 Height Tolerance  -0.12 mm to 0
 Washer Material  52100 Chrome steel
 Ball Material  52100 Chrome steel
 Cage Material  Bronze / Steel
 Dynamic Load Rating (Cr) (Newtons)  658
 Static Load Rating (Cor) (Newtons)  580
 Max Speed (Grease) (X1000 RPM)  6
 Max Speed (Oil) (X1000 RPM)   10
 Lubrication  Required
 Temperature Range  -30° to 110 °C
 RoHS  Compliant
 Ball Qty (pcs)  6
 Ball Dia  1.588 mm
 Weight (grams)  1.5
 Brand  Neutral / CLI
