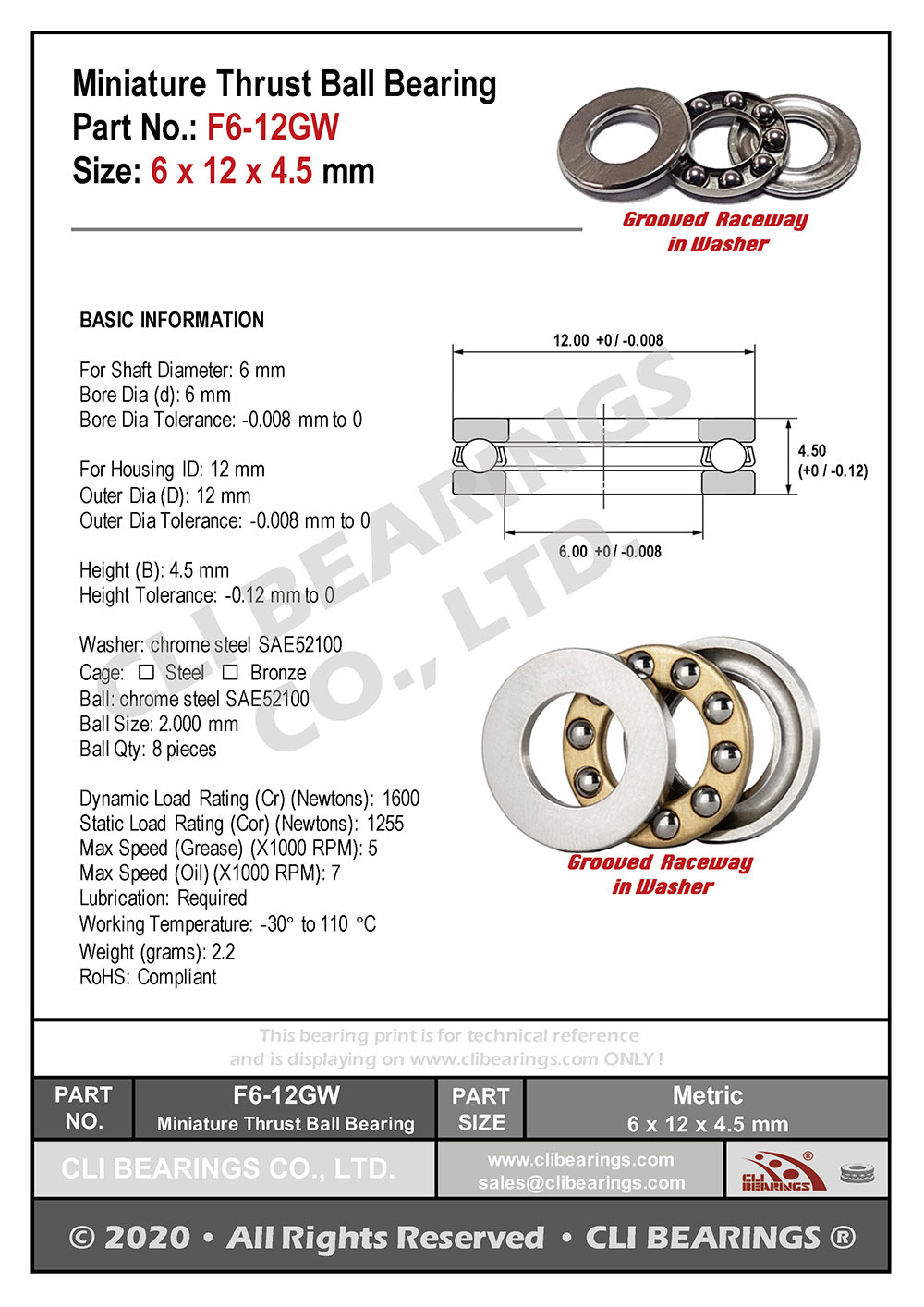

| Part No.: F6-12GW (F6-12M) | |
| Standards | Metric Size |
| Bearing Type | Miniature Thrust Ball Bearing |
| For Load Direction | Thrust |
| Seal Type | Open |
| Flat Washer / Grooved Wahser | with grooved raceway |
| For Shaft Diameter | 6 mm |
| Bore Dia (d) | 6 mm |
| Bore Dia Tolerance | -0.008 mm to 0 |
| For Housing ID | 12 mm |
| Outer Dia (D) | 12 mm |
| Outer Dia Tolerance | -0.008 mm to 0 |
| Height | 4.5 mm |
| Height Tolerance | -0.12 mm to 0 |
| Washer Material | 52100 Chrome steel |
| Ball Material | 52100 Chrome steel |
| Cage Material | Bronze / Steel |
| Dynamic Load Rating (Cr) (Newtons) | 1600 |
| Static Load Rating (Cor) (Newtons) | 1255 |
| Max Speed (Grease) (X1000 RPM) | 5 |
| Max Speed (Oil) (X1000 RPM) | 7 |
| Lubrication | Required |
| Temperature Range | -30°C to 110 °C |
| RoHS | Compliant |
| Ball Qty (pcs) | 8 |
| Ball Dia | 2.000 mm |
| Weight (grams) | 2.2 |
| Brand | Neutral / CLI |
