Ball Bearings-Miniature Ball Bearings-Flanged miniature ball bearings, CHROME STEEL AISI52100, METRIC sizes- F602

Bearing Type Ball
For Load Direction Radial
Construction Single Row
Ball Bearing Type Flanged
Seal Type Open
Part Number F602
For Shaft Diameter 2 mm
Bore Dia (d) 2 mm
Bore Dia Tolerance -0.008mm to 0
For Housing ID 7mm
Outer Dia (D) 7mm
Outer Dia Tolerance -0.008mm to 0
Width (B) 2.8mm
Width Tolerance -0.12mm to 0
Flange OD 8.5mm
Flange Thickness 0.7mm
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Shield Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (Newtons) 328
Static Load Rating (Cor) (Newtons) 103
Max Speed (Grease) (X1000 RPM) 60
Max Speed (Oil) (X1000 RPM)  71
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.002mm to 0.013mm
RoHS Compliant
Ball Qty 7
Ball Dia 1.2000mm
Weight (grams) 0.6

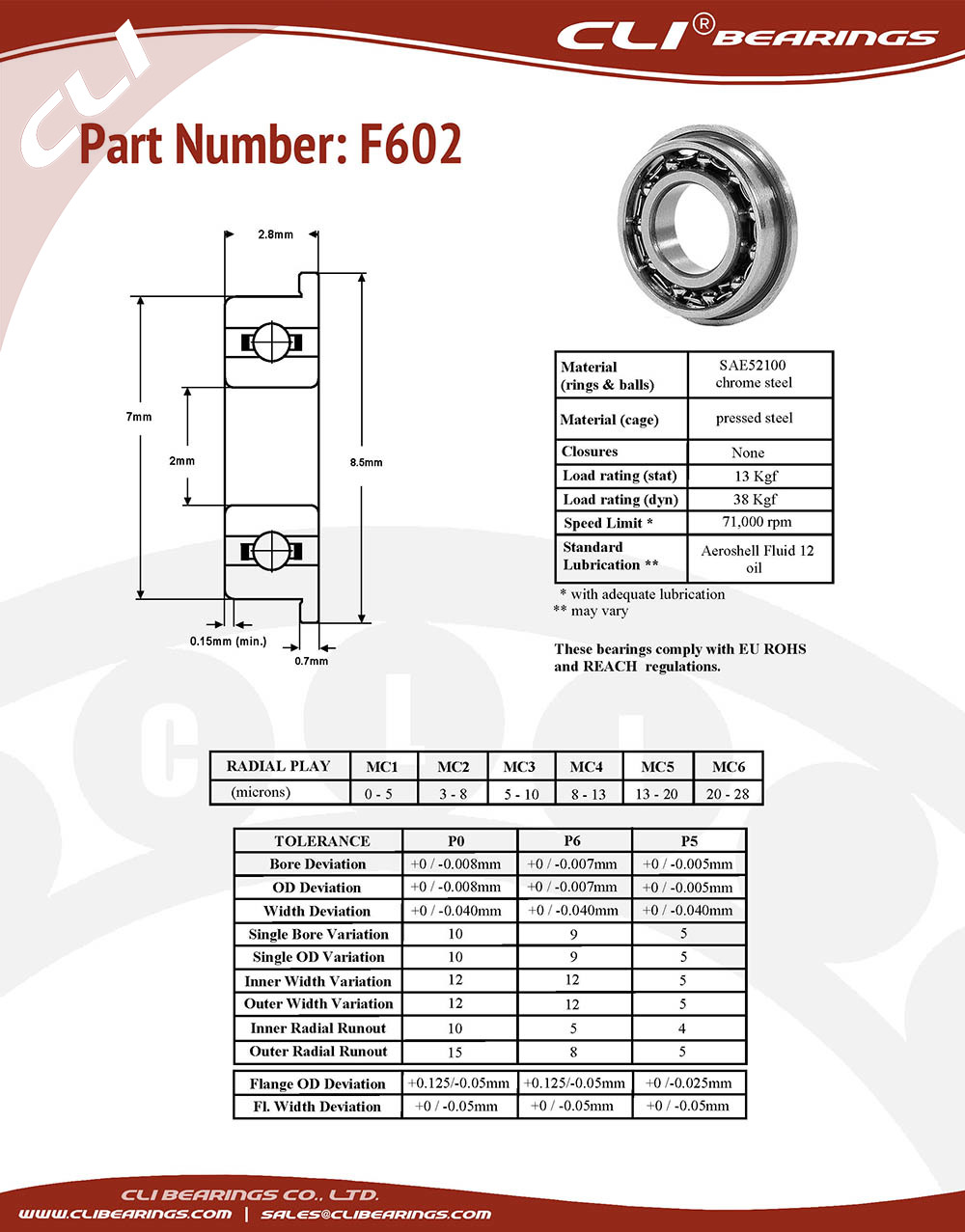

Original f602
