Ball Bearings-Miniature Ball Bearings-Flanged miniature ball bearings, CHROME STEEL AISI52100, METRIC sizes- F605ZZ flanged miniature bearing, 5x14x5mm, double shielded - CLI BEARINGS CO., LTD.

Bearing Type Ball
For Load Direction Radial
Construction Single Row
Ball Bearing Type Flanged
Seal Type Shielded
Part Number F605zz
For Shaft Diameter 5 mm
Bore Dia (d) 5 mm
Bore Dia Tolerance -0.008mm to 0
For Housing ID 14mm
Outer Dia (D) 14mm
Outer Dia Tolerance -0.008mm to 0
Width (B) 5mm
Width Tolerance -0.12mm to 0
Flange OD 16mm
Flange Thickness 1mm
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Shield Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (Newtons) 1130
Static Load Rating (Cor) (Newtons) 406
Max Speed (Grease) (X1000 RPM) 40
Max Speed (Oil) (X1000 RPM)  50
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.002mm to 0.013mm
RoHS Compliant
Ball Qty 7
Ball Dia 2.3810mm
Weight (grams) 4.12

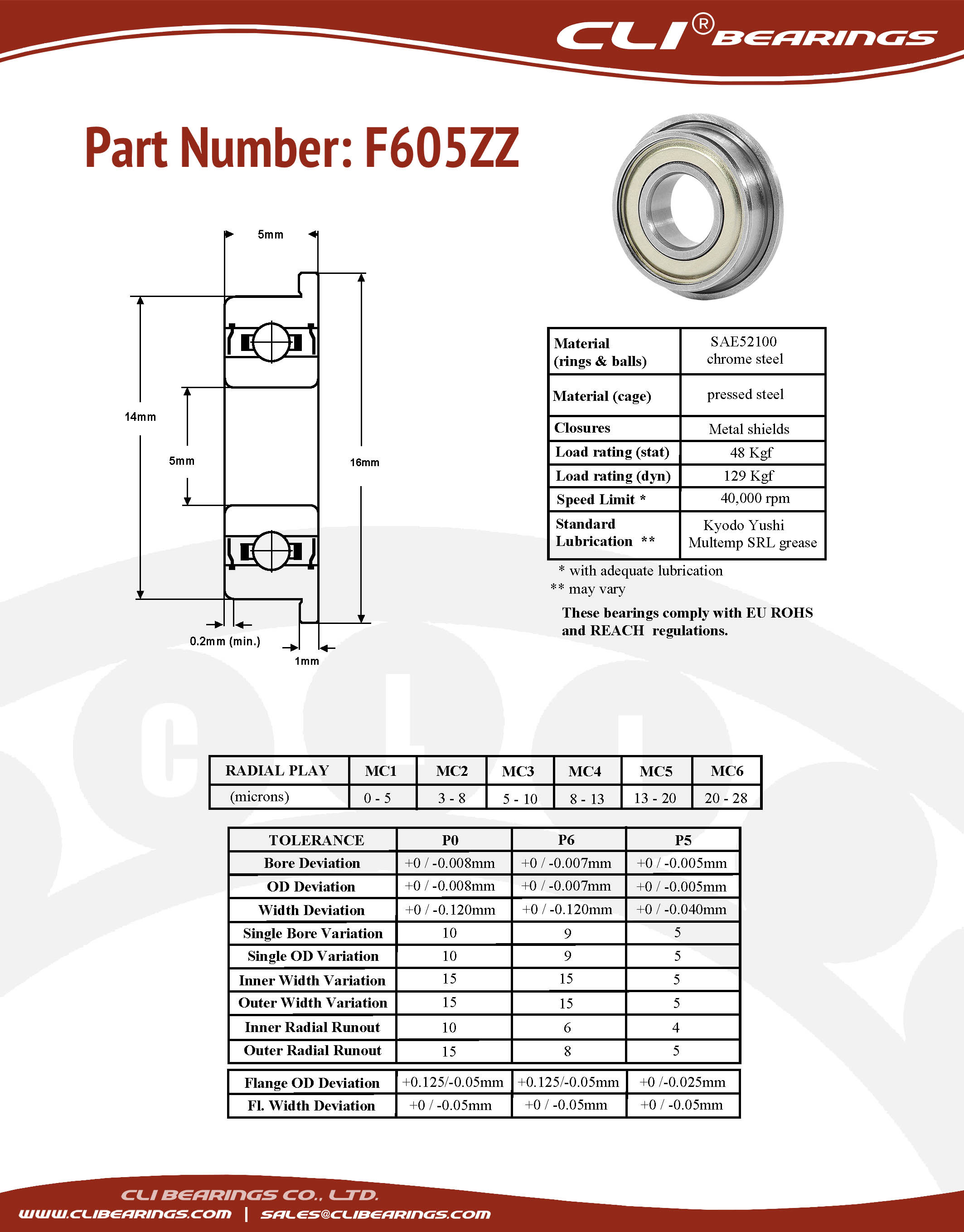

Original f605zz flanged miniature bearing 5x14x5mm cli nw
