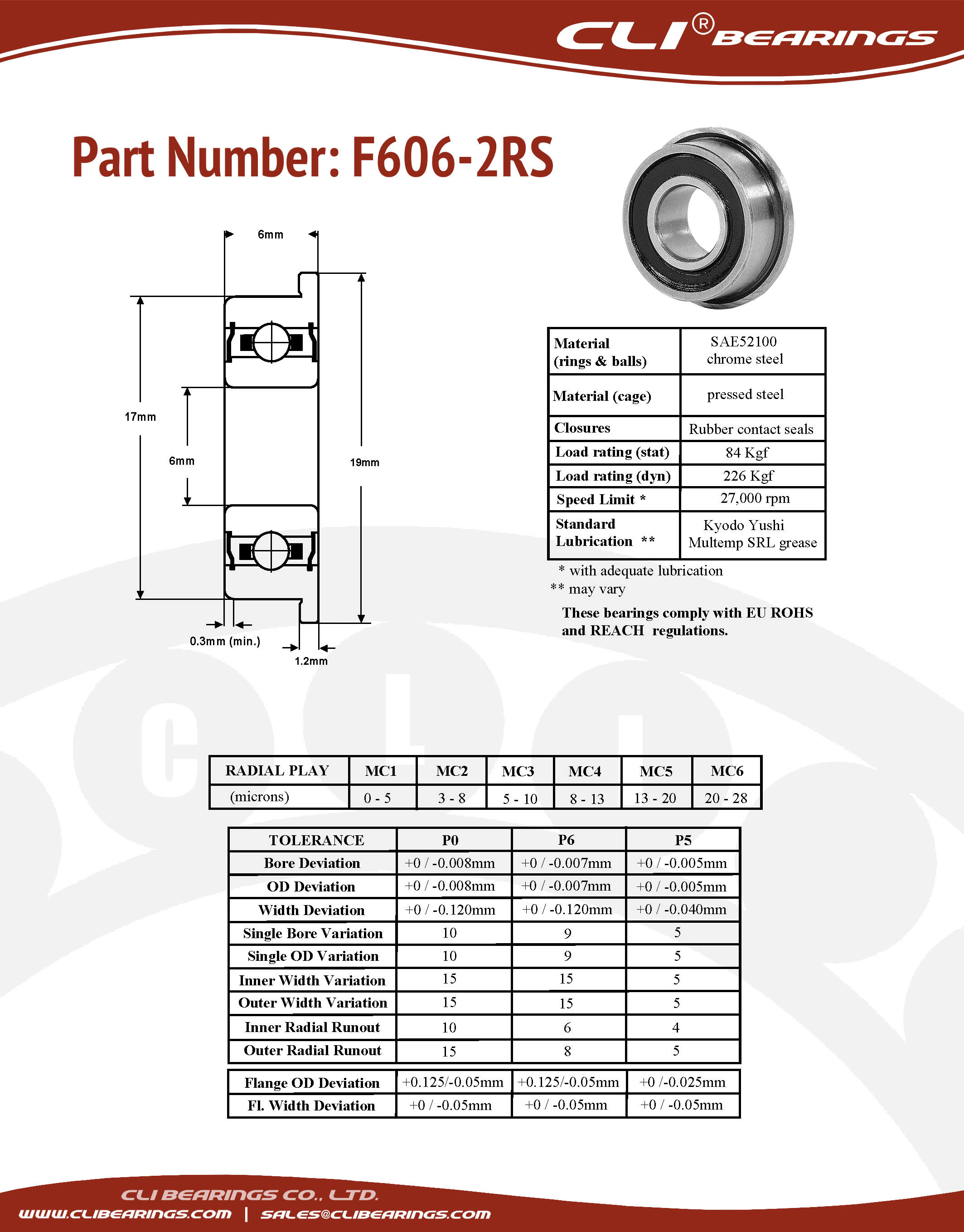

Ball Bearings-Miniature Ball Bearings-Flanged miniature ball bearings, CHROME STEEL AISI52100, METRIC sizes- F606-2RS flanged miniature bearing, 6x17x6mm, double sealed - CLI BEARINGS CO., LTD.

Bearing Type Ball
For Load Direction Radial
Construction Single Row
Ball Bearing Type Flanged
Seal Type Sealed
Part Number F606 2rs
For Shaft Diameter 6 mm
Bore Dia (d) 6 mm
Bore Dia Tolerance -0.008mm to 0
For Housing ID 17mm
Outer Dia (D) 17mm
Outer Dia Tolerance -0.008mm to 0
Width (B) 6mm
Width Tolerance -0.12mm to 0
Flange OD 19mm
Flange Thickness 1.2mm
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Shield Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (Newtons) 1924
Static Load Rating (Cor) (Newtons) 677
Max Speed (Grease) (X1000 RPM) 38
Max Speed (Oil) (X1000 RPM)  45
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.002mm to 0.013mm
RoHS Compliant
Ball Qty 6
Ball Dia 3.5000mm
Weight (grams) 7.42
Original f606 2rs flanged miniature bearing 6x17x6mm cli nw
