Ball Bearings-Miniature Ball Bearings-Flanged miniature ball bearings, CHROME STEEL AISI52100, METRIC sizes- F696 flanged miniature bearing, 9x17x4mm, Open type - CLI BEARINGS CO., LTD.

Bearing Type Ball
For Load Direction Radial
Construction Single Row
Ball Bearing Type Flanged
Seal Type Open
Part Number F696
For Shaft Diameter 6 mm
Bore Dia (d) 6 mm
Bore Dia Tolerance -0.008mm to 0
For Housing ID 15mm
Outer Dia (D) 15mm
Outer Dia Tolerance -0.008mm to 0
Width (B) 5mm
Width Tolerance -0.12mm to 0
Flange OD 17mm
Flange Thickness 1.2mm
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Shield Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (Newtons) 1139
Static Load Rating (Cor) (Newtons) 418
Max Speed (Grease) (X1000 RPM) 40
Max Speed (Oil) (X1000 RPM)  45
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.002mm to 0.013mm
RoHS Compliant
Ball Qty 7
Ball Dia 2.3810mm
Weight (grams) 4.24

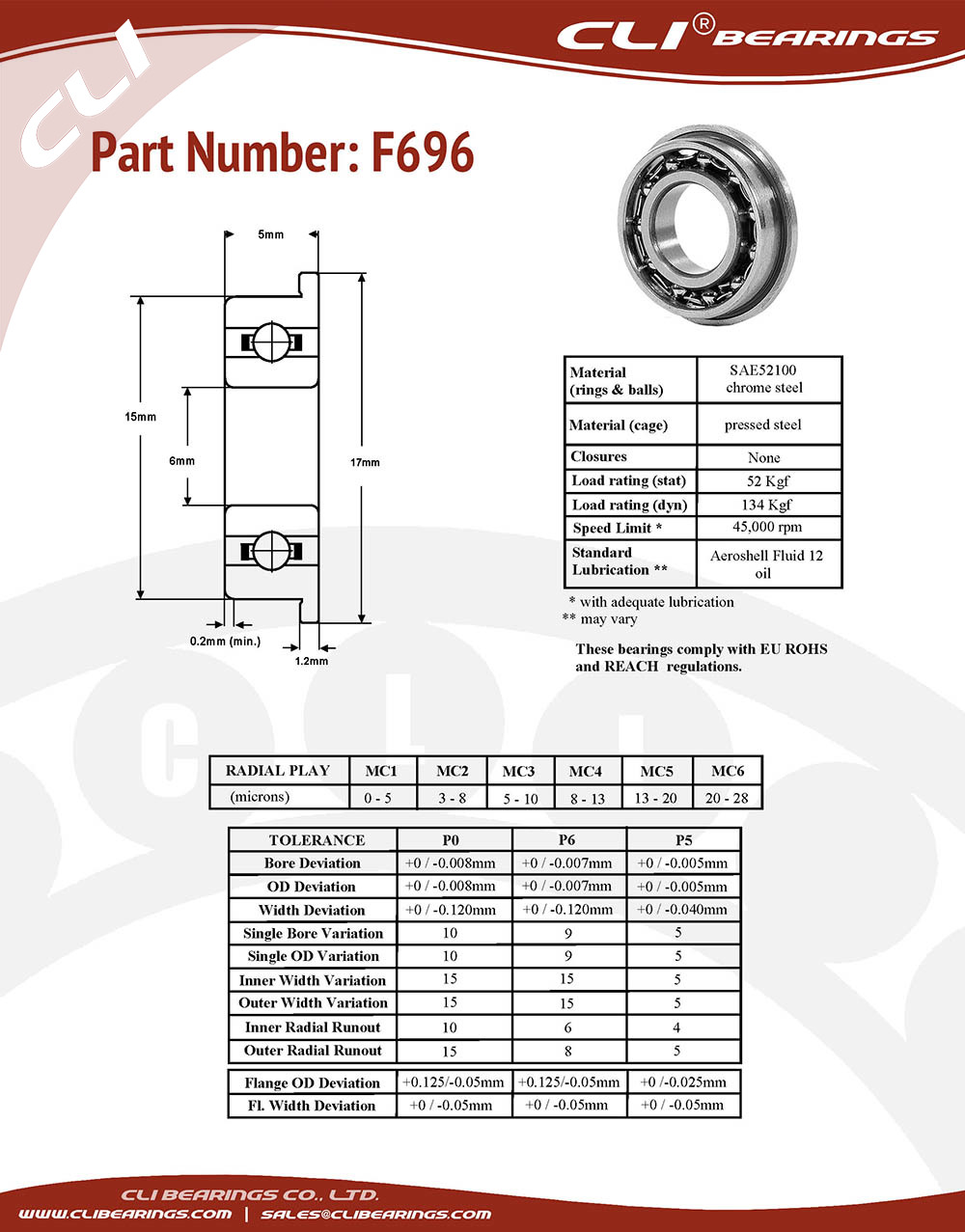

Original f696 flanged miniature bearing 6x15x5mm open type   cli bearings co ltd
