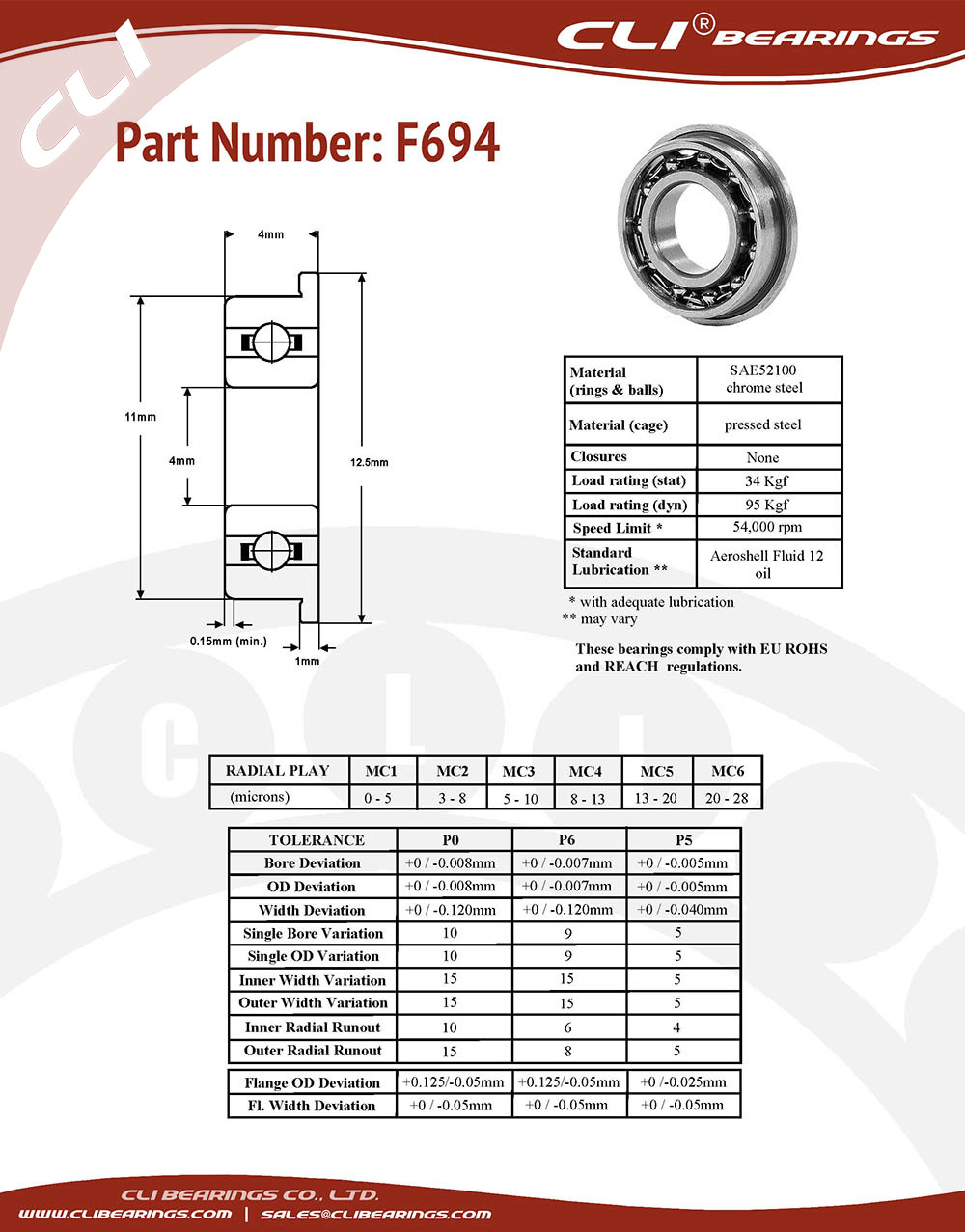

Ball Bearings-Miniature Ball Bearings-Flanged miniature ball bearings, CHROME STEEL AISI52100, METRIC sizes- F694 flanged miniature bearing, 4x11x4mm, Open type - CLI BEARINGS CO., LTD.-flanged-miniature-bearing-4x11x4mm_CLI BEARINGS CO.,LTD.

Bearing Type Ball
For Load Direction Radial
Construction Single Row
Ball Bearing Type Flanged
Seal Type Open
Part Number F694
For Shaft Diameter 4 mm
Bore Dia (d) 4 mm
Bore Dia Tolerance -0.008mm to 0
For Housing ID 11mm
Outer Dia (D) 11mm
Outer Dia Tolerance -0.008mm to 0
Width (B) 4mm
Width Tolerance -0.12mm to 0
Flange OD 12.5mm
Flange Thickness 1mm
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Shield Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (Newtons) 814
Static Load Rating (Cor) (Newtons) 280
Max Speed (Grease) (X1000 RPM) 48
Max Speed (Oil) (X1000 RPM)  56
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.002mm to 0.013mm
RoHS Compliant
Ball Qty 7
Ball Dia 2.0000mm
Weight (grams) 1.91
