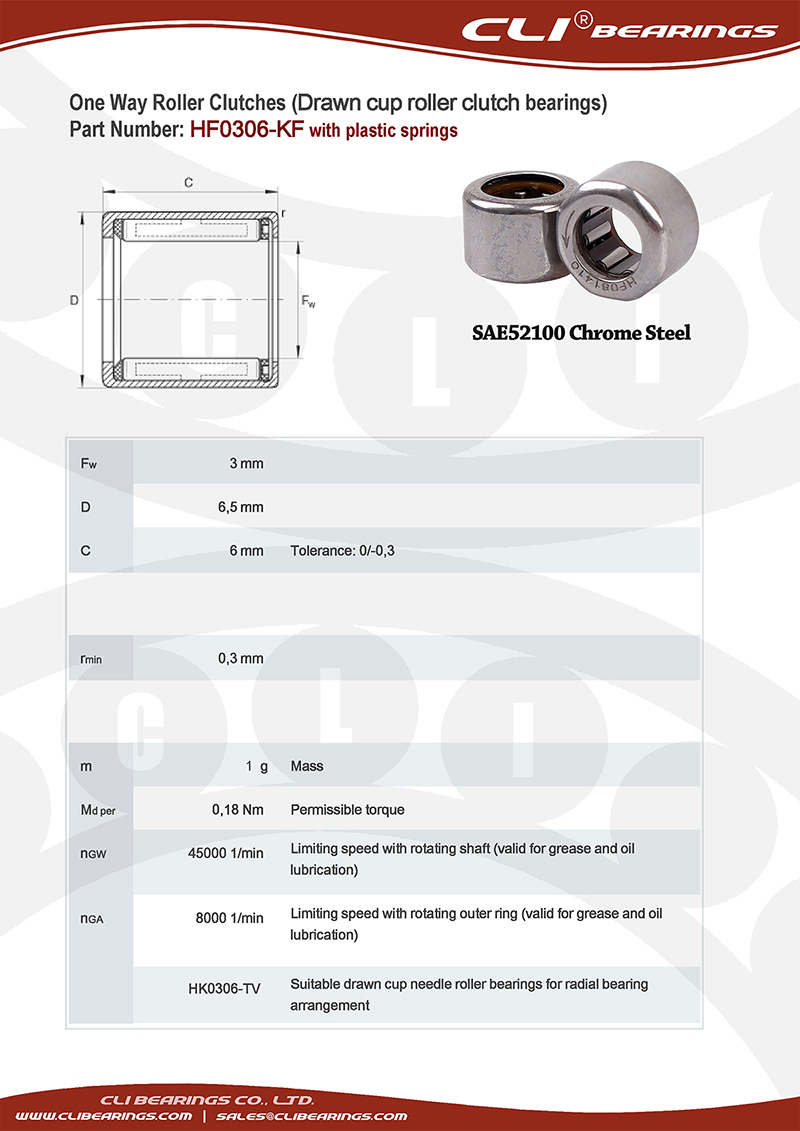

Roller Bearings-One-Way Clutches-HF, HF-KF, HF-R, HF-KF-R ( METRIC )- HF0306-KF

 Part No.: HF0306-KF
 Standard  Metric Size
 Bearing Type  One-Way Clutch
 Construction  Single Row
 Seal Type  Open
 System of Measurement  Metric
 For Shaft Diameter  3 mm
 Bore Dia (d)  3 mm
 For Housing ID  6,5 mm
 Outer Dia (D)  6,5 mm
 Width (B)  6 mm
 Ring Material  Steel
 Needle Material  Steel
 Cage Material  Steel
 Spring Material  Plastic
 Knurledy  No
 Md per  0,18 Nm
 nGW  45000 1/min
 nGA  8000 1/min
 Lubrication  Lubricated
 Shaft Mount Type  Press Fit
 Temperature Range  -30° to 110 °C
 RoHS  Compliant
 Weight (g)  1
 Brand  CLI
Original hf0306 kf 3x6 5x6 mm one way roller clutch bearing with plastic springs nw
