Roller Bearings-One-Way Clutches-HF, HF-KF, HF-R, HF-KF-R ( METRIC )- HF0612

 Part No.: HF0612
 Standards  Metric Size

 Bearing Type

 One-Way Clutch
 Construction  Single Row
 Seal Type  Open
 System of Measurement  Metric
 For Shaft Diameter  6 mm
 Bore Dia (d)  6 mm
 For Housing ID  10 mm
 Outer Dia (D)  10 mm
 Width (B)  12 mm
 Ring Material  Steel
 Needle Material  Steel
 Cage Material  Steel
 Spring Material  Steel
 Knurledy  No
 Md per  1,76 Nm
 nGW   23000 1/min
 nGA  13000 1/min
 Lubrication  Lubricated
 Shaft Mount Type  Press Fit
 Temperature Range  -30° to 110 °C
 RoHS  Compliant
 Brand  CLI

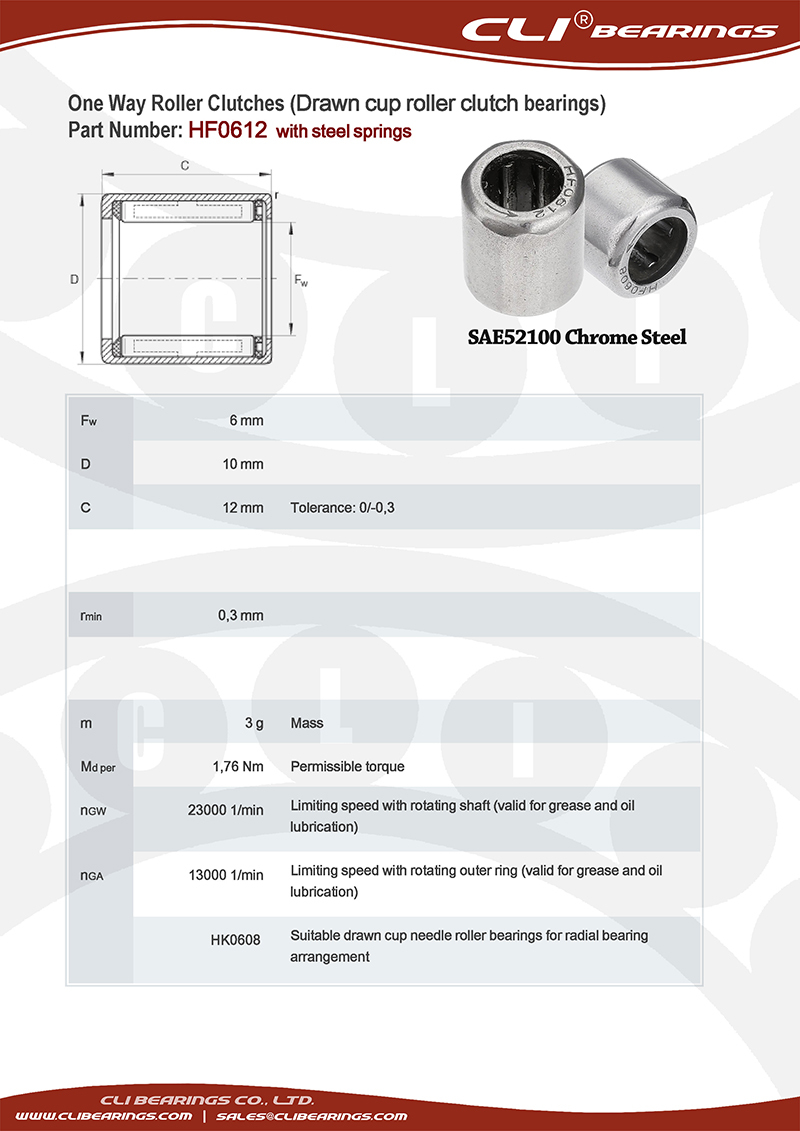

Original hf0612 6x10x12 mm one way roller clutch bearing with steel springs   cli bearings co ltd nw
