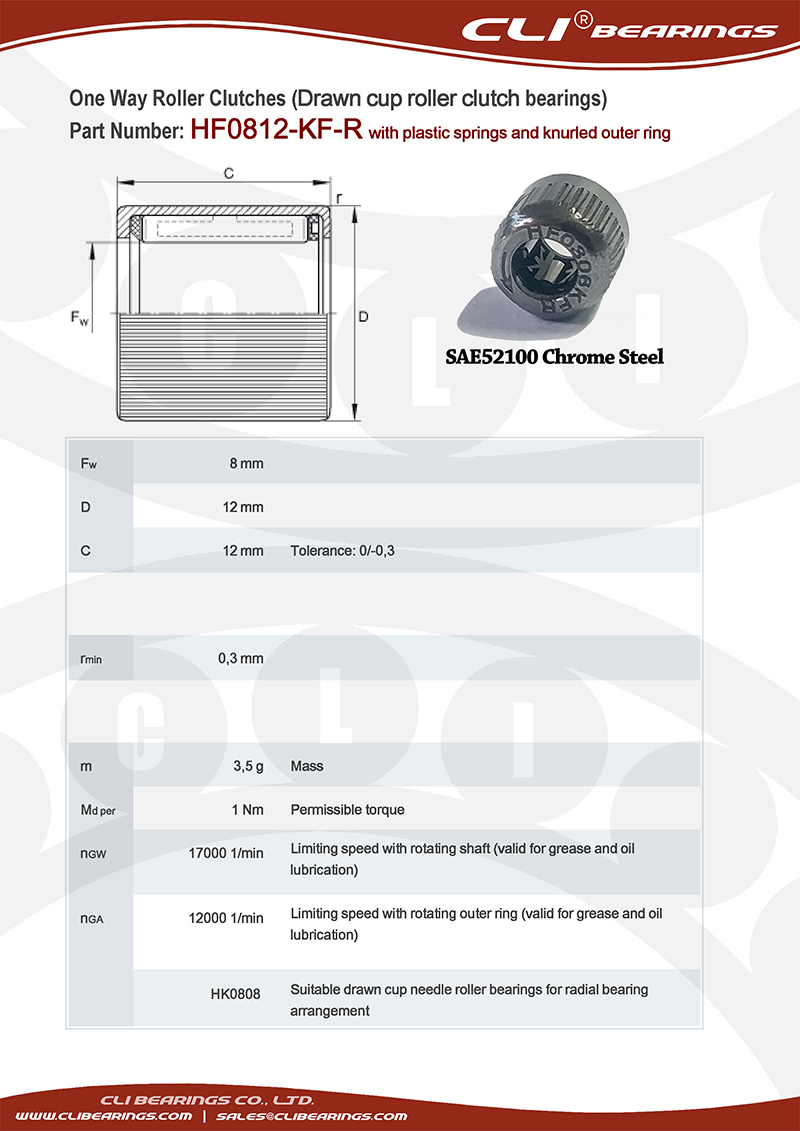

Roller Bearings-One-Way Clutch Bearings-HF, HF-KF, HF-R, HF-KF-R ( METRIC )- HF0812-KF-R

 Part No.: HF0812-KF-R
 Standards  Metric Size
 Bearing Type  One-Way Clutch
 Construction  Single Row
 Seal Type  Open
 System of Measurement  Metric
 For Shaft Diameter  8 mm
 Bore Dia (d)  8 mm
 For Housing ID  12 mm
 Outer Dia (D)  12 mm
 Width (B)  12 mm
 Ring Material  Steel
 Needle Material  Steel
 Cage Material  Steel
 Spring Material  Plastic
 Knurledy  Yes
 Md per  1 Nm
 nGW  17000 1/min
 nGA  12000 1/min
 Lubrication  Lubricated
 Shaft Mount Type  Press Fit
 Temperature Range  -30° to 110 °C
 RoHS  Compliant
 Weight (g)  3,5
 Brand  CLI
Original hf0812 kfr 8x12x12 mm one way roller clutch bearing with plastic springs and knurled outer ring   cli bearings co ltd nw
