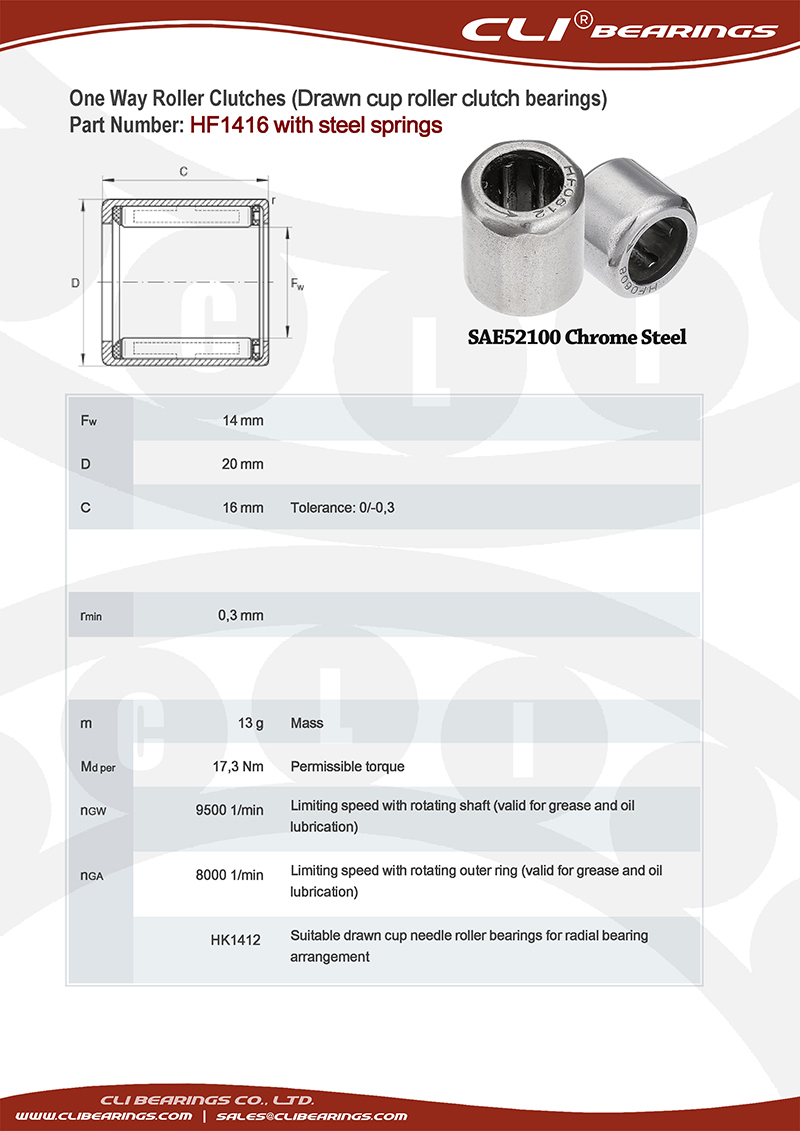

Roller Bearings-One-Way Clutch Bearings-HF, HF-KF, HF-R, HF-KF-R ( METRIC )- HF1416

 Part No.: HF1416
 Standards  Metric Size
 Bearing Type  One-Way Clutch
 Construction  Single Row
 Seal Type  Open
 System of Measurement  Metric
 For Shaft Diameter  14 mm
 Bore Dia (d)  14 mm
 For Housing ID  20 mm
 Outer Dia (D)  20 mm
 Width (B)  16 mm
 Ring Material   Steel
 Needle Material  Steel
 Cage Material  Steel
 Spring Material  Steel
 Knurledy  No
 Md per  17,3 Nm
 nGW  9500 1/min
 nGA  8000 1/min
 Lubrication  Lubricated
 Shaft Mount Type  Press Fit
 Temperature Range  -30° to 110 °C
 RoHS  Compliant
 Weight (g)  13
 Brand  Neutral / CLI
Original hf1416 14x20x16 mm one way roller clutch bearing with steel springs   cli bearings co ltd nw
