Roller Bearings-One-Way Clutches-HF, HF-KF, HF-R, HF-KF-R ( METRIC )- HF1616

 Part No.: HF1616
 Standards  Metric Size
 Bearing Type  One-way Clutch
 Construction  Single Row
 Seal Type  Open
 System of Measurement  Metric
 For Shaft Diameter  16 mm
 Bore Dia (d)  16 mm
 For Housing ID  22 mm
 Outer Dia (D)  22 mm
 Width (B)  16 mm
 Ring Material  Steel
 Needle Material  Steel
 Cage Material  Steel
 Spring Material  Steel
 Knurledy  No
 Md per  20,5 Nm
 nGW  8500 1/min
 nGA  7500 1/min
 Lubrication  Lubricated
 Shaft Mount Type  Press Fit
 Temperature Range  -30° to 110 °C
 RoHS  Compliant
 Weight (g)  14
 Brand  Neutral / CLI

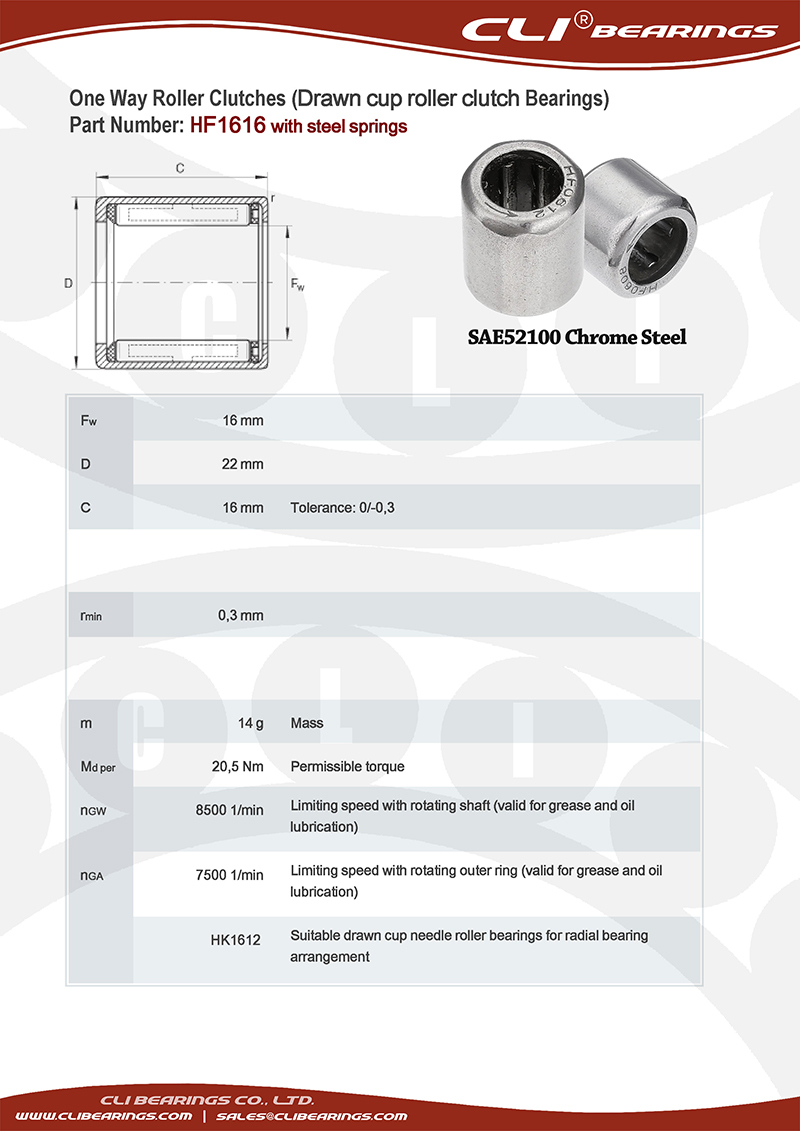

Original hf1616 16x22x16 mm one way roller clutch bearing with steel springs   cli bearings co ltd nw
