Roller Bearings-One-Way Clutch Bearings-HF, HF-KF, HF-R, HF-KF-R ( METRIC )- HF3020

 Part No.: HF3020
 Standards  Metric Size
 Bearing Type  One-way Clutch
 Construction  Single Row
 Seal Type  Open
 System of Measurement  Metric
 For Shaft Diameter  30 mm
 Bore Dia (d)  30 mm
 For Housing ID  37 mm
 Outer Dia (D)  37 mm
 Width (B)  20 mm
 Ring Material  Steel
 Needle Material  Steel
 Cage Material  Steel
 Spring Material  Steel
 Knurledy  No
 Md per  90 Nm
 nGW  4500 1/min
 nGA  4500 1/min
 Lubrication  Lubricated
 Shaft Mount Type  Press Fit
 Temperature Range   -30° to 110 °C
 RoHS  Compliant
 Weight (g)  36
 Brand  Neutral / CLI

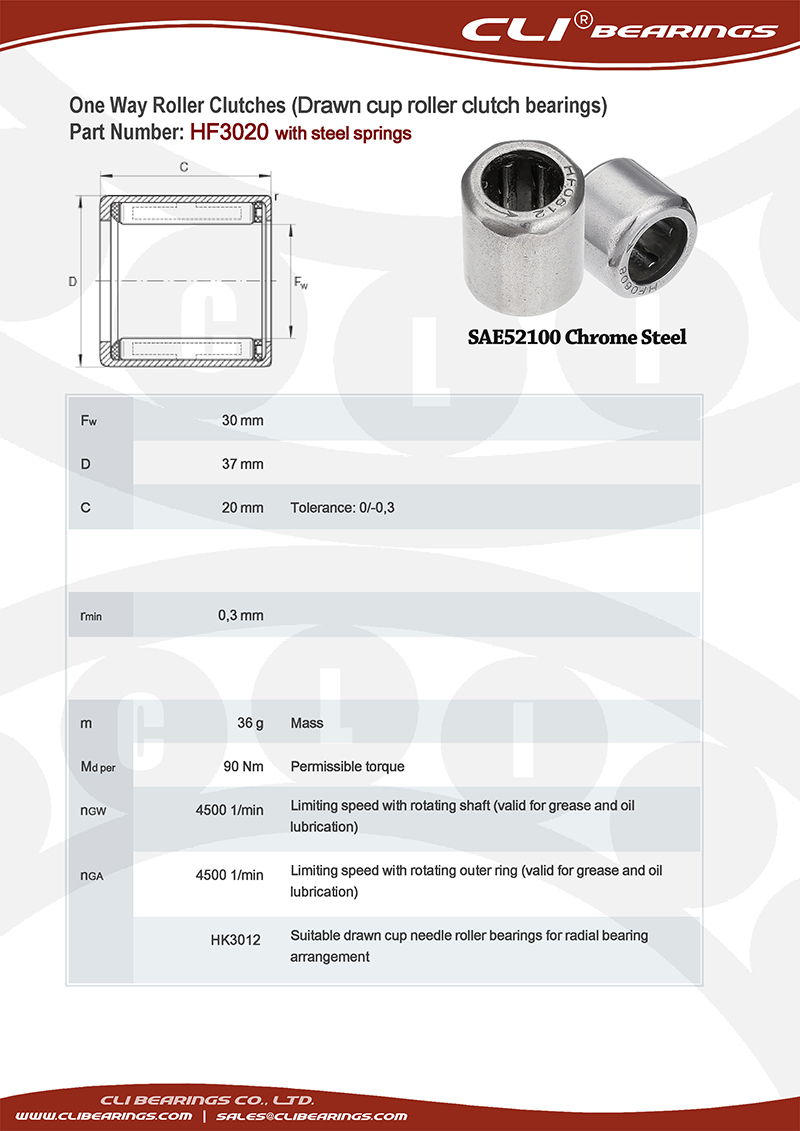

Original hf3020 30x37x20 mm one way roller clutch bearing with steel springs   cli bearings co ltd nw
