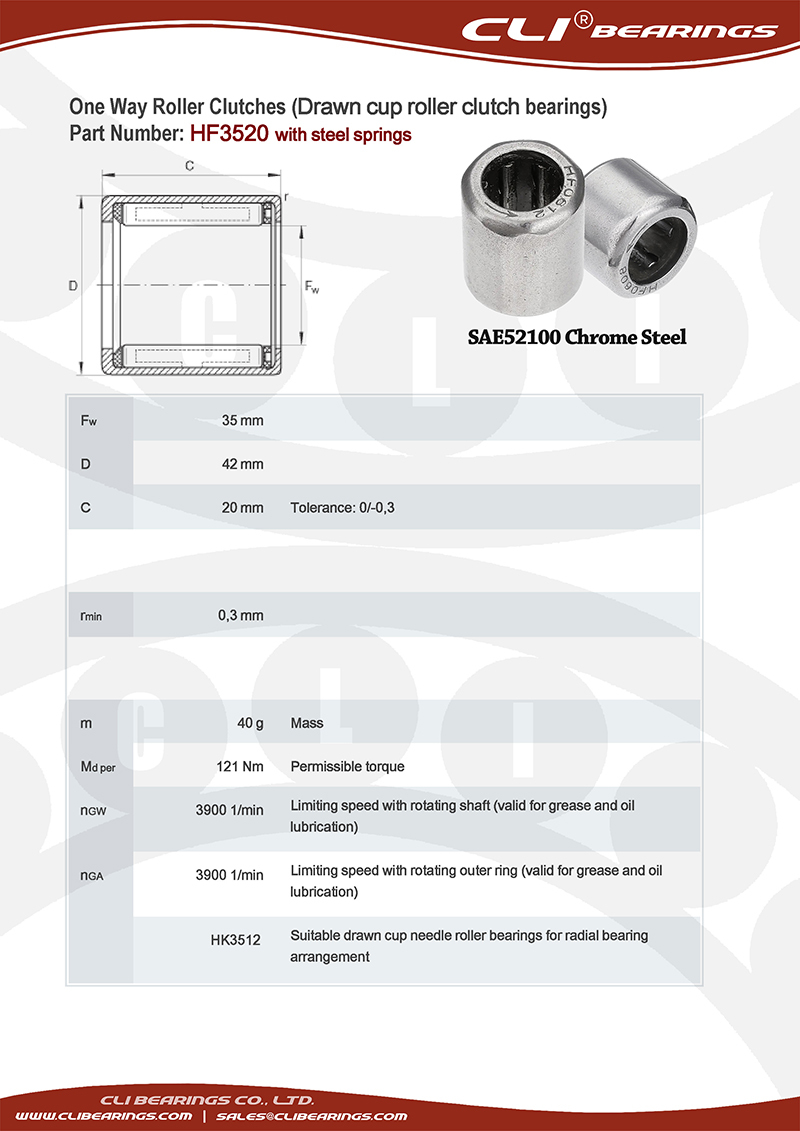

Roller Bearings / HF3520
| Part No.: HF3520 |
| Manufacturer |
CLI BEARINGS CO., LTD. |
| Bearing Type |
One-way Clutch |
| Construction |
Single Row |
| Seal Type |
Open |
| Measurement |
Metric |
| For Shaft Diameter |
35 mm |
| Bore Dia (d) |
35 mm |
| For Housing ID |
42 mm |
| Outer Dia (D) |
42 mm |
| Width (B) |
20 mm |
| Ring Material |
Steel |
| Needle Material |
Steel |
| Cage Material |
Steel |
| Spring Material |
Steel |
| Knurledy |
No |
| Md per |
121 Nm |
| nGW |
3900 1/min |
| nGA |
3900 1/min |
| Lubrication |
Lubricated |
| Shaft Mount Type |
Press Fit |
| Temperature Range |
-30° to 110 °C |
| RoHS |
Compliant |
| Weight (g) |
40 |
| Brand |
Neutral / CLI |
 |
