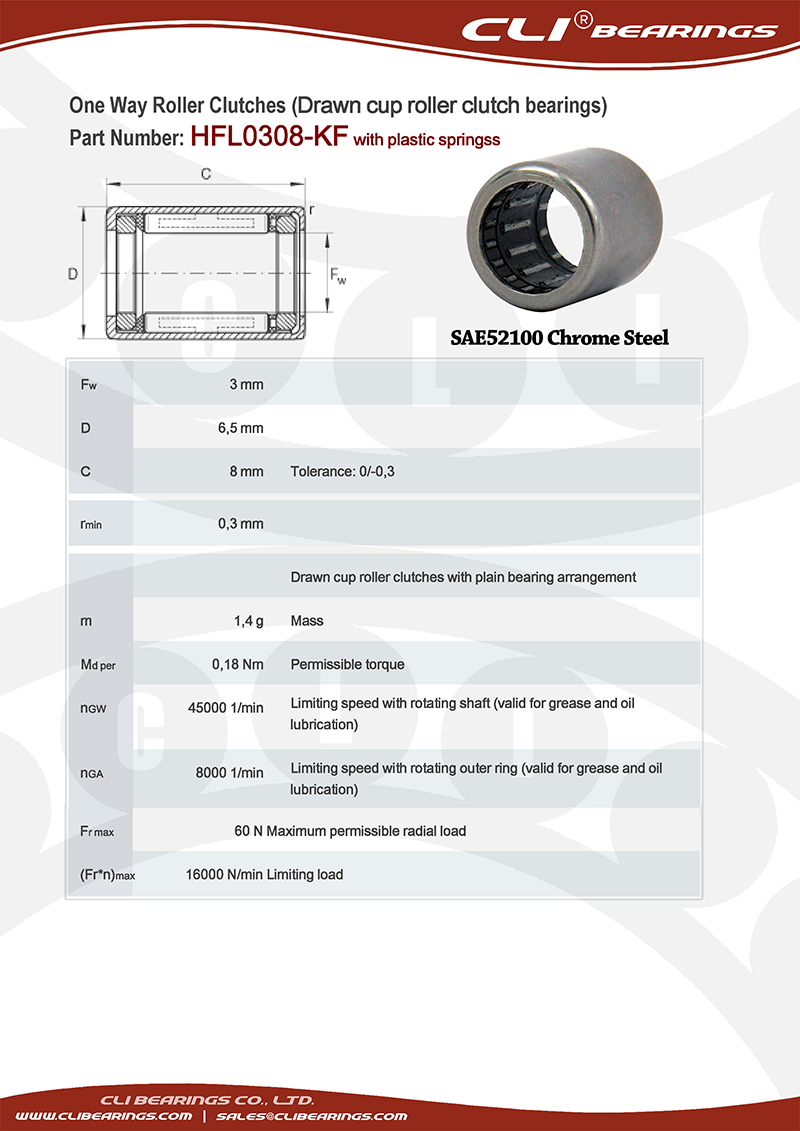

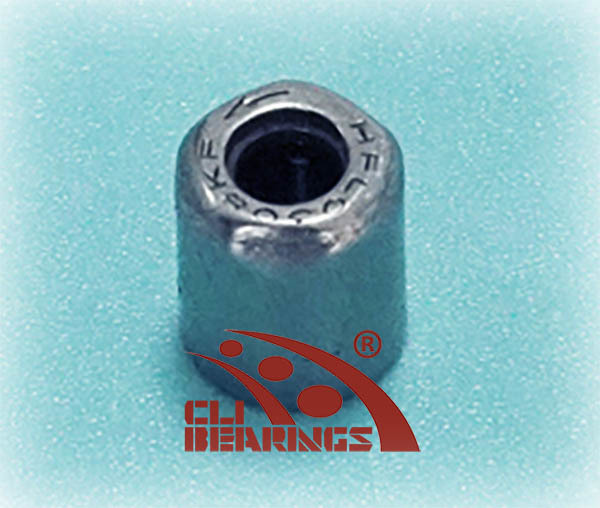

Roller Bearings / HFL0308-KF
| Part No.: HFL0308-KF |
| Manufacturer |
CLI BEARINGS CO., LTD. |
| Bearing Type |
One-way Clutch |
| Seal Type |
Open |
| Construction |
Triple Row |
| For Housing ID (D) |
6.5 mm |
| Shaft Diameter (Fw) |
3 mm |
| Bore Dia (Fw) |
3 mm |
| Outer Dia (D) |
6.5 mm |
| Width (C) |
8 mm |
| Ring Material |
Steel |
| Cage Material |
Steel |
| Needle Material |
Steel |
| Spring Material |
Plastic |
| MAX SPEED |
45000 (RPM) |
| nGA |
8000 1/min |
| Lubrication |
Lubricated |
| RoHS |
Compliant |
| Knurledy |
No |
| Shaft Mount Type |
Press Fit |
| Temperature Range |
-30° to 110 °C |
| Weight |
1.4 |
| Torque Capacity |
0.18 Nm |
| Brand |
Neutral / CLI |
 |
