Roller Bearings-One-Way Clutch Bearings-HFL, HFL-KF, HFL-R, HFL-KF-R ( METRIC )- HFL0408-KF

 Part No.: HFL0408-KF
 Standards  Metric Size
 Bearing Type  One-way Clutch
 Seal Type  Open
 Construction  Triple Row
 For Housing ID  8 mm
 For Shaft Diameter  4 mm
 Bore Dia  4 mm
 Outer Dia  8 mm
 Width  8 mm
 Ring Material  Steel
 Cage Material  Steel
 Needle Material  Steel
 Spring Material  Plastic
 MAX SPEED(RPM)  34000
 nGA  8000 1/min
 Lubrication  Lubricated
 RoHS  Compliant
 Knurledy  No
 Shaft Mount Type  Press Fit
 Temperature Range  -30° to 110 °C
 Weight  1.6
 Torque Capacity  0.34 Nm
 Brand  Neutral / CLI

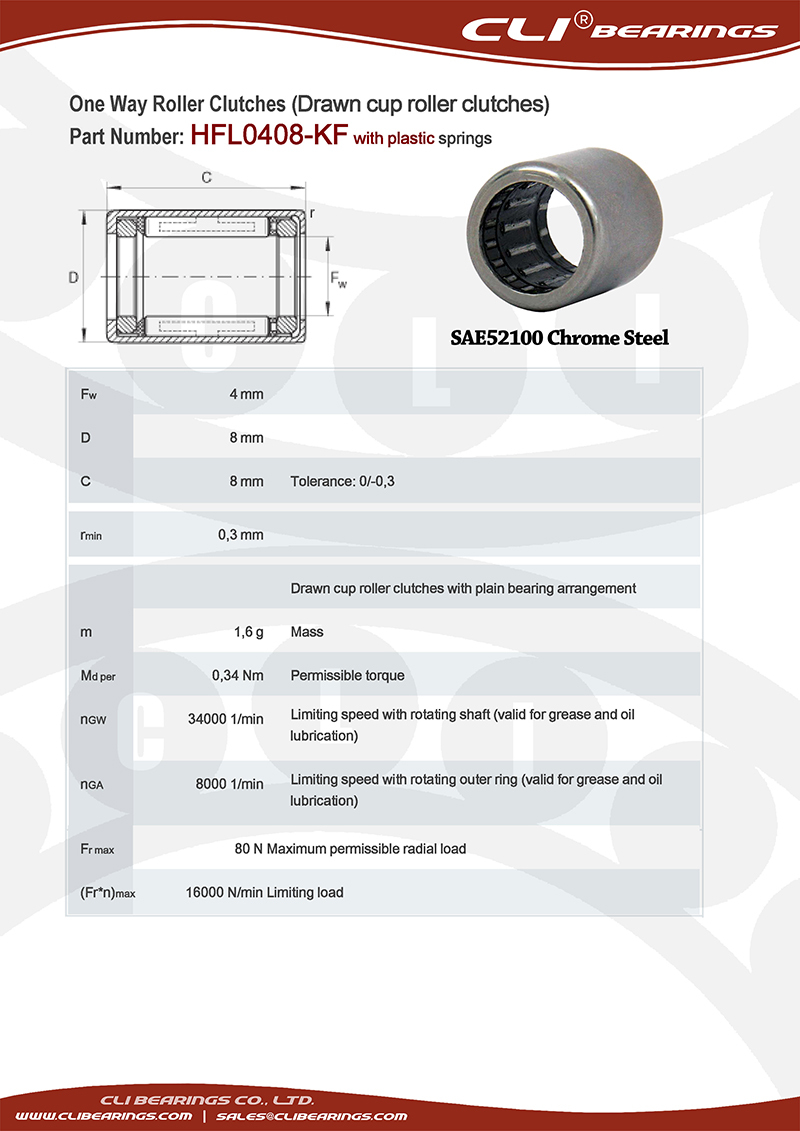

Original hfl0408 kf 4x8x8 mm one way roller clutch bearing with plastic springs   cli bearings co ltd nw
