Roller Bearings-One-Way Clutch Bearings-HFL, HFL-KF, HFL-R, HFL-KF-R ( METRIC )- HFL1022

 Part No.: HFL1022
 Standards  Metric Size
 Bearing Type  One-way Clutch
 Seal Type  Open
 Construction  Triple Row
 For Housing ID  14 mm
 For Shaft Diameter  10 mm
 Bore Dia  10 mm
 Outer Dia  14 mm
 Width  22 mm
 Ring Material  Steel
 Cage Material  Steel
 Needle Material  Steel
 Spring Material  Steel
 MAX SPEED(RPM)  14000
 nGA  11000 1/min
 Lubrication  Lubricated
 RoHS  Compliant
 Knurledy  No
 Shaft Mount Type  Press Fit
 Temperature Range  -30° to 110 °C
 Weight  8
 Torque Capacity  5.3 Nm
 Brand  Neutral / CLI

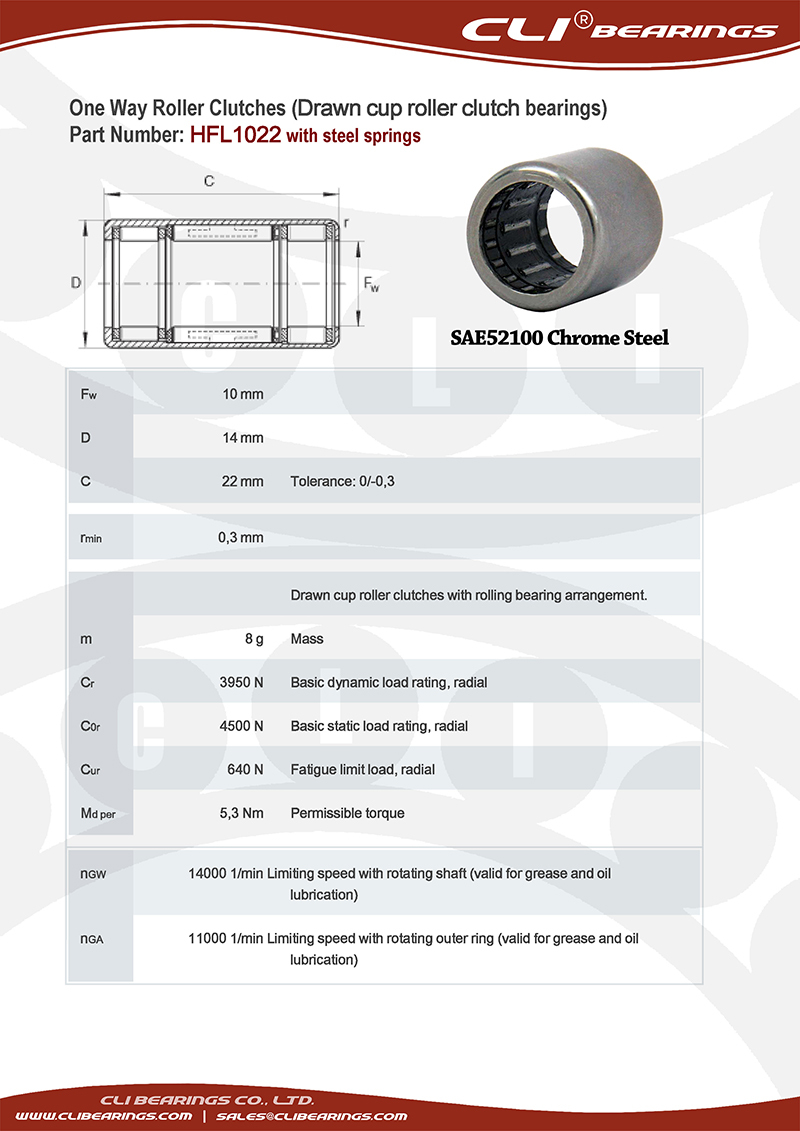

Original hfl1022 10x14x22 mm one way roller clutch bearing with steel springs   cli bearings co ltd nw
