Roller Bearings-One-Way Clutch Bearings-HFL, HFL-KF, HFL-R, HFL-KF-R ( METRIC )- HFL1226

 Part No.: HFL1226
 Standards  Metric Size
 Bearing Type  One-way Clutch
 Seal Type  Open
 Construction  Triple Row
 For Housing ID  18 mm
 For Shaft Diameter  12 mm
 Bore Dia  12 mm
 Outer Dia  18 mm
 Width  26 mm
 Ring Material  Steel
 Cage Material  Steel
 Needle Material  Steel
 Spring Material  Steel
 MAX SPEED(RPM)  11000
 nGA  8000 1/min
 Lubrication  Lubricated
 RoHS  Compliant
 Knurledy  No
 Shaft Mount Type  Press Fit
 Temperature Range  -30° to 110 °C
 Weight  18
 Torque Capacity  12.2 Nm
 Brand  Neutral / CLI

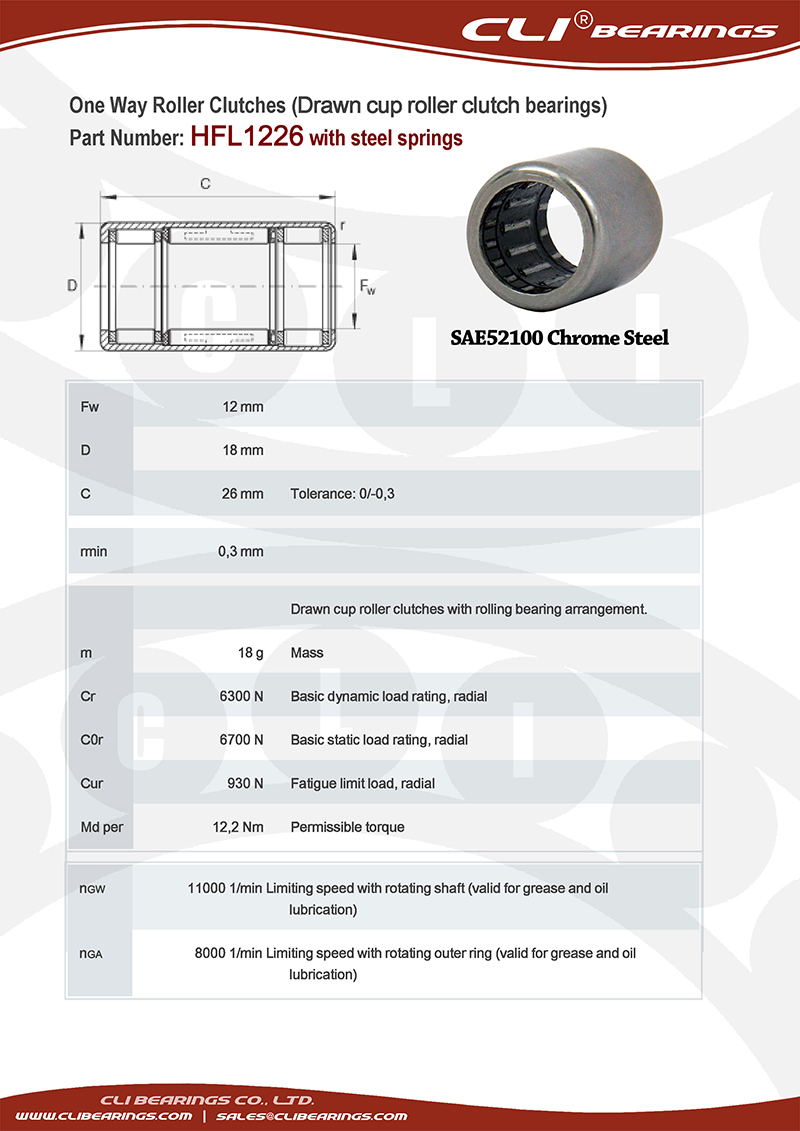

Original hfl1226 12x18x26 mm one way roller clutch bearing with steel springs   cli bearings co ltd nw
