Roller Bearings-One-Way Clutch Bearings-HFL, HFL-KF, HFL-R, HFL-KF-R ( METRIC )- HFL2026

 Part No.: HFL2026
 Standards  Metric Size
 Bearing Type  One-way Clutch
 Seal Type  Open
 Construction  Triple Row
 For Housing ID  26 mm
 For Shaft Diameter  20 mm
 Bore Dia  20 mm
 Outer Dia  26 mm
 Width  26 mm
 Ring Material  Steel
 Cage Material  Steel
 Needle Material  Steel
 Spring Material  Steel
 MAX SPEED(RPM)  7000
 nGA  6500 1/min
 Lubrication  Lubricated
 RoHS  Compliant
 Knurledy  No
 Shaft Mount Type  Press Fit
 Temperature Range  -30° to 110 °C
 Weight  27
 Torque Capacity  28.5 Nm
 Brand  Neutral / CLI

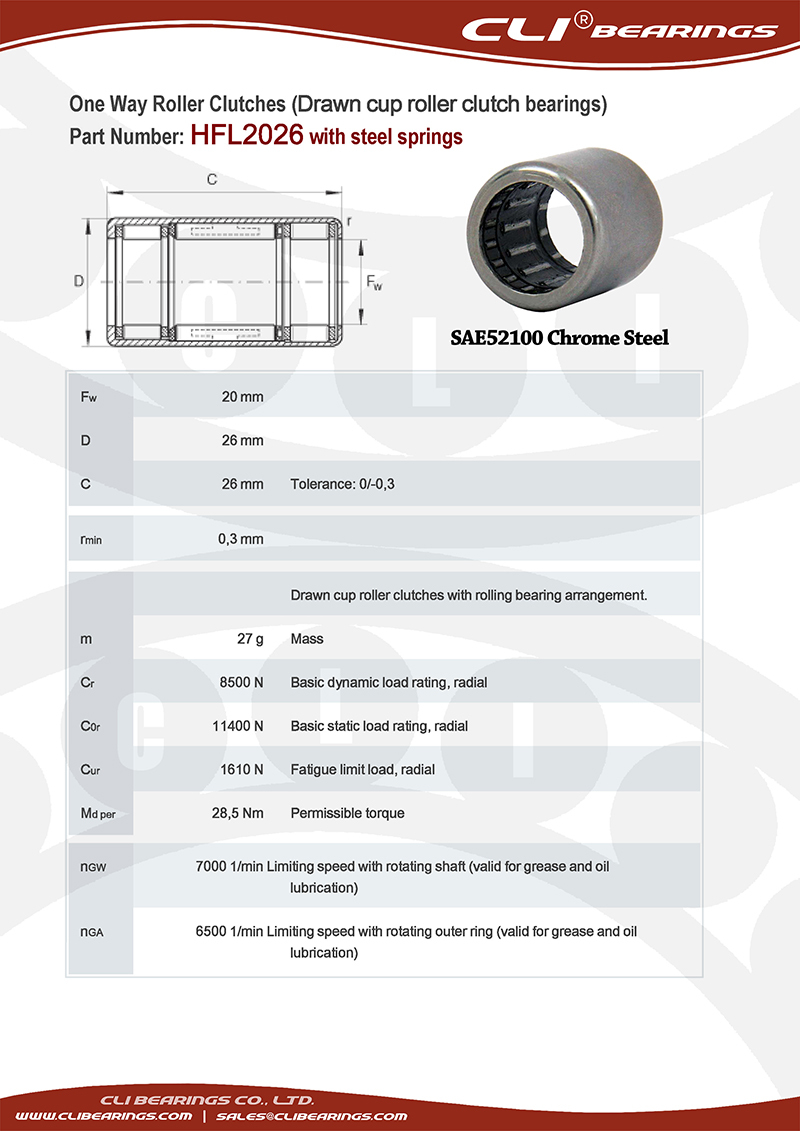

Original hfl2026 20x26x26 mm one way roller clutch bearing with steel springs   cli bearings co ltd nw
