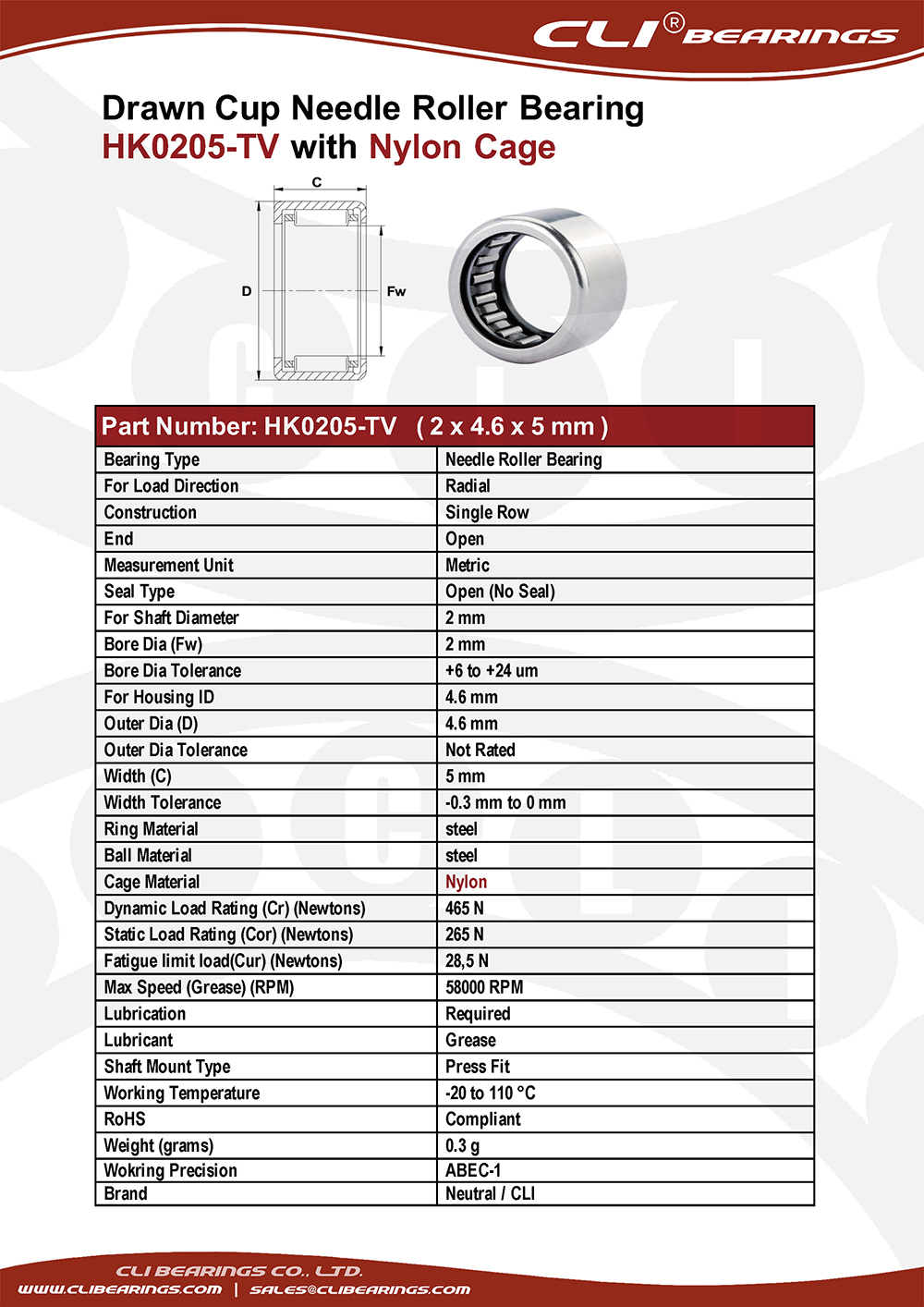

Roller Bearings-Needle Roller Bearings-HK drawn cup needle roller bearing with OPEN end, chrome steel AISI52100, METRIC SIZE- HK0205-TV

 Part Number: HK0205-TV  (2x4.6x5 mm)
 Bearing Type  Needle Roller Bearing
 For Load Direction  Radial
 Construction  Single Row
 End  Open
 Measurement Unit  Metric
 Seal Type  Open (No Seal)
 For Shaft Diameter  2 mm
 Bore Dia (Fw)  2 mm
 Bore Dia Tolerance  +6 to +24 um
 For Housing ID  4.6 mm
 Outer Dia (D)  4.6 mm
 Outer Dia Tolerance  Not Rated
 Width (C)  5 mm
 Width Tolerance  -0.3 mm to 0 mm
 Ring Material  steel
 Ball Material  steel
 Cage Material  Nylon
 Dynamic Load Rating (Cr) (Newtons)  465 N
 Static Load Rating (Cor) (Newtons)  265 N
 Fatigue limit load(Cur) (Newtons)  28,5 N
 Max Speed (Grease) (RPM)  58000 RPM
 Lubrication  Required
 Lubricant  Grease
 Shaft Mount Type  Press Fit
 Working Temperature  -20 to 110 °C
 RoHS  Compliant
 Weight (grams)  0.3 g
 Wokring Precision  ABEC-1
 Brand  Neutral / CLI
Original hk0205 tv 2x4 6x5 mm drawn cup needle roller bearings cli bearings co ltd nw
