Roller Bearings-Needle Roller Bearings-HK drawn cup needle roller bearing with OPEN end, chrome steel AISI52100, METRIC SIZE- HK0306TN

 Part No.: HK0306TN   (3x6.5x6 mm)
 Standards  Metric Size
 Bearing Type  Needle Roller Bearing
 Seal Type  Open
 Number of Row (s)  Single Row
 Load Direction  Radial
 Bore Dia (d)  3 mm
 Bore Dia Tolerance  +6 ~ +24 μm
 For Housing ID  6.5 mm
 Outer Dia (D)  6.5 mm
 Outer Dia Tolerance  Not Rated
 Width (B)  6 mm
 Width Tolerance  -0.3 mm to 0 mm
 Ring Material  Steel
 Ball Material  Steel
 Cage Material  Nylon
 Dynamic Load Rating (Cr) (Newtons)  1230 N
 Static Load Rating (Cor) (Newtons)  840 N
 Fatigue limit load(Cur) (Newtons)  85 N
 Max Speed (Grease) (RPM)  48000 RPM
 Lubrication  Required
 Lubricant  Grease
 Shaft Mount Type  Press Fit
 Working Temperature  -20 to 110 °C
 RoHS  Compliant
 Weight (grams)  1.0 g
 Wokring Precision  ABEC-1
 Brand  Neutral / CLI

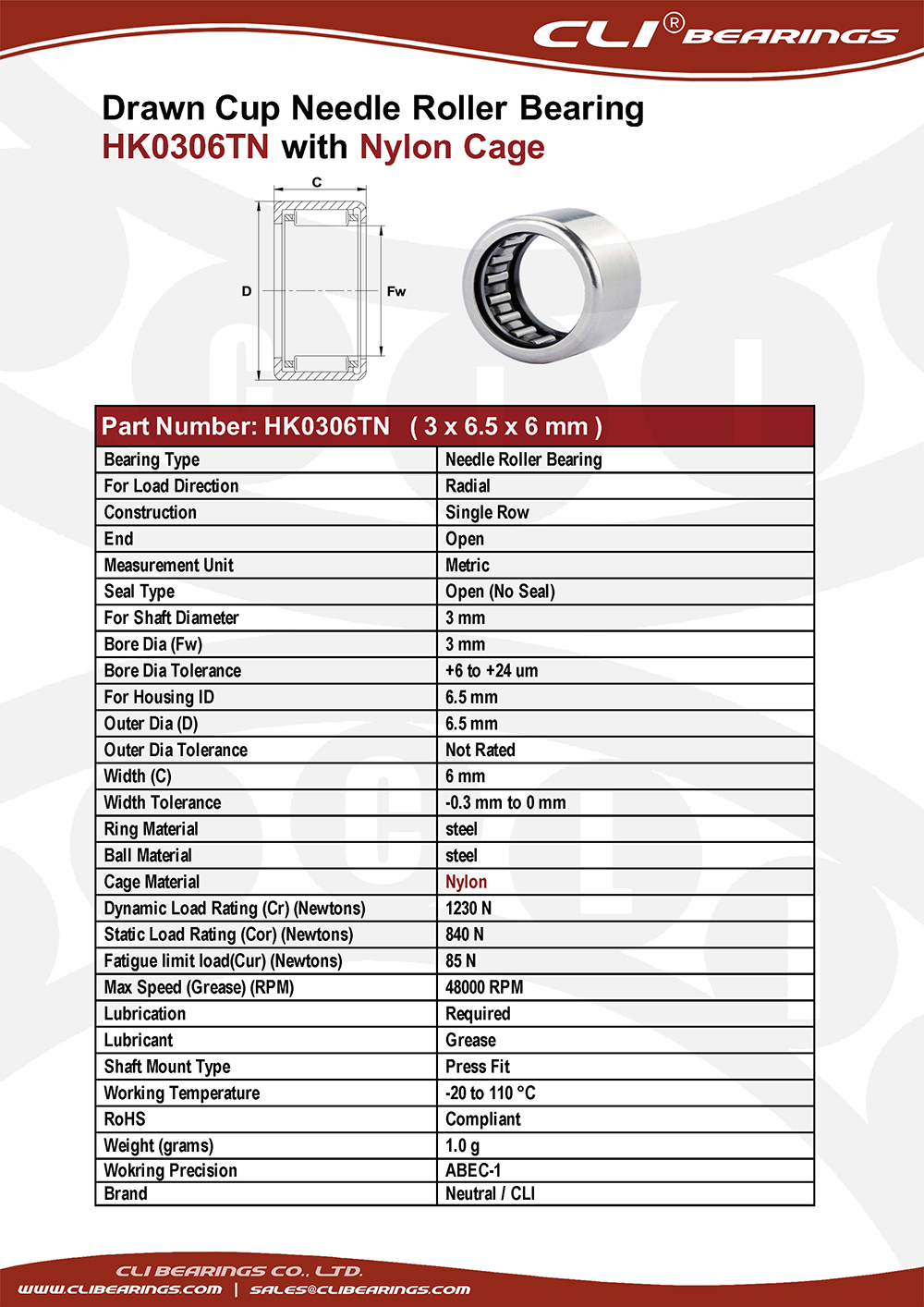

Original hk0306tn 3x6 5x6 mm drawn cup needle roller bearings cli bearings co ltd nw
