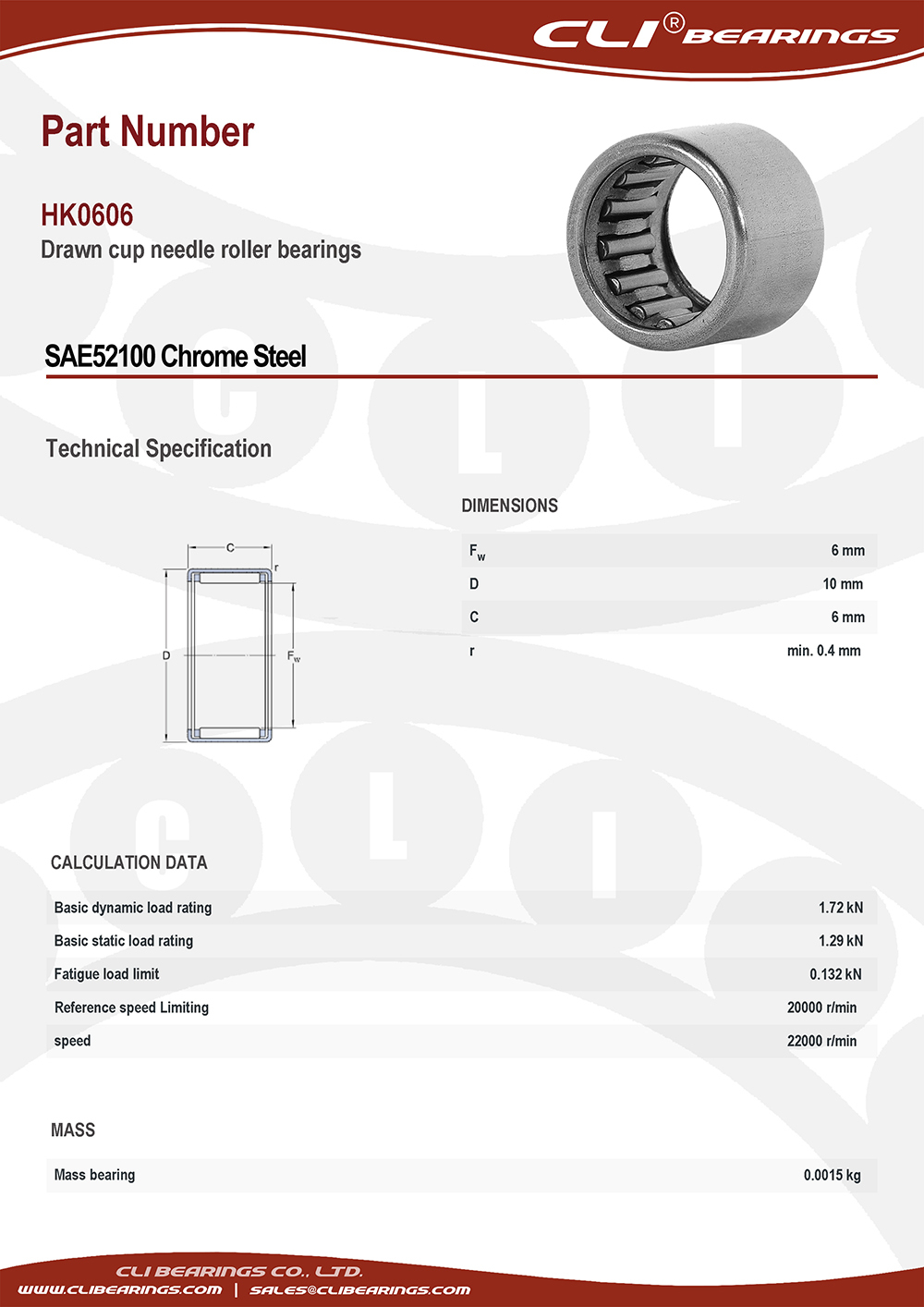

Roller Bearings-Needle Roller Bearings-HK drawn cup needle roller bearing with OPEN end, chrome steel AISI52100, METRIC SIZE- HK0606

 Part No.: HK0606
 Standards  Metric Size
 Bearing Type  Needle Roller Bearing
 Seal Type  Open
 Number of Row (s)  Single Row
 Load Direction  Radial
 Bore Dia (d)  6mm
 Bore Dia Tolerance  +10 to +28 μm
 For Housing ID  10mm
 Outer Dia (D)  10mm
 Outer Dia Tolerance   Not Rated
 Width (B)  6mm
 Width Tolerance  -0.3mm to 0mm
 Ring Material  steel
 Ball Material  steel
 Cage Material  steel
 Dynamic Load Rating (Cr) (Newtons)  1610 N
 Static Load Rating (Cor) (Newtons)  1220 N
 Fatigue limit load(Cur) (Newtons)  167 N
 Max Speed (Grease) (RPM)  36500
 Lubrication  Required
 Lubricant  Grease
 Shaft Mount Type  Press Fit
 Working Temperature  -20 to 110 °C
 RoHS  Compliant
 Weight (grams)  1.5
 Wokring Precision  ABEC-1
 Brand  Neutral / CLI
Original hk0606 drawn cup needle roller bearings 6x10x6 mm cli bearings co ltd nw
