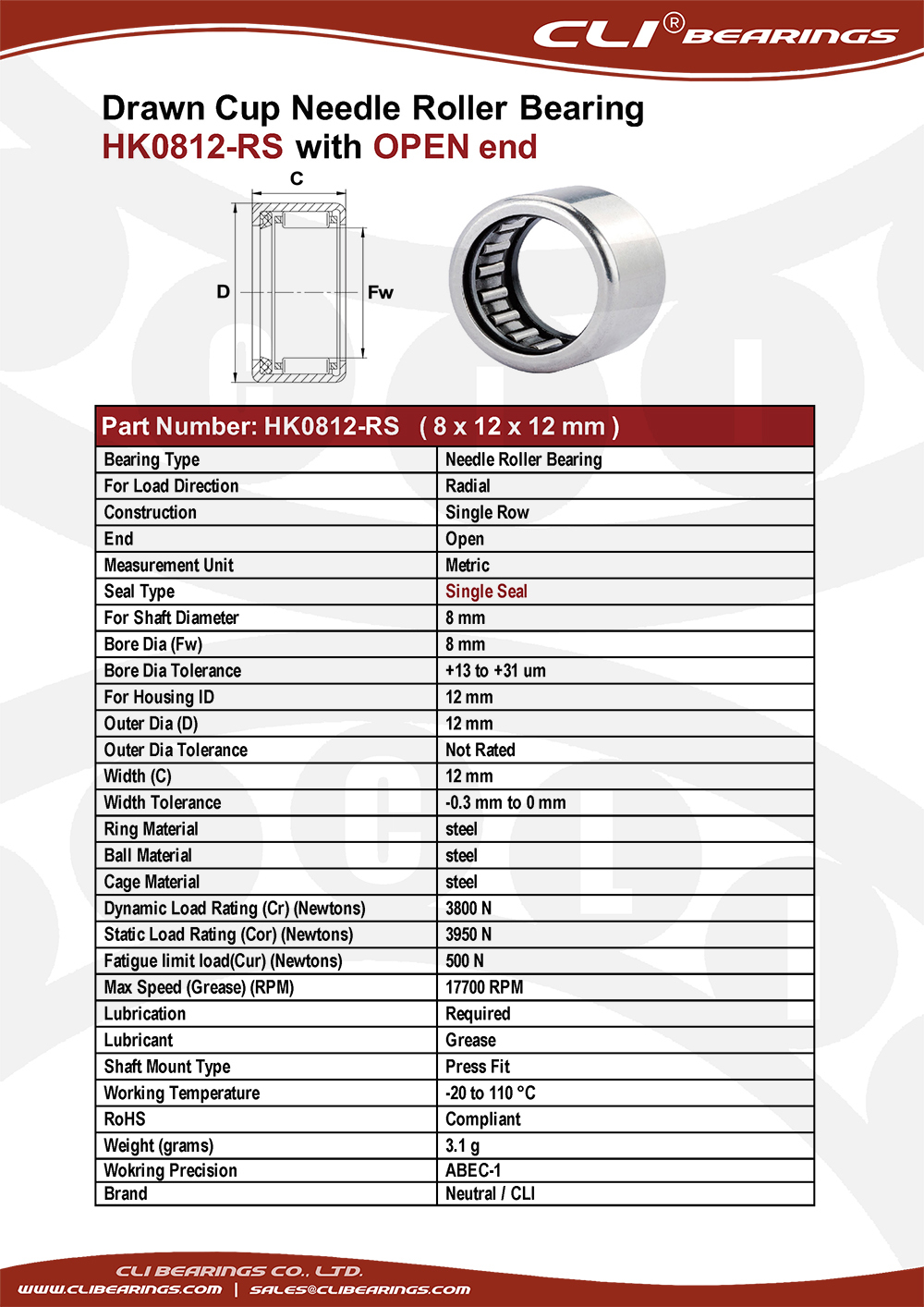

Roller Bearings-Needle Roller Bearings-HK drawn cup needle roller bearing with OPEN end, chrome steel AISI52100, METRIC SIZE- HK0812-RS

 Part Number: HK0812-RS  (8x12x12 mm)
 Bearing Type  Needle Roller Bearing
 For Load Direction  Radial
 Construction  Single Row
 End  Open
 Measurement Unit  Metric
 Seal Type  Single Seal
 For Shaft Diameter  8 mm
 Bore Dia (Fw)  8 mm
 Bore Dia Tolerance  +13 to +31 um
 For Housing ID  12 mm
 Outer Dia (D)  12 mm
 Outer Dia Tolerance  Not Rated
 Width (C)  12 mm
 Width Tolerance  -0.3 mm to 0 mm
 Ring Material  steel
 Ball Material  steel
 Cage Material  steel
 Dynamic Load Rating (Cr) (Newtons)  3800 N
 Static Load Rating (Cor) (Newtons)  3950 N
 Fatigue limit load(Cur) (Newtons)  500 N
 Max Speed (Grease) (RPM)  17700 RPM
 Lubrication  Required
 Lubricant  Grease
 Shaft Mount Type  Press Fit
 Working Temperature  -20 to 110 °C
 RoHS  Compliant
 Weight (grams)  3.1 g
 Wokring Precision  ABEC-1
 Brand  Neutral / CLI
Original hk0812 rs 8x12x12 mm drawn cup needle roller bearings cli bearings co ltd nw
