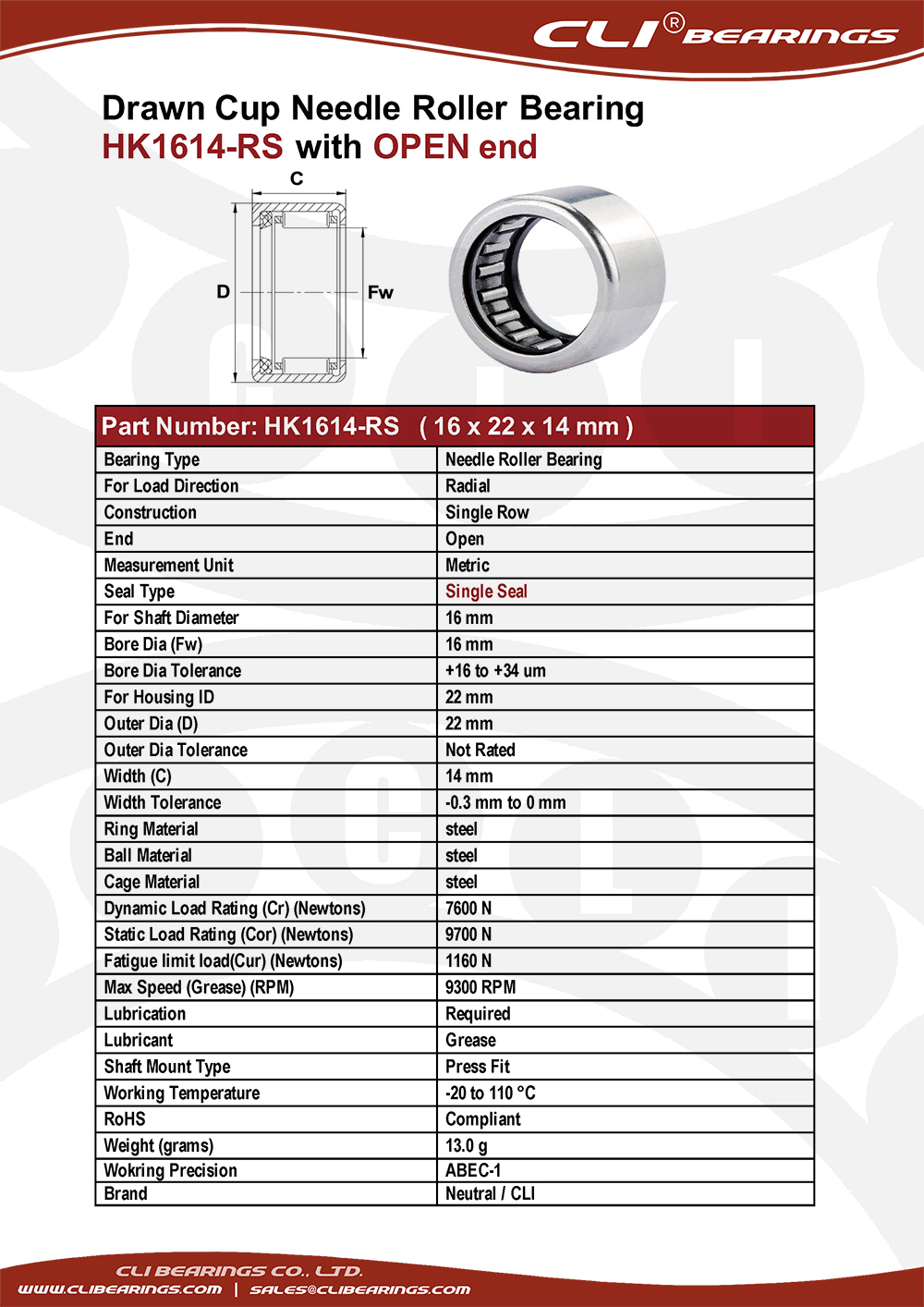

Roller Bearings-Needle Roller Bearings-HK drawn cup needle roller bearing with OPEN end, chrome steel AISI52100, METRIC SIZE- HK1614-RS

 Part Number: HK1614-RS   (16x22x 14 mm)
 Bearing Type  Needle Roller Bearing
 For Load Direction  Radial
 Construction  Single Row
 End  Open
 Measurement Unit  Metric
 Seal Type  Single Seal
 For Shaft Diameter  16 mm
 Bore Dia (Fw)  16 mm
 Bore Dia Tolerance  +16 to +34 um
 For Housing ID  22 mm
 Outer Dia (D)  22 mm
 Outer Dia Tolerance  Not Rated
 Width (C)  14 mm
 Width Tolerance  -0.3 mm to 0 mm
 Ring Material  steel
 Ball Material  steel
 Cage Material  steel
 Dynamic Load Rating (Cr) (Newtons)  7600 N
 Static Load Rating (Cor) (Newtons)  9700 N
 Fatigue limit load(Cur) (Newtons)  1160 N
 Max Speed (Grease) (RPM)  9300 RPM
 Lubrication  Required
 Lubricant  Grease
 Shaft Mount Type  Press Fit
 Working Temperature  -20 to 110 °C
 RoHS  Compliant
 Weight (grams)  13.0 g
 Wokring Precision  ABEC-1
 Brand  Neutral / CLI
