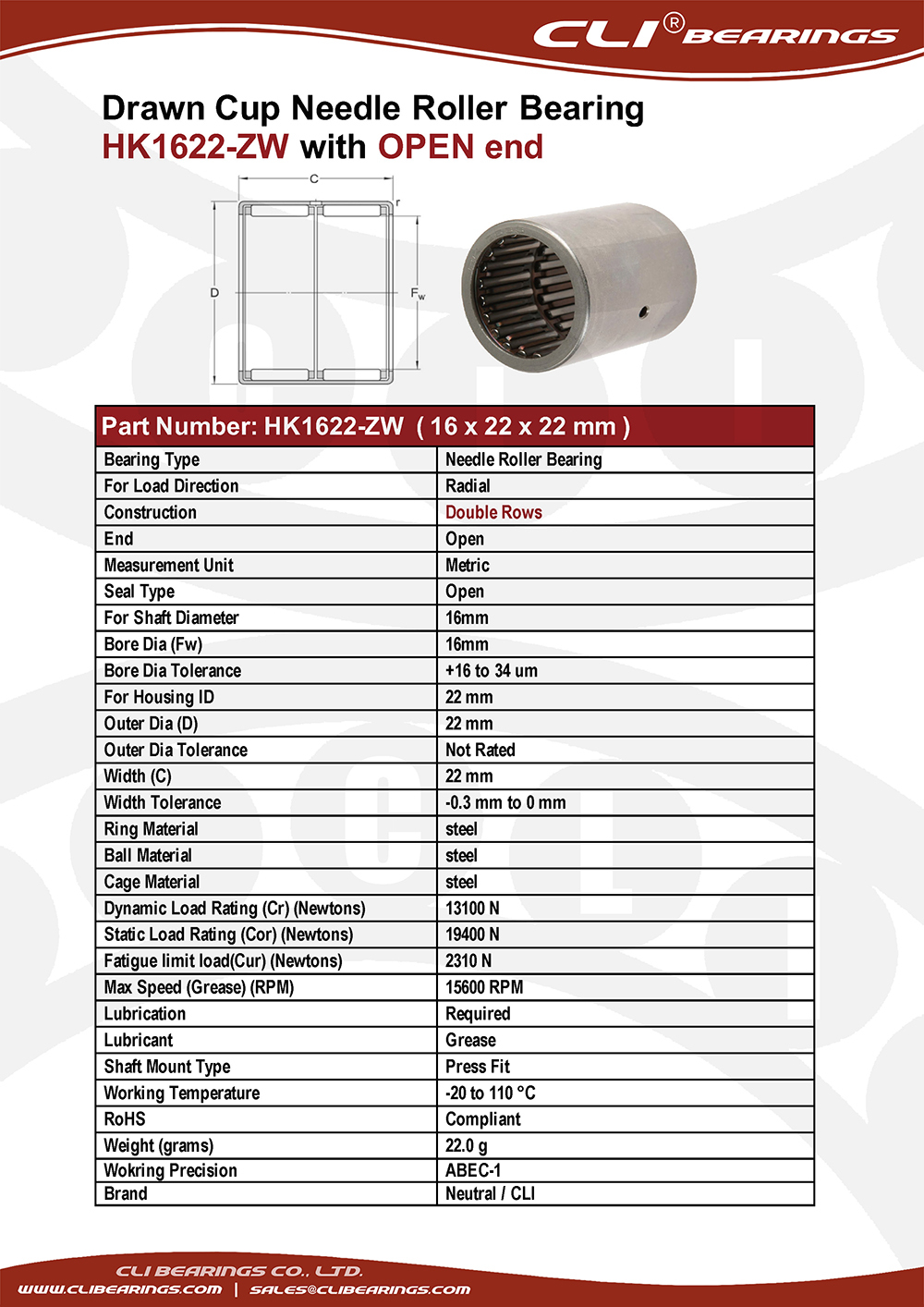

Roller Bearings-Needle Roller Bearings-HK drawn cup needle roller bearing with OPEN end, chrome steel AISI52100, METRIC SIZE- HK1622-ZW

 Part Number: HK1622-ZW  ( 16 x 22 x 22 mm )
 Bearing Type  Needle Roller Bearing
 For Load Direction  Radial
 Construction  Double Rows
 End  Open
 Measurement Unit  Metric
 Seal Type  Open
 For Shaft Diameter  16mm
 Bore Dia (Fw)  16mm
 Bore Dia Tolerance  +16 to 34 um
 For Housing ID  22 mm
 Outer Dia (D)  22 mm
 Outer Dia Tolerance  Not Rated
 Width (C)  22 mm
 Width Tolerance  -0.3 mm to 0 mm
 Ring Material  steel
 Ball Material  steel
 Cage Material  steel
 Dynamic Load Rating (Cr) (Newtons)  13100 N
 Static Load Rating (Cor) (Newtons)  19400 N
 Fatigue limit load(Cur) (Newtons)  2310 N
 Max Speed (Grease) (RPM)  15600 RPM
 Lubrication  Required
 Lubricant  Grease
 Shaft Mount Type  Press Fit
 Working Temperature  -20 to 110 °C
 RoHS  Compliant
 Weight (grams)  22.0 g
 Wokring Precision  ABEC-1
 Brand  Neutral / CLI
Original hk1622 zw drawn cup needle roller bearings 16x22x22 mm cli bearings co ltd nw
