Roller Bearings-Needle Roller Bearings-HK drawn cup needle roller bearing with OPEN end, chrome steel AISI52100, METRIC SIZE- HK2220-2RS

 Part No.: HK2220-2RS
 Standards  Metric Size
 Bearing Type  Needle Roller Bearing
 Seal Type  Open
 Number of Row (s)  Single Row
 Load Direction  Radial
 Bore Dia (d)  22mm
 Bore Dia Tolerance  +20 to +41 um
 For Housing ID  28mm
 Outer Dia (D)  28mm
 Outer Dia Tolerance  Not Rated
 Width (B)  20mm
 Width Tolerance  -0.3mm to 0mm
 Ring Material  steel
 Ball Material  steel
 Cage Material  steel
 Dynamic Load Rating (Cr) (Newtons)  13400 N
 Static Load Rating (Cor) (Newtons)  22100 N
 Fatigue limit load(Cur) (Newtons)  2800 N
 Max Speed (Grease) (RPM)  7000
 Lubrication  Required
 Lubricant  Grease
 Shaft Mount Type  Press Fit
 Working Temperature  -20 to 110 °C
 RoHS  Compliant
 Weight (grams)  26.0
 Wokring Precision  ABEC-1
 Brand  Neutral / CLI

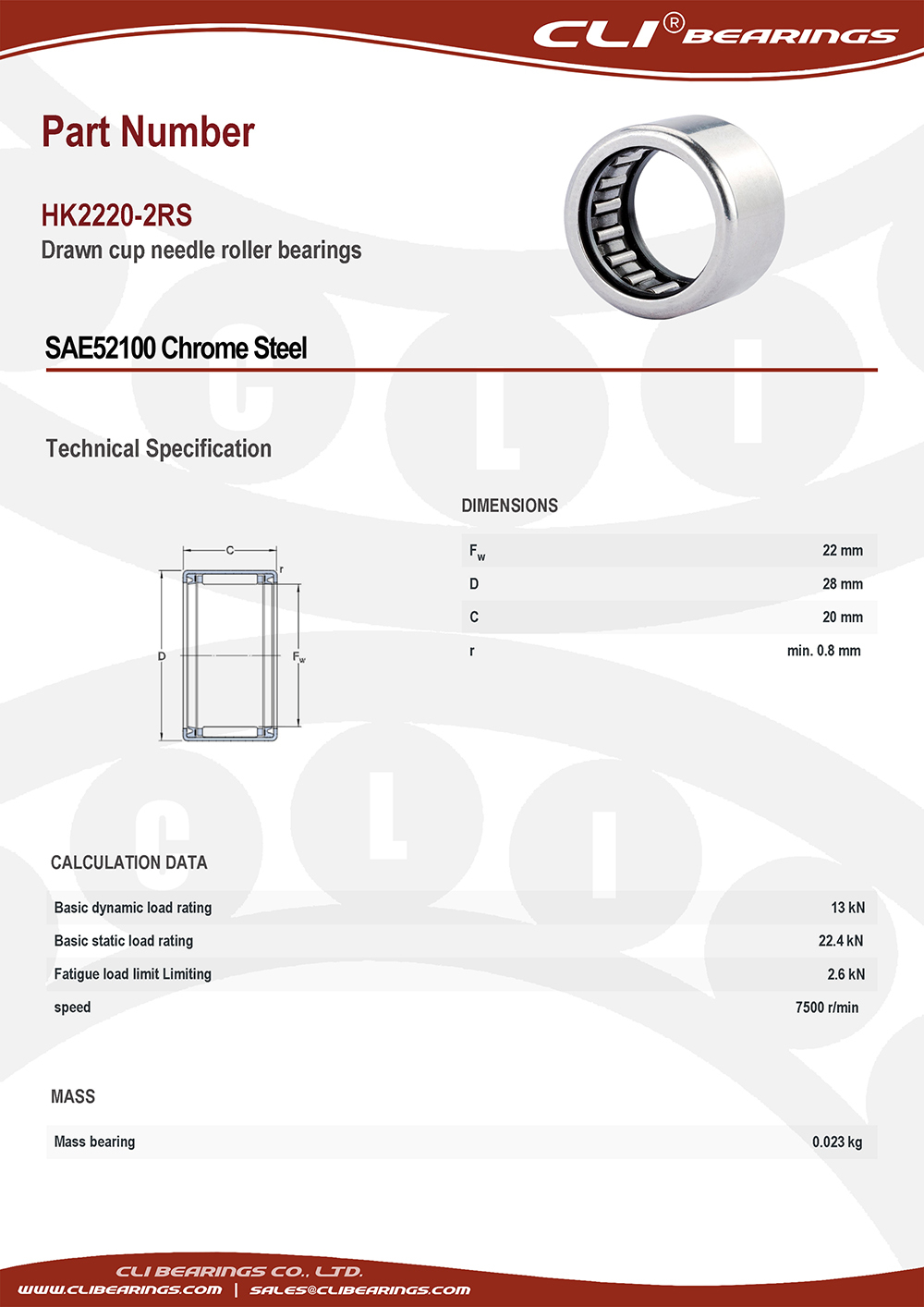

Original hk2220 2rs drawn cup needle roller bearings 22x28x20 mm cli bearings co ltd nw
