Roller Bearings-Needle Roller Bearings-HK drawn cup needle roller bearing with OPEN end, chrome steel AISI52100, METRIC SIZE- HK2520-2RS

 Part No.: HK2520-2RS
 Standards  Metric Size
 Bearing Type  Needle Roller Bearing
 Seal Type  Open
 Number of Row (s)  Single Row
 Load Direction  Radial
 For Shaft Diameter  25mm
 Bore Dia (d)  25mm
 Bore Dia Tolerance  +20 to +41 um
 For Housing ID  32mm
 Outer Dia (D)  32mm
 Outer Dia Tolerance  Not Rated
 Width (B)  20mm
 Width Tolerance  -0.3mm to 0mm
 Ring Material  steel
 Ball Material  steel
 Cage Material  steel
 Dynamic Load Rating (Cr) (Newtons)  15600 N
 Static Load Rating (Cor) (Newtons)  24000 N
 Fatigue limit load(Cur) (Newtons)  3150 N
 Max Speed (Grease) (RPM)  6100 RPM
 Lubrication  Required
 Lubricant  Grease
 Shaft Mount Type  Press Fit
 Working Temperature  -20 to 110 °C
 RoHS  Compliant
 Weight (grams)  31.0 g
 Wokring Precision  ABEC-1
 Brand  Neutral / CLI

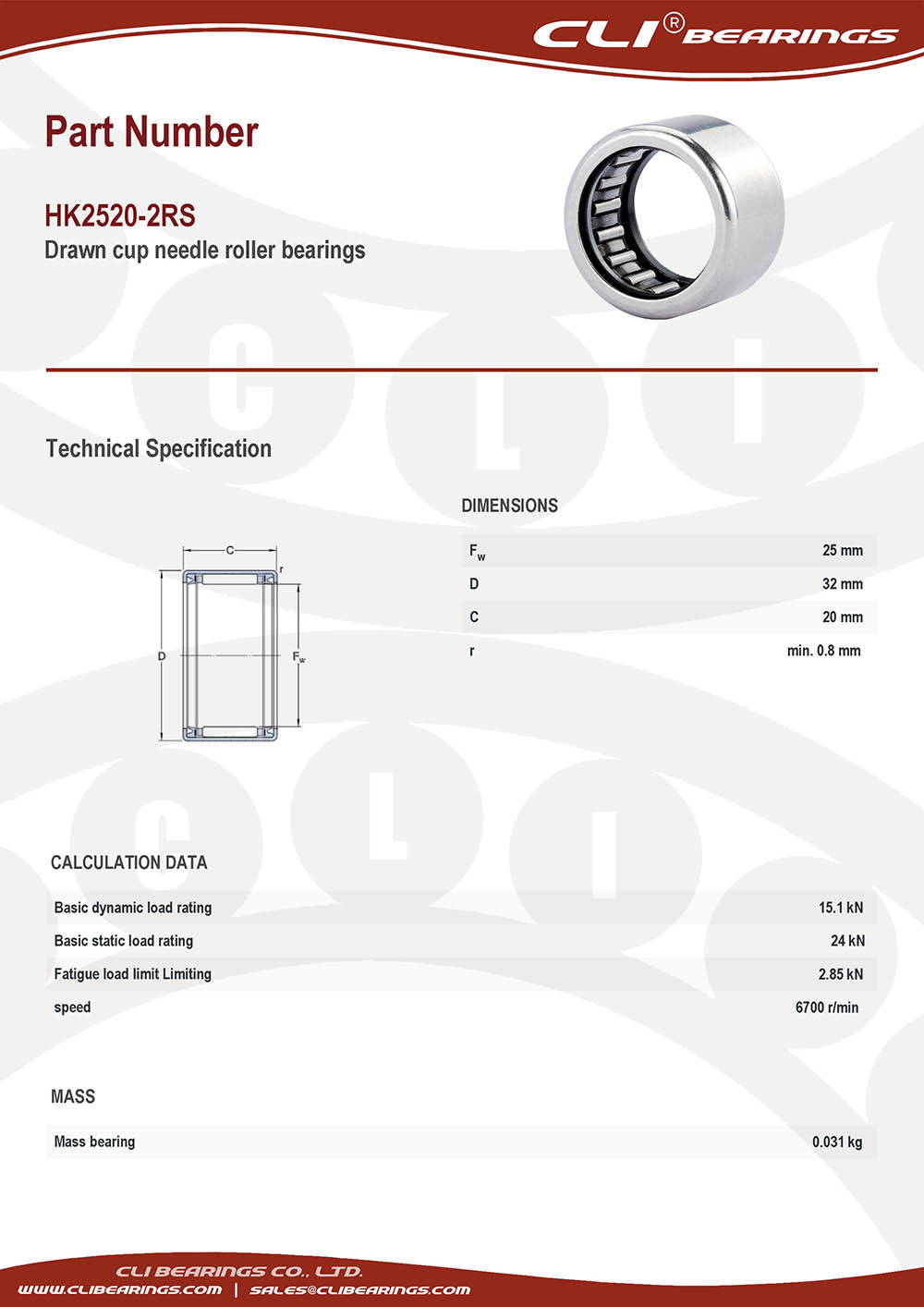

Original hk2520 2rs drawn cup needle roller bearings 25x32x20 mm cli bearings co ltd nw pdf
